Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50) Fornecedores

Página inicial / Produtos / Componentes de vácuo / Ventosa a vácuo / Ventosa a vácuo série ZP com anel de travamento, adaptador e suporte de amortecedor / Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50)

Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50) Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50)
  • Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50)
  • Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50)
Ventosa a vácuo série ZP com anel de travamento, adaptador e suporte de amortecedor

Ventosa a vácuo série ZP com anel elástico, adaptador e suporte amortecedor (Ø9 ~ Ø50)

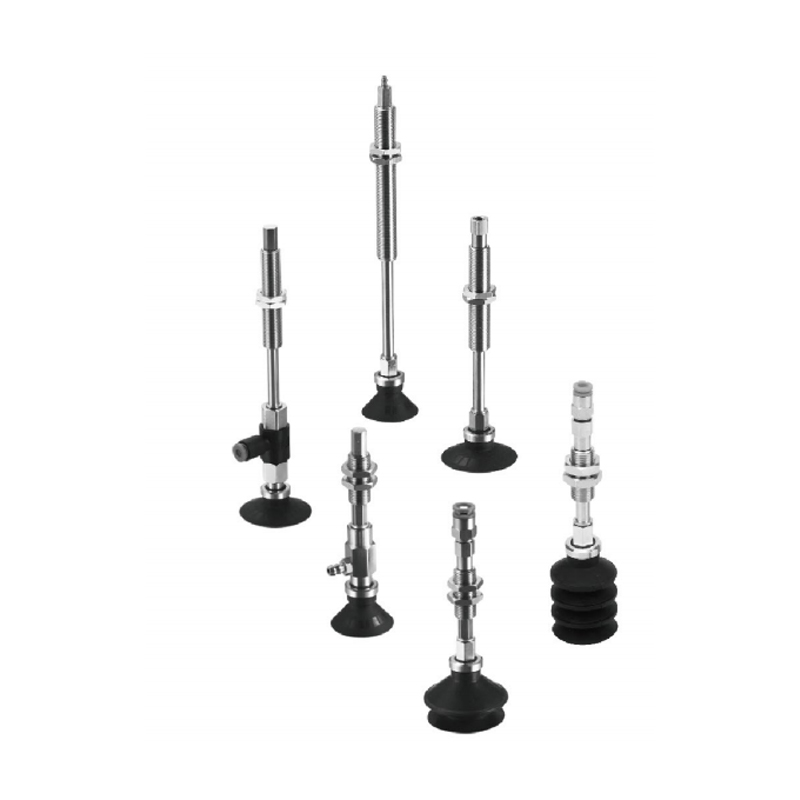

A ventosa a vácuo da série ZP com anel elástico, adaptador e suporte de amortecedor (Ø9 ~ Ø50) é um conjunto de ventosa a vácuo com mecanismo de anel de travamento integrado e função de amortecedor, que é adequado para ventosas de várias especificações (Ø9 ~ Ø50) para obter aderência estável e proteção da peça de trabalho.

Recursos principais
1. Design de travamento e anti-queda: O anel de travamento mecânico integrado aperta automaticamente a ventosa para evitar queda acidental causada por flutuações de pressão negativa.
2. Estrutura de amortecedor flexível: O elemento elástico embutido absorve o impacto de contato da peça de trabalho e reduz o risco de danos à superfície de precisão.
3. Interface de adaptador modular: A interface padronizada de rosca/mudança rápida é compatível com sistemas de vácuo convencionais e suporta substituição rápida de especificações de ventosa.
4. Layout fino e compacto: O design de baixa altura de instalação é adequado para layout de espaço pequeno e otimiza a carga final do braço do robô.
5. Ampla gama de cobertura de condições de trabalho: Adequado para condições convencionais de pressão negativa, compatível com o manuseio de materiais não porosos, como metal/vidro/plástico.

E-mail: manager@cktworld.com
Baixar
ANTERIOR：Sem artigo anterior
PRÓXIMO：Ventosa a vácuo série ZP com anel de travamento (Ø9~Ø50)

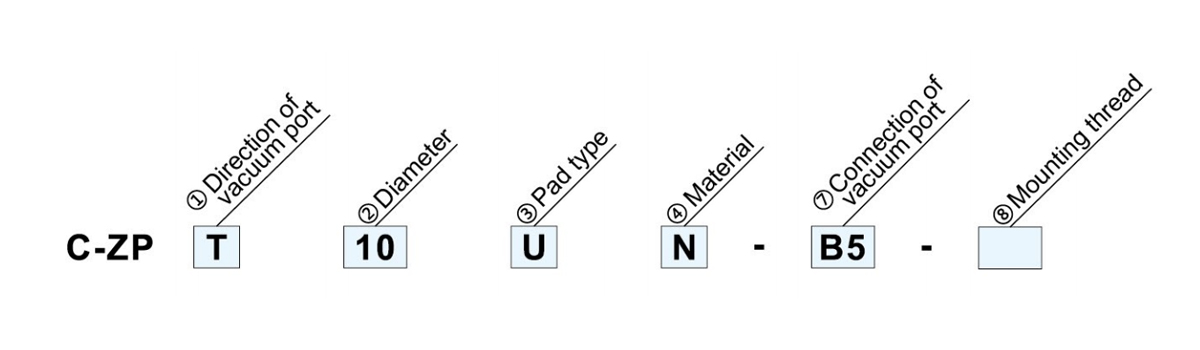

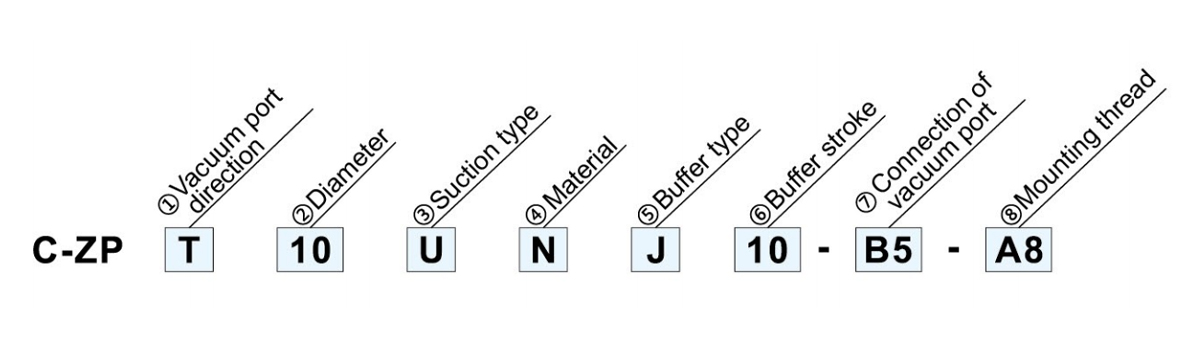

  • ④Material□ ② Diâmetro（mm）○/③Tipo de sucção☆ E* Merda* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silicone Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Plano - ● ● - ● ● ● - ● ● ●
    C Com costela - ● ● - ● ● ● - ● ● ●
    D Profundo - ● - - ● - ● - - ● -

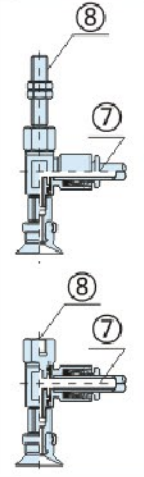

    ①Direção de
    porta de vácuo         		B 2   Foles - ● ● - ● ● ● - ● ● ●
    J 3/4 Fole ● - - ● ● - ● ● - - -

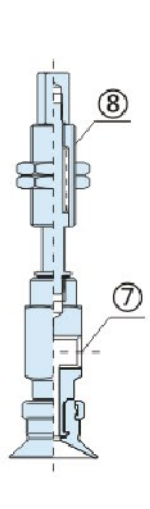

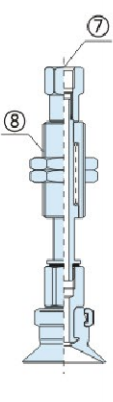

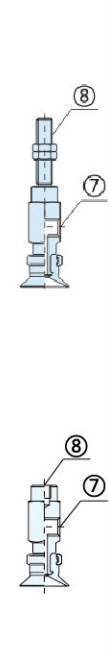

    T Verticais ⑦Conexão da porta de vácuo Rosca externa A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1,0 - ● ●
    A01 R1/8 ● ● ●
    Tópico interno B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●
    B01 Tc1/8 ● ● ●
    R Laterais Conector rápido 04 Ø4 ● ●
    06 Ø6 ● ● ●
    08 Ø8 - ○ ●
    ⑧Linha de montagem Rosca externa A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1,0 - ● ·
    Conversa interna B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●
    Y ⑦ Conexão da porta de vácuo◇ B5 M5×0,8 ● ● ●
    Ajuste de farpa U4 Mangueira φ4 PU  ● ● -
    N4 Mangueira de náilon φ4 ● ● -
    U6 Mangueira φ6 PU  ● ● ●
    N6 φ6 Mangueira de náilon ● ● ●
    Conector rápido hexagonal externo 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ●
    Conector rápido hexagonal interno 03S Ø3 ● - -

    23S

    		Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧ Linha de montagem Externo
    tópico     		A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1,0 - ● ●
    Rosca interna B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●

    As ventosas são componentes de borracha e o envelhecimento é inevitável. A taxa de envelhecimento depende de fatores como métodos de uso, ambiente e condições de temperatura. A manutenção regular deve ser realizada. Se ocorrer algum dano, rachadura, rachadura ou desgaste, a ventosa deve ser substituída imediatamente. Ao substituir a ventosa, não danifique sua superfície externa.

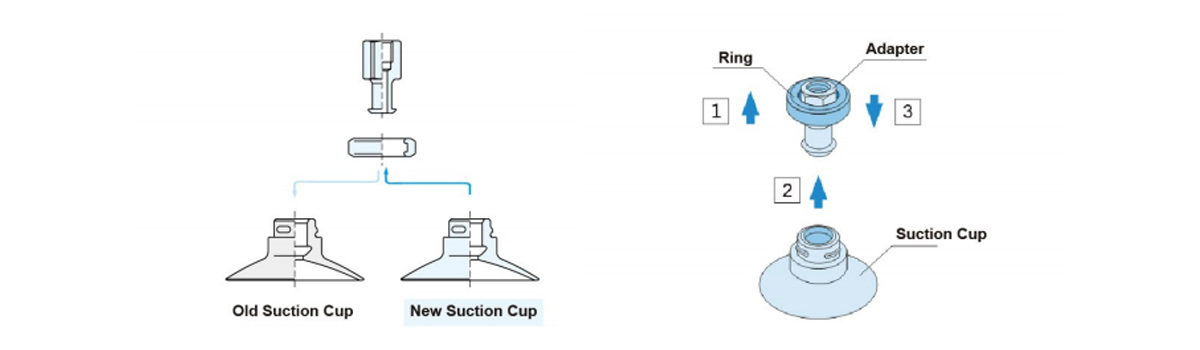

    ETAPA:

    1. Tire o anel.
    2. Retire o adaptador.
    3. Fixe a nova ventosa com o anel e depois insira o adaptador com a nova ventosa.

    ④Material□ ②Diâmetro(mm)○/③Tipo de sucção☆ E* Merda* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silicone Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Plano - ● ● - ● ● ● - ● ● ●
    ⑤ Tipo de buffer     ● C Com Costela - ● ● - ● ● ● - ● ● ●
    J Rotativo D Profundo ● - - ● - ● - - ● -
    K Não é possível girar B 2 Fole ● ● - ● ● ● - ● ● ●
    J 3/4 Fole ● - - ● ● - · ● - - -
    ⑥Curso de buffer■ 10 10   mm ● ● ●
    20 20   mm ● ● ●
    30 30   mm ● ● ●
    ①Conexão da porta de vácuo 40 40   mm ● ● -
    50 50   mm ● ● ●
    T Verticais ⑦Conexão da porta de vácuo◇ Rosca interna B5 M5×0,8 ● ● ●
    B01 Tc1/8 - - ●
    Encaixe de farpa U4 中4 mangueira PU ● - -
    N4 φ4 Mangueira de náilon ● - -
    U6 Mangueira φ6 PU  ● ● ●
    N6 中6 Mangueira de náilon ● ● ●
    Conector rápido hexagonal externo 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●





    R     		Conector rápido hexagonal interno 03S Ø3 ● - -
    23S Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    Laterais Conector rápido 04 Ø4 ● ● -
    06 Ø6 ● ● ●
    08 Ø8 - ● ●
    Y Interior B5 M5×0,8 ● ● ●
    Encaixe de farpa U4 Mangueira φ4 PU  ● ● -
    N4 φ4 Mangueira de náilon ● ● 一
    U6 Mangueira φ6 PU  ● ● ●
    N6 φ6 Mangueira de náilon ● ● ●
    Conector rápido hexagonal externo 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●
    Interior hexagon quick conector 03S Ø3 ● - -
    23S Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧Linha de montagem Externo thread A10 M10×1,0 ● ● -
    A14 M14×1,0 - ● ●

    Montagem
    Tópico     		Montagem Nut
    Torque de aperto (N.m)     		Força de amortecedor de mola(N)
    0 AVC Curso completo
    M10×1,0 2,5-3,5 1.0 3.0
    M14×1,0 6,5-7,5 2.0 5.0

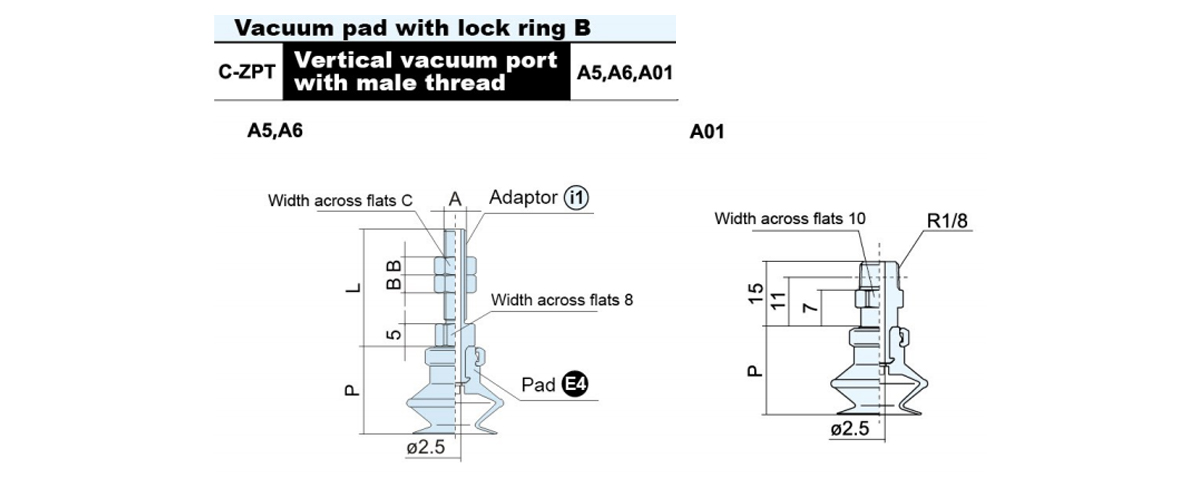

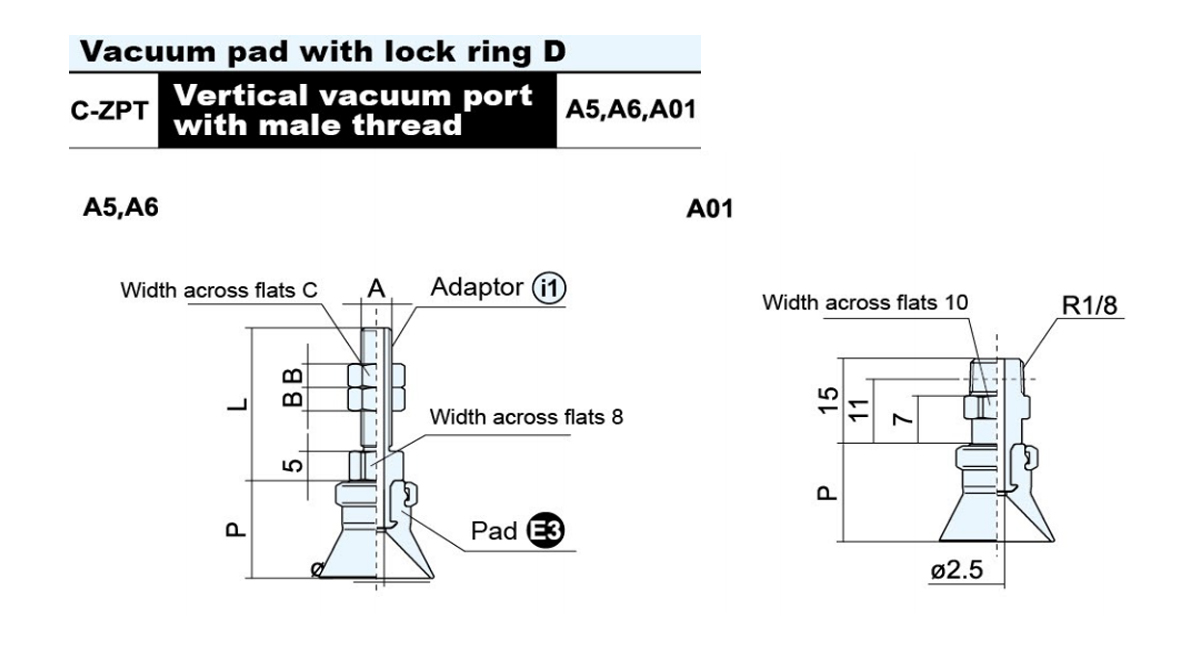

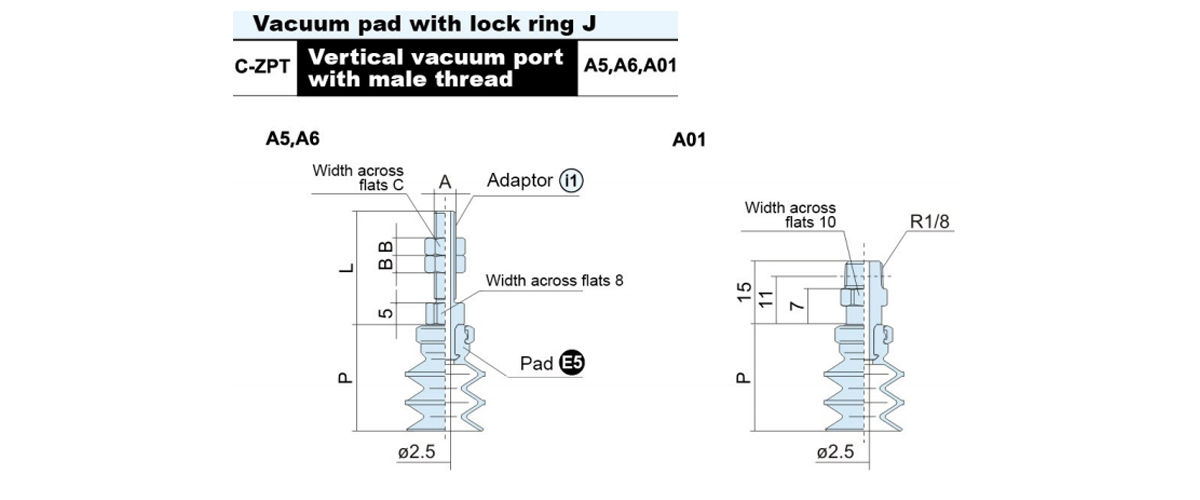

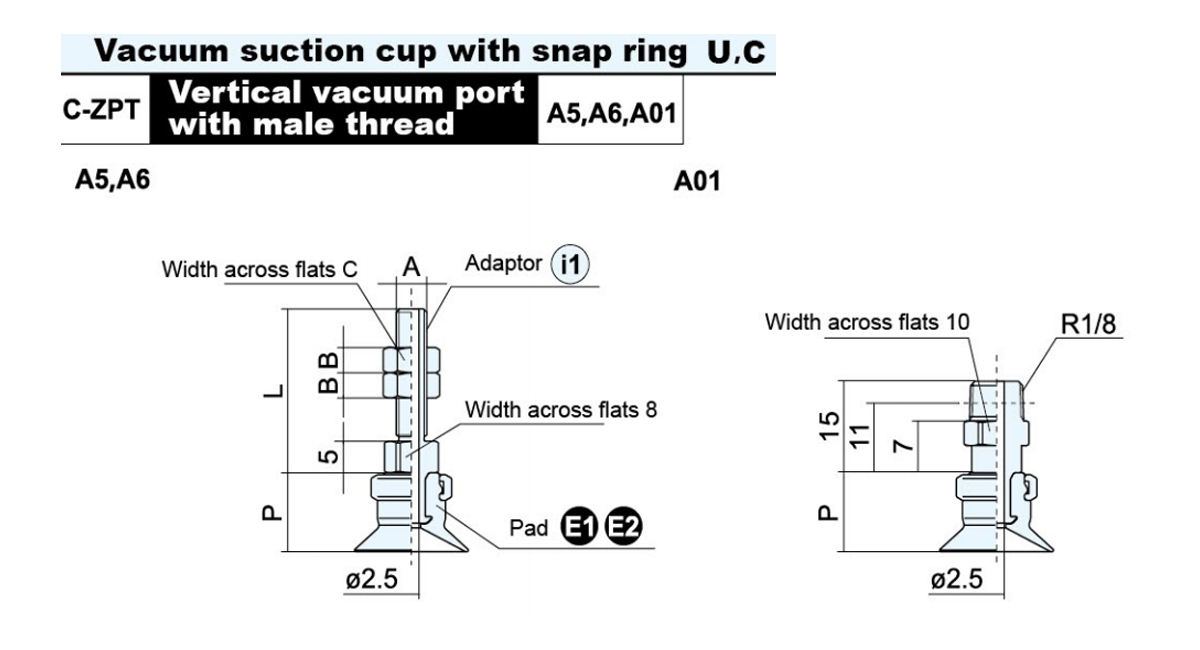

  • Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

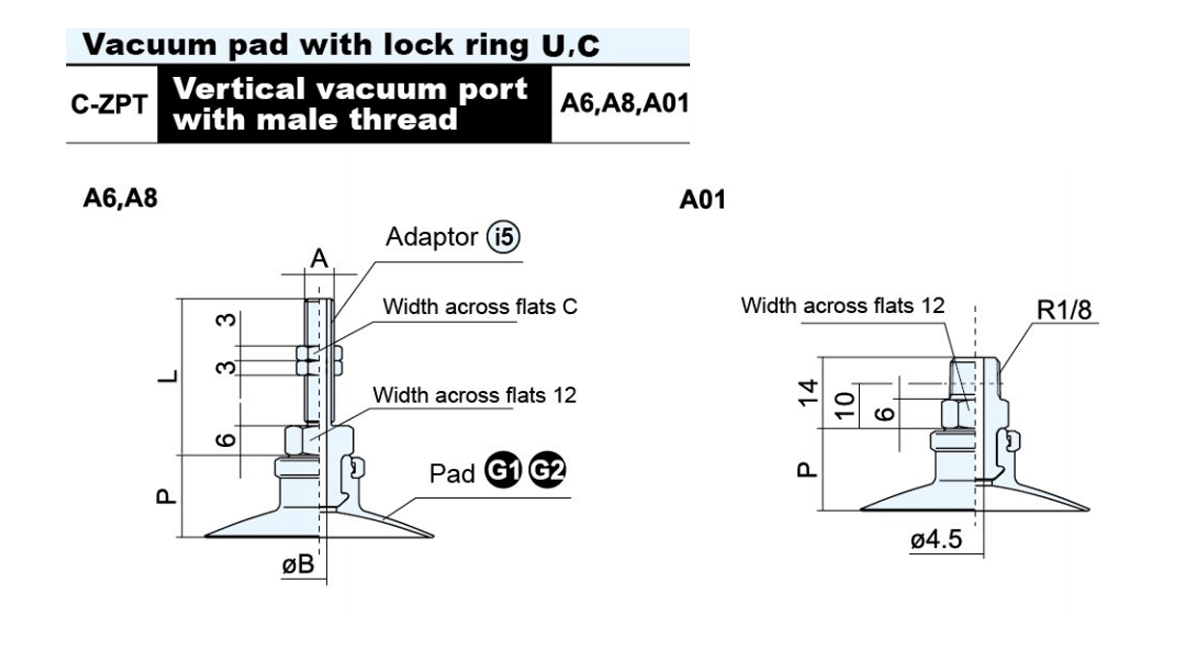

    C-ZPT○☆□-A5 M5×0.8 7 4 26 12 12 12.5 ZPT2-A5
    C-ZPT○☆□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○☆□-A01 - - ZPT2-A01
    ○ Symbol of pad diameter:10,13,16       ☆ Pad type:Flat(U),with  ribs(C)
    □Material:NBR(N),Silicone(S)

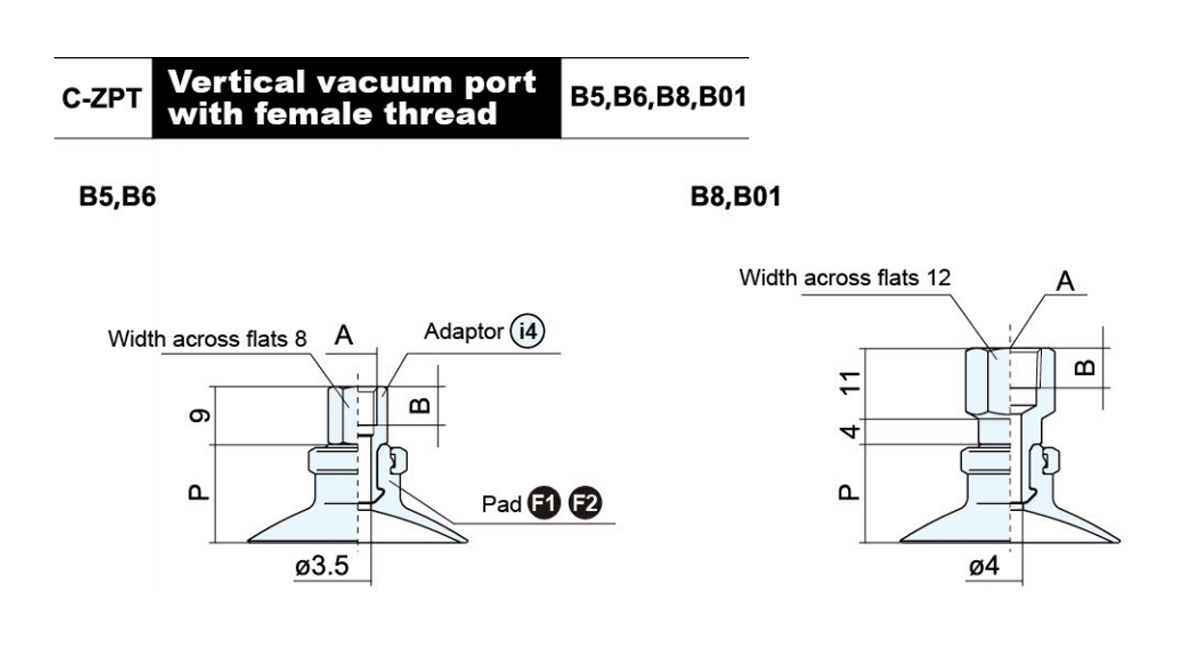

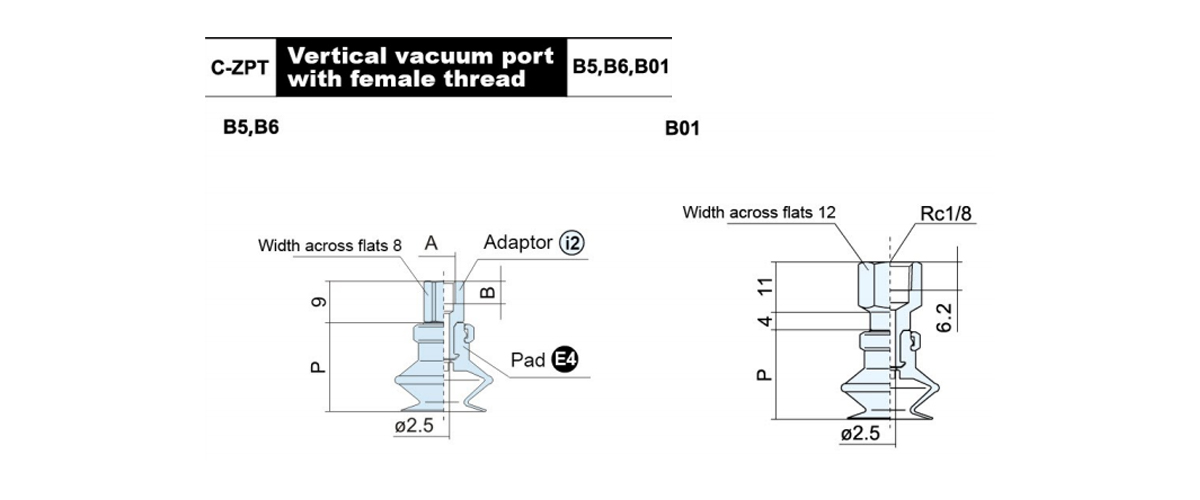

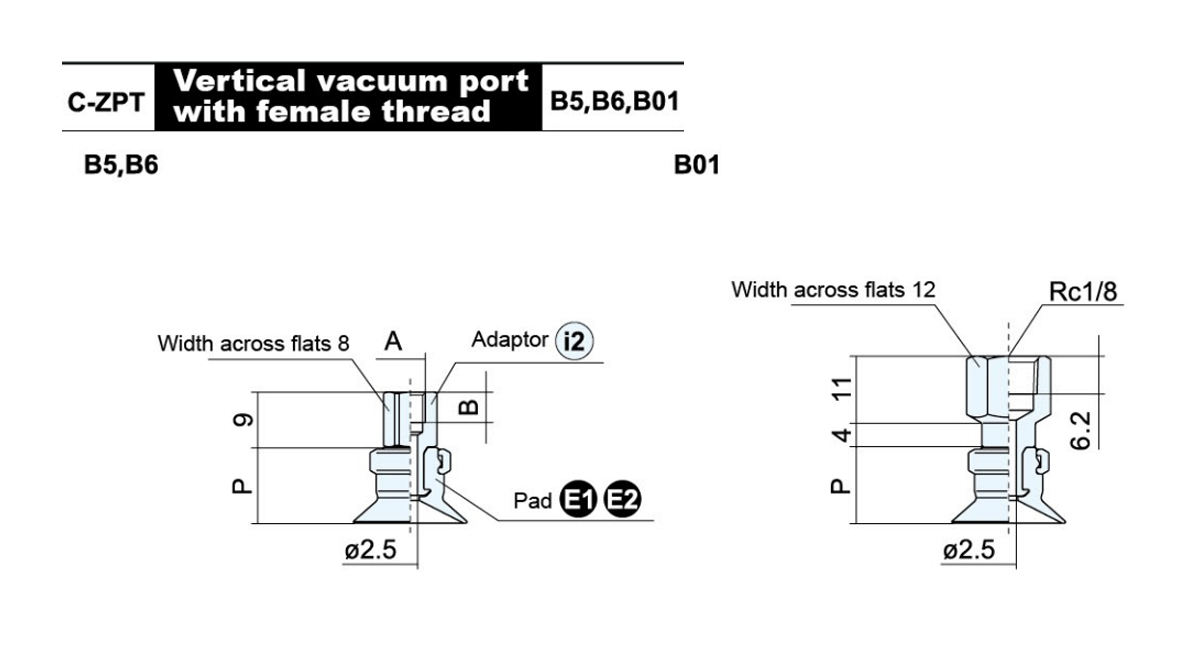

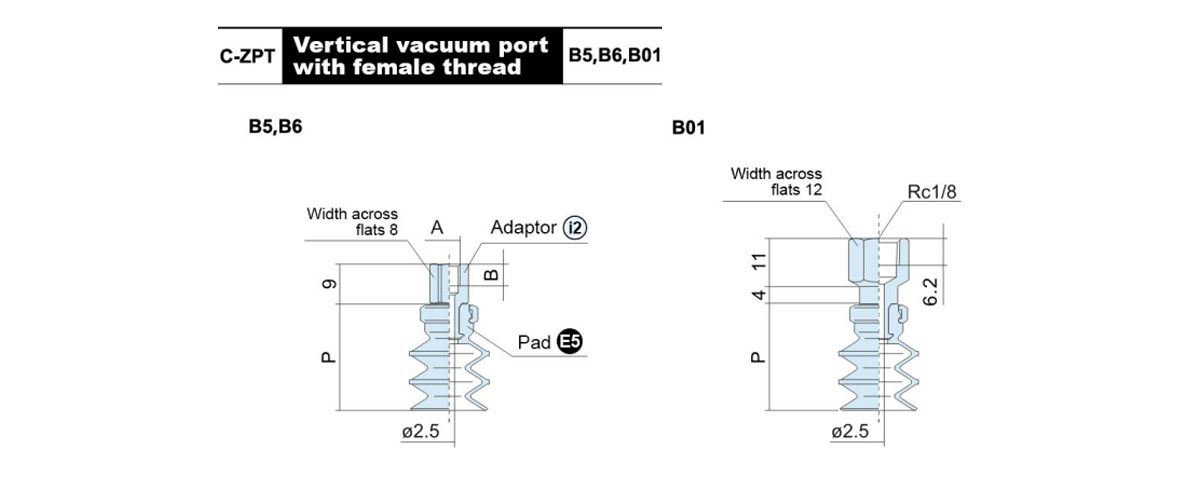

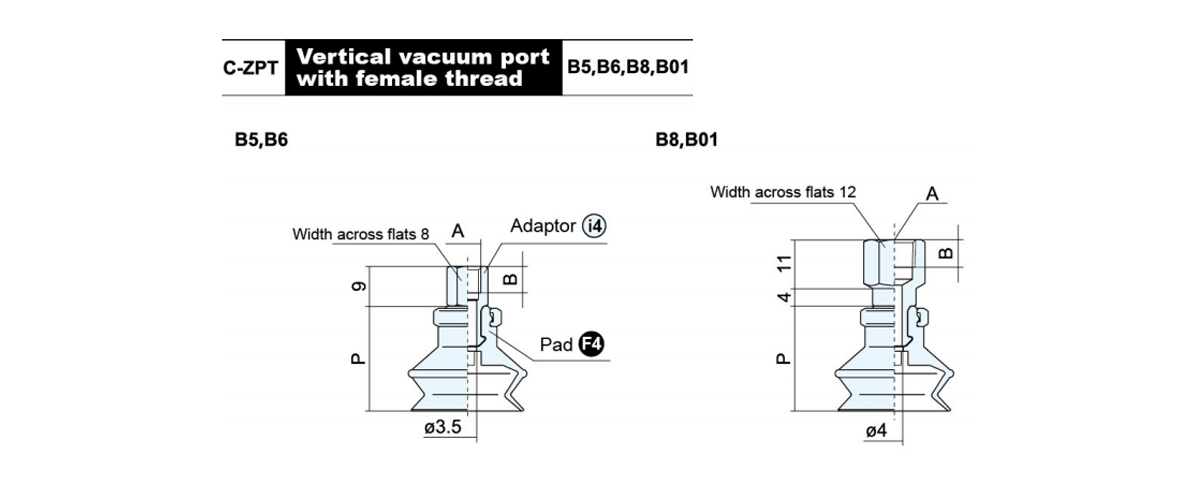

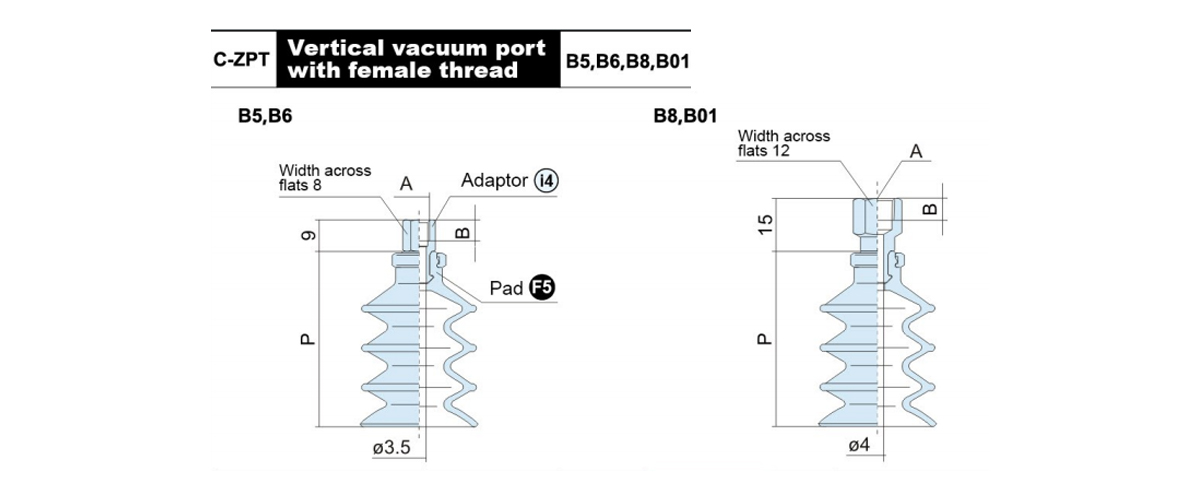

    Model A B ○Pad diameter P Adaptor Model
    10 13 16

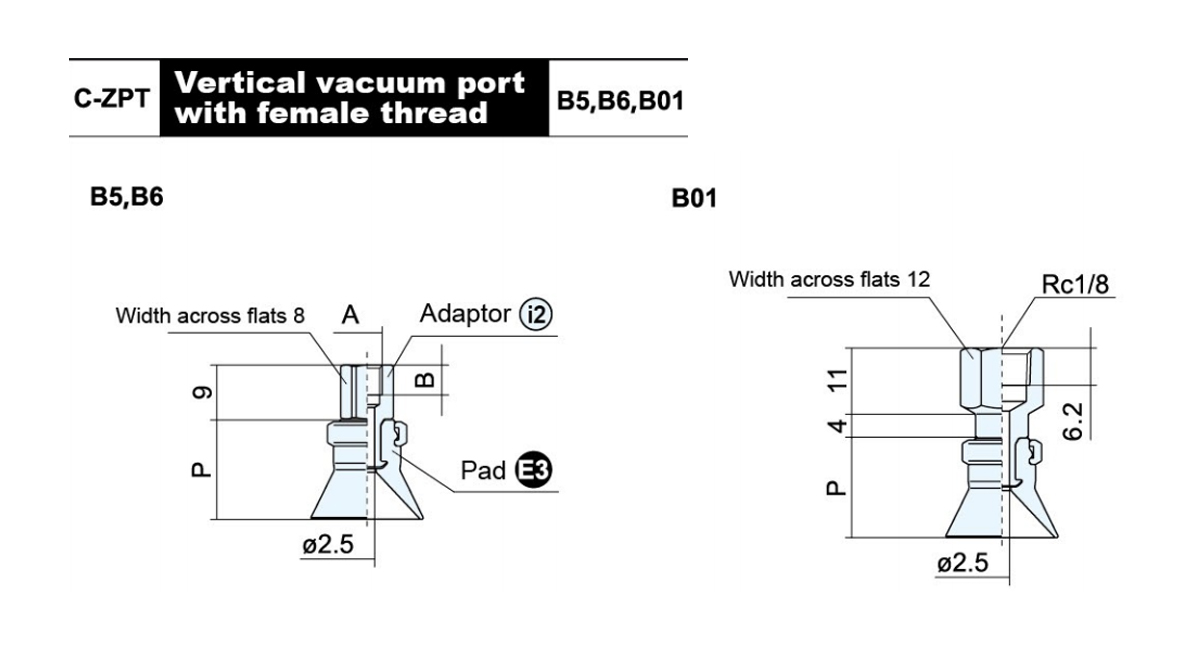

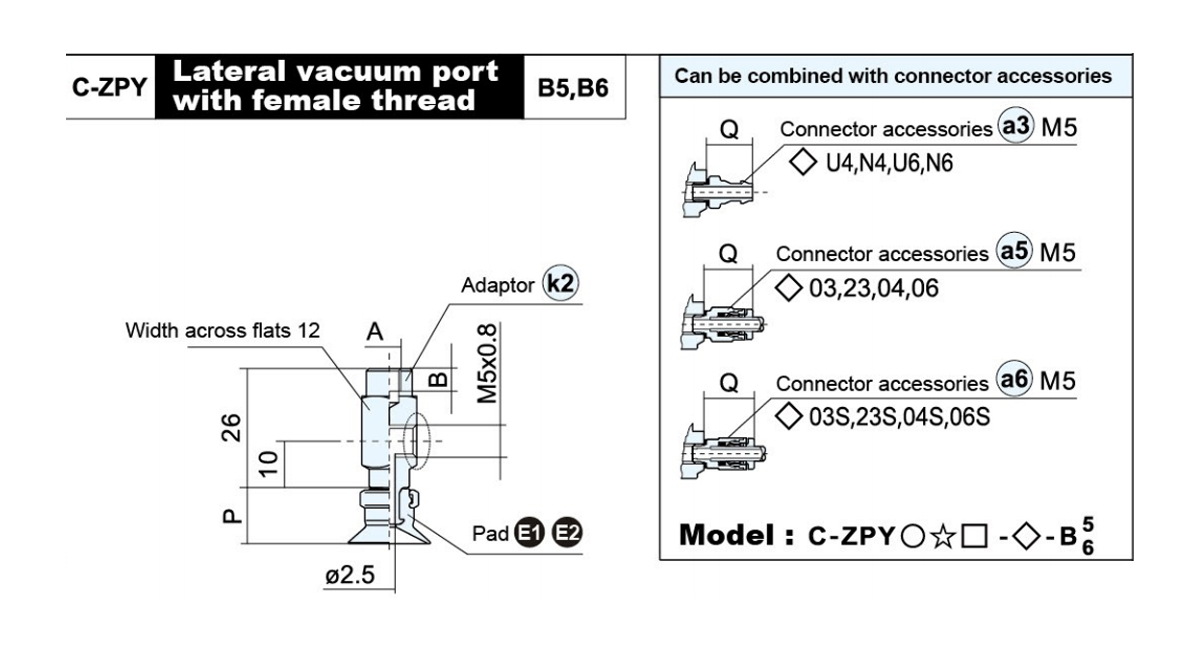

    C-ZPT○☆□-B5 M5×0.8 5 12 12 12.5 ZPT2-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○☆□-B01 - ZPT2-B01
    ○Symbol of pad diameter:10,13,16
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

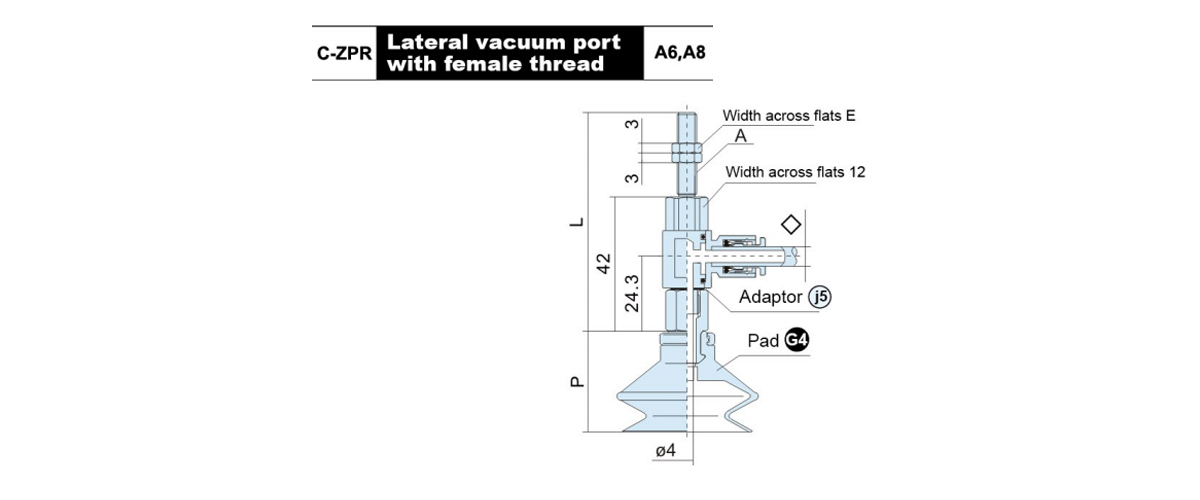

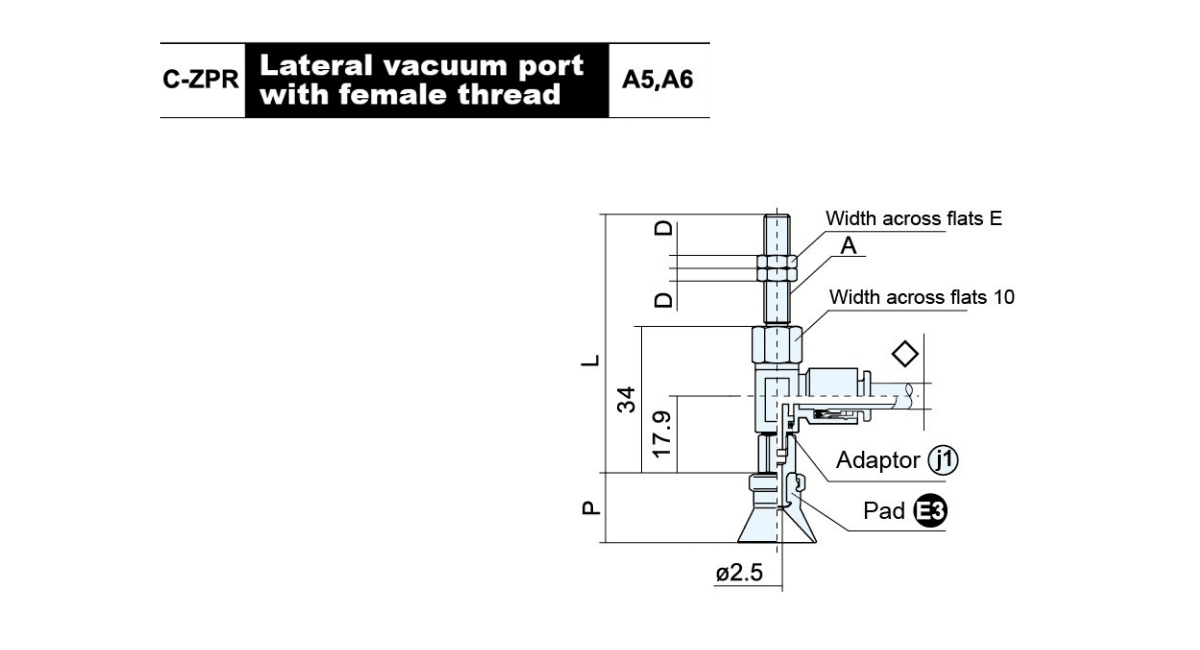

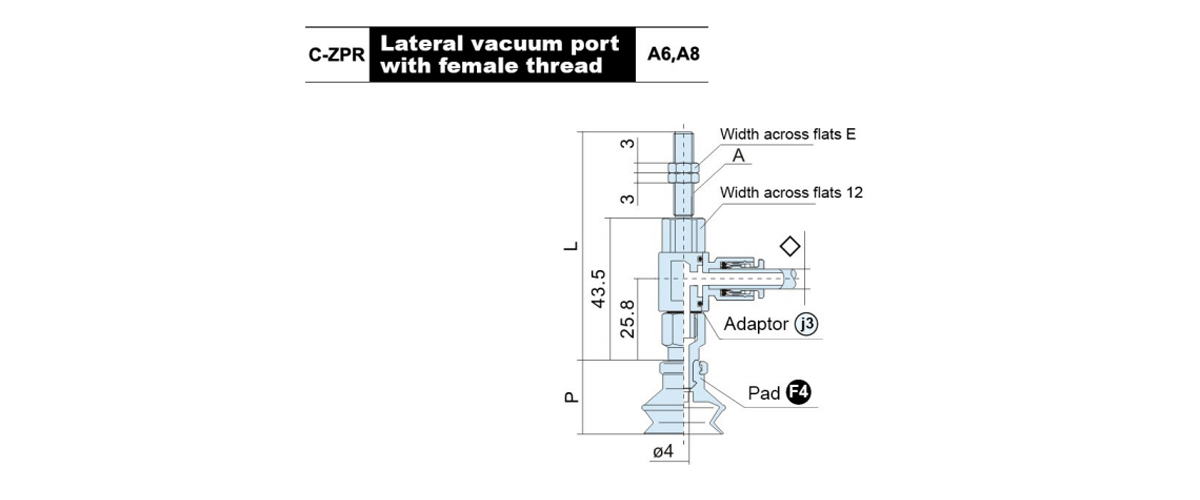

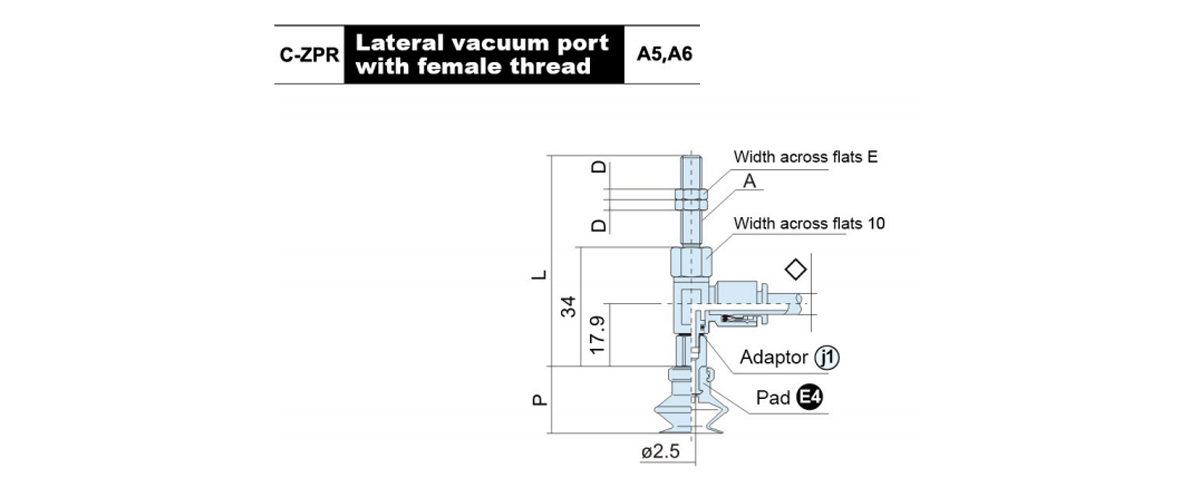

    Model A D E L ○Pad diameter P Adaptor Model
    10 13 16

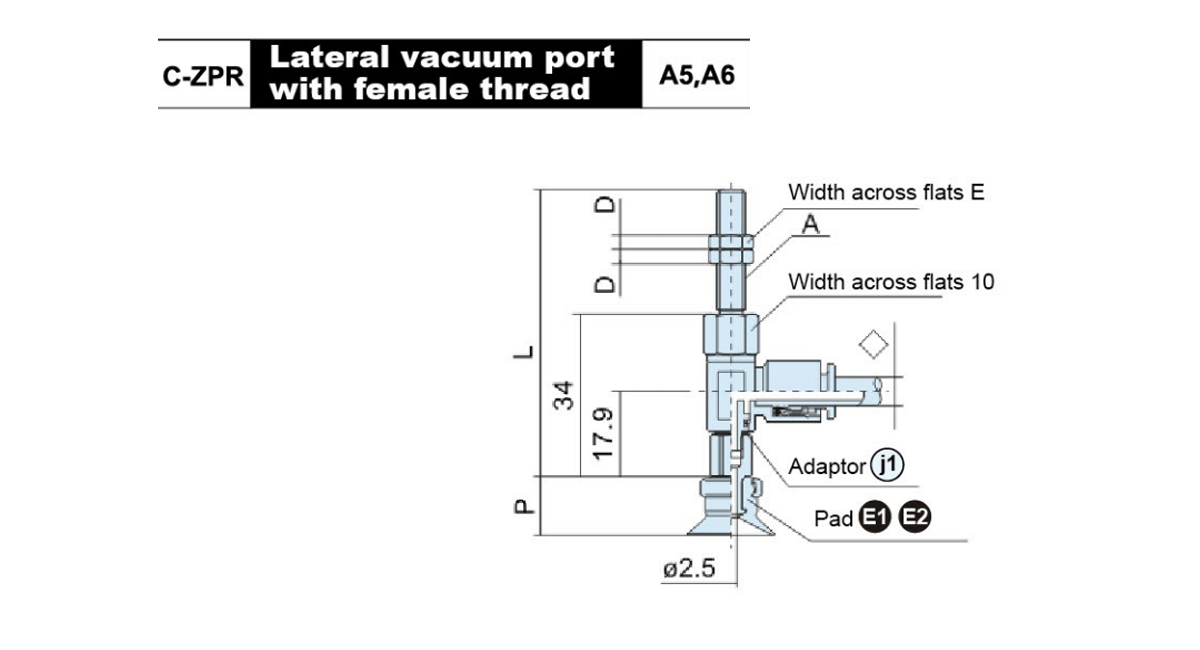

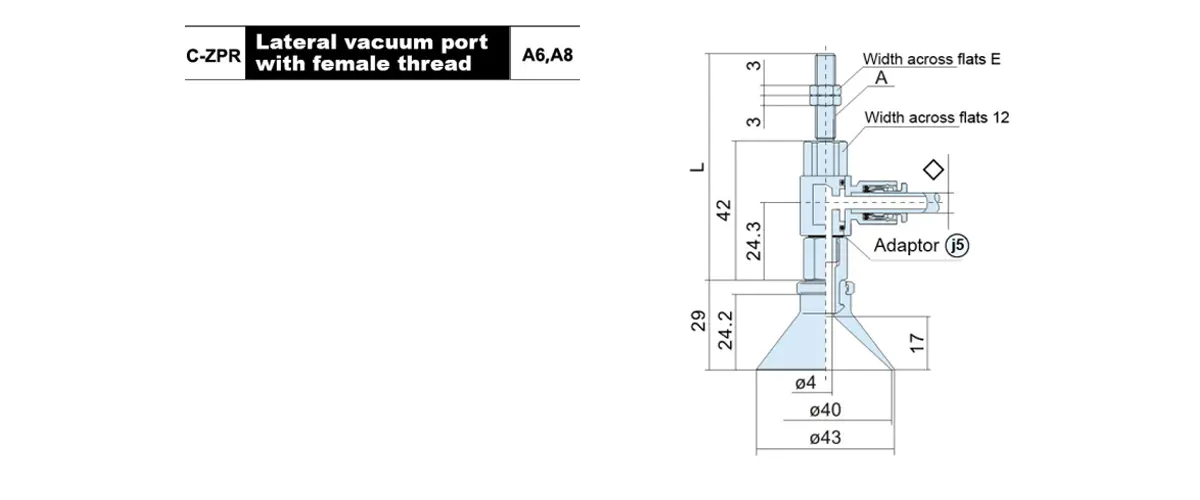

    C-ZPR○☆口 - ◇ -A5 M5×0.8 4 7 55 12 12 12.5 ZPR2-◇-A5
    C-ZPR○☆□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:04,06

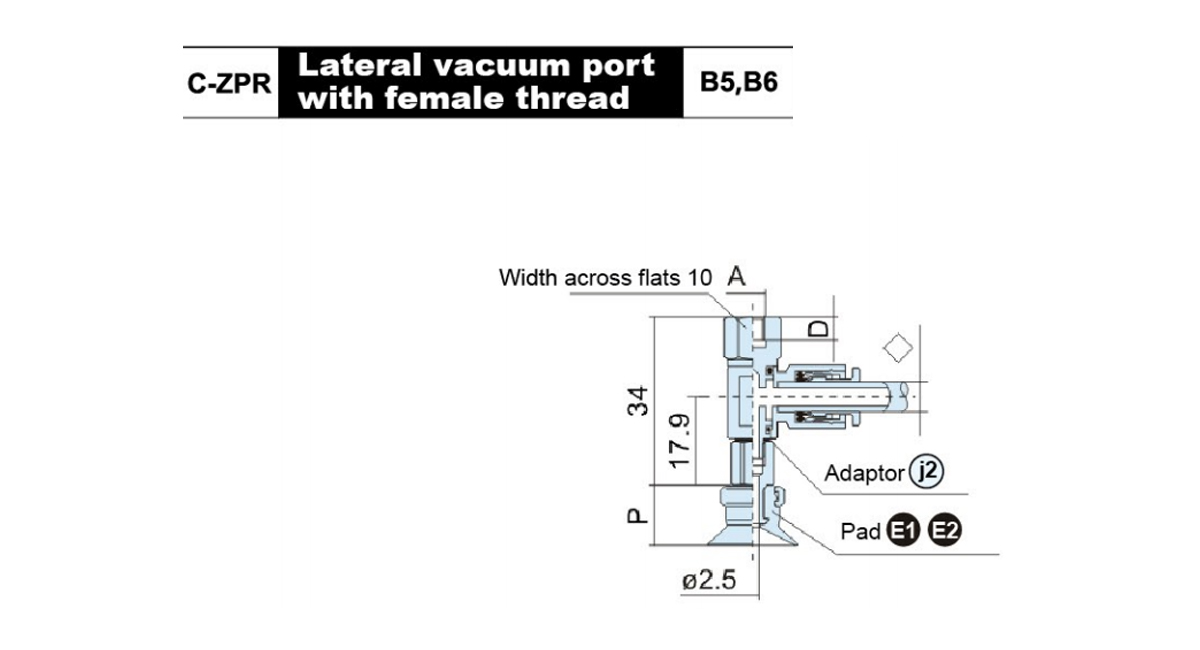

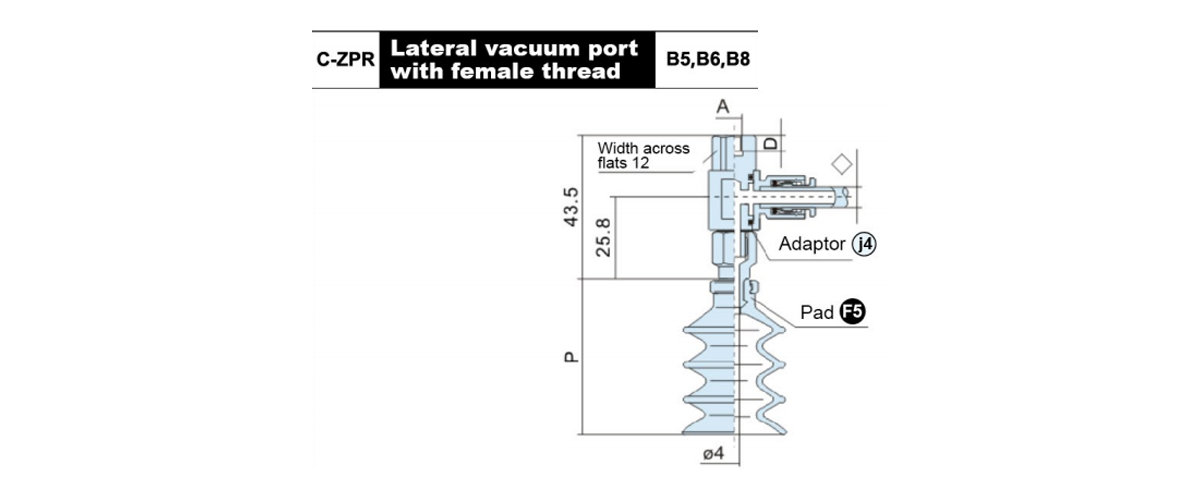

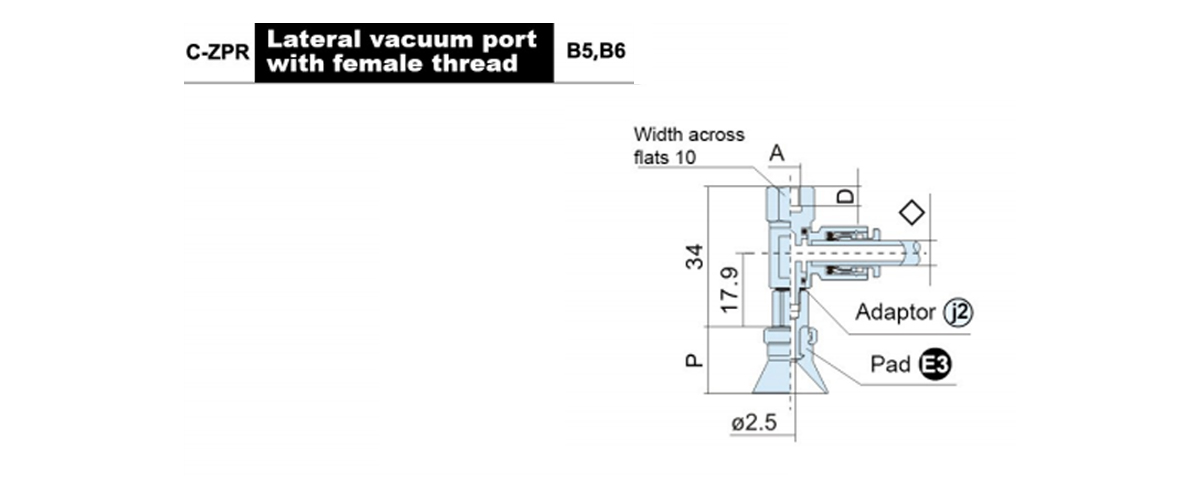

    Model A D ○Pad diameter P Adaptor Model
    10 13 16

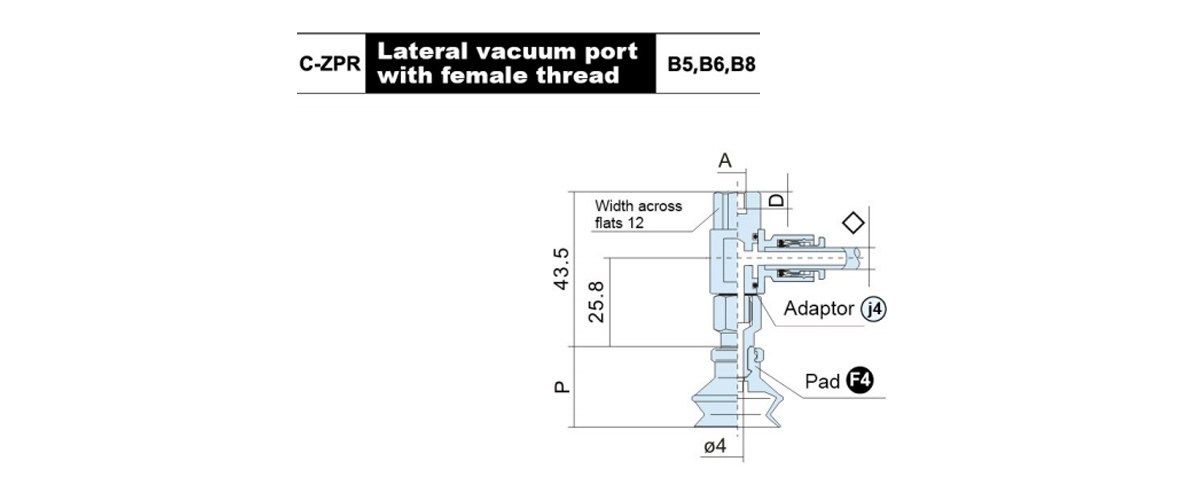

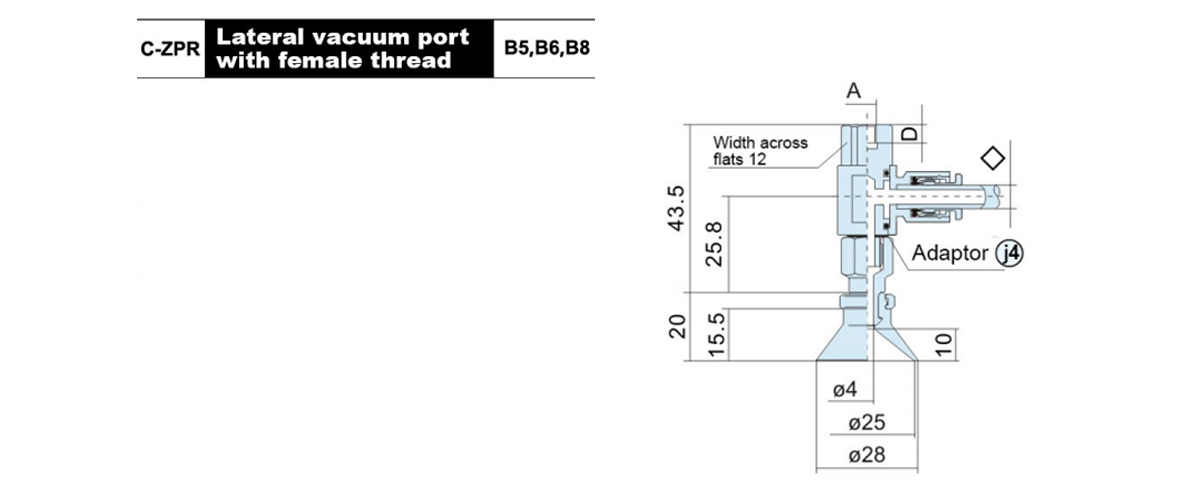

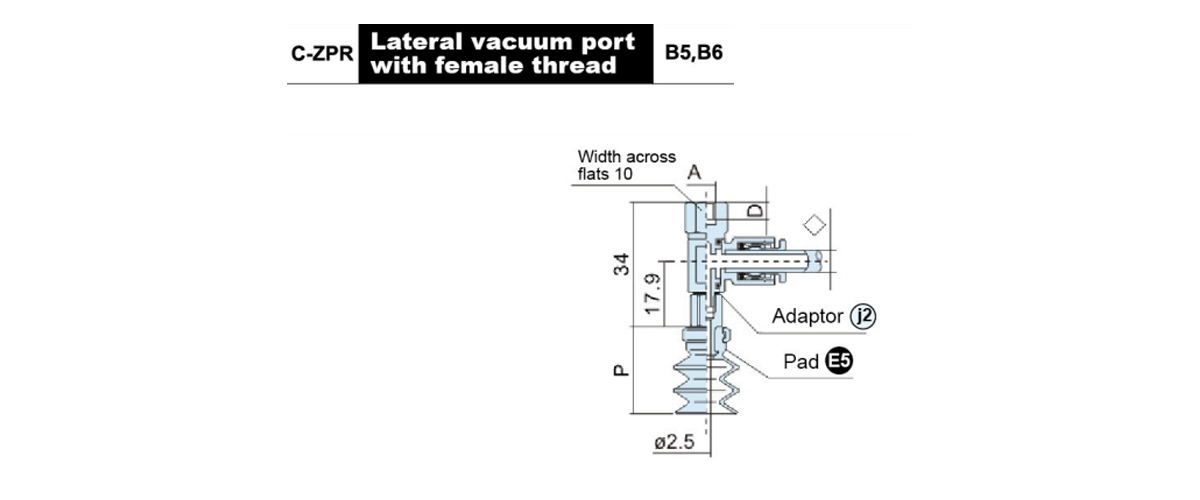

    C-ZPR○☆□-◇-B5 M5×0.8 5 12 12 12.5 ZPR2-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06

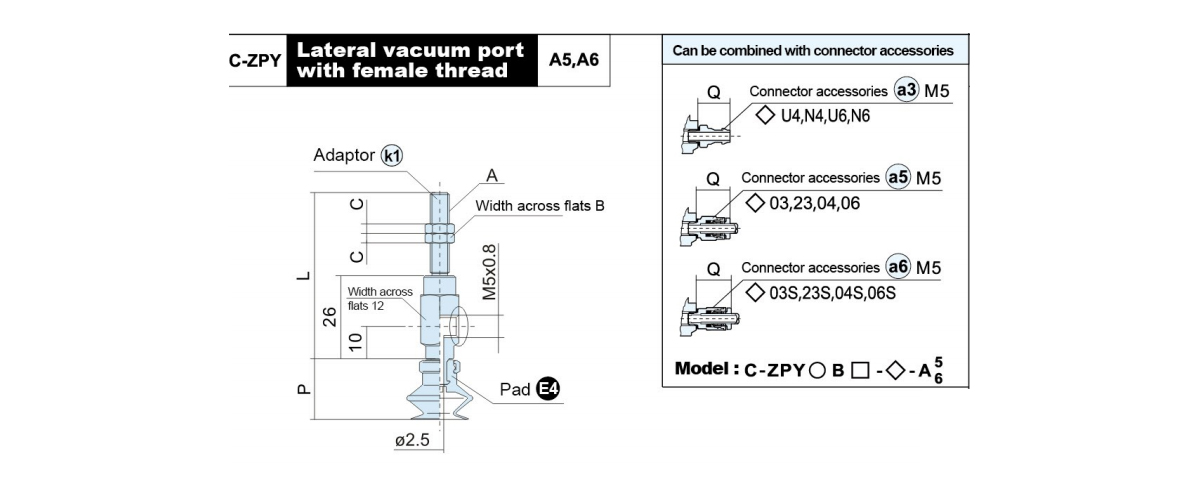

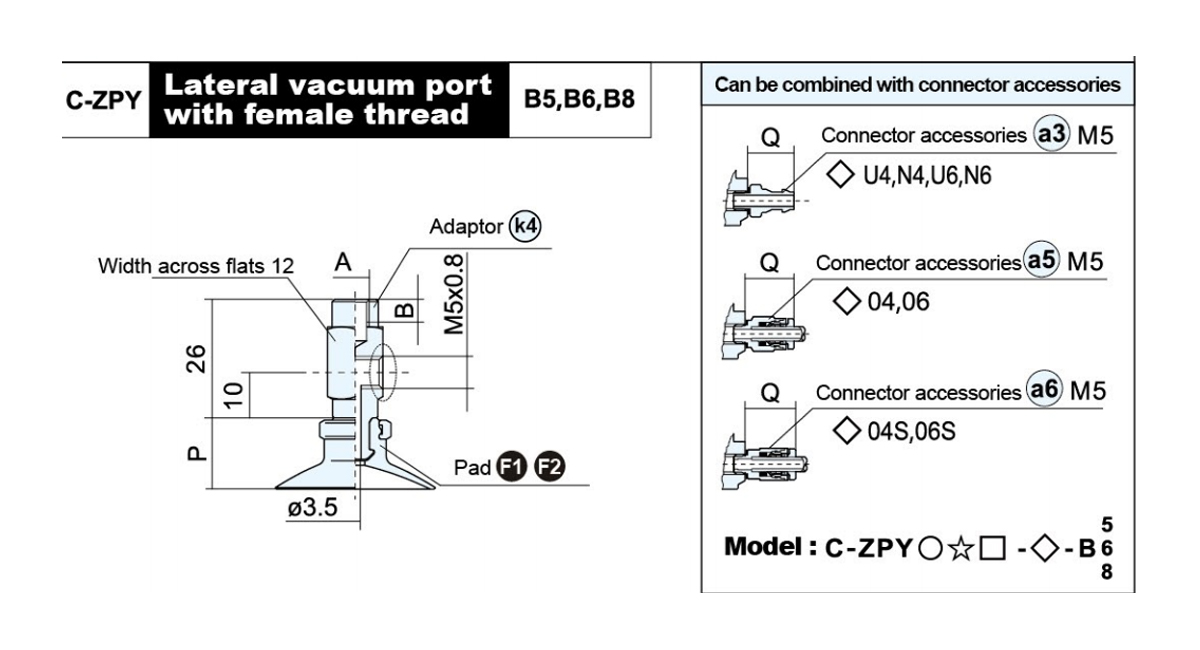

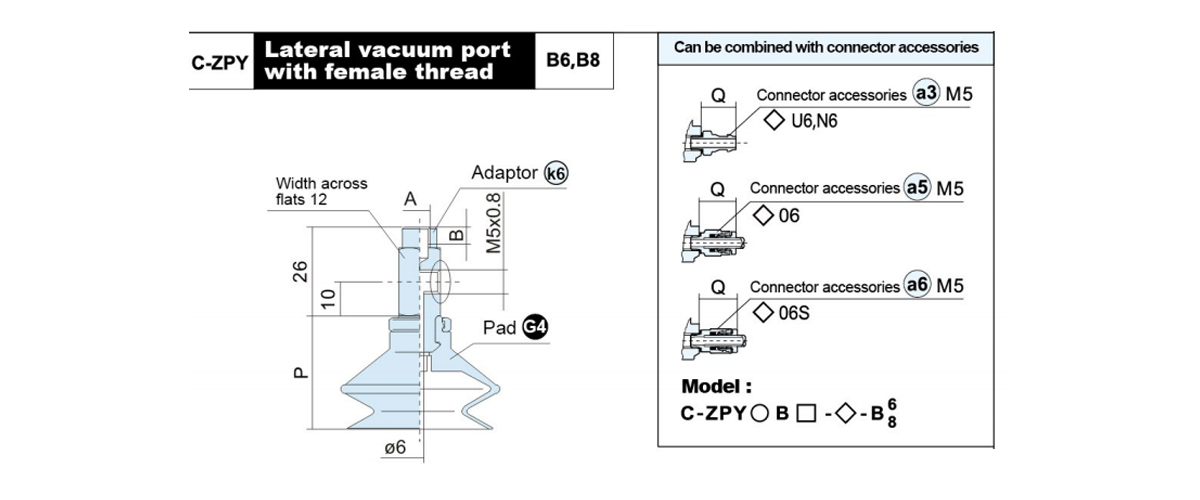

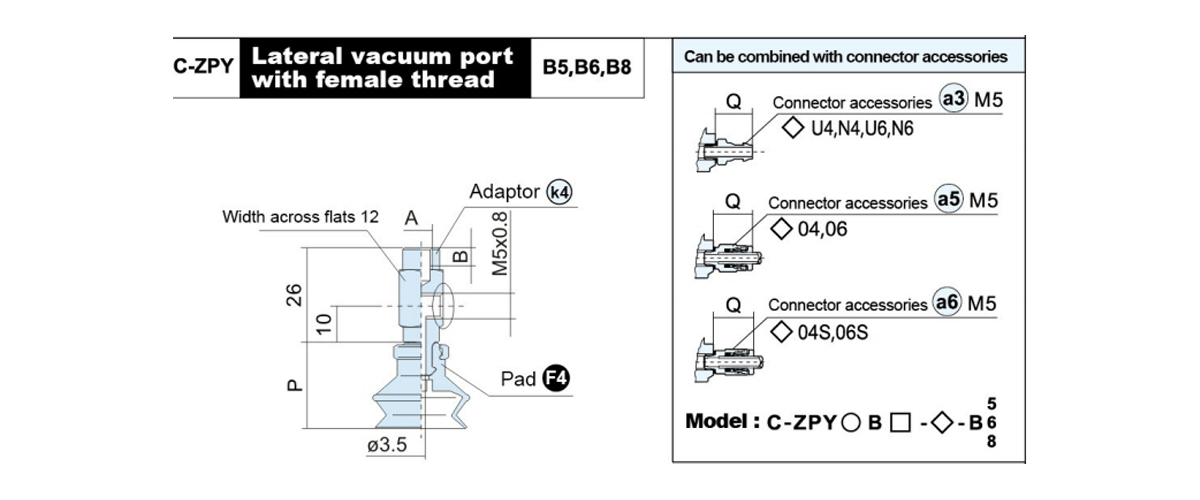

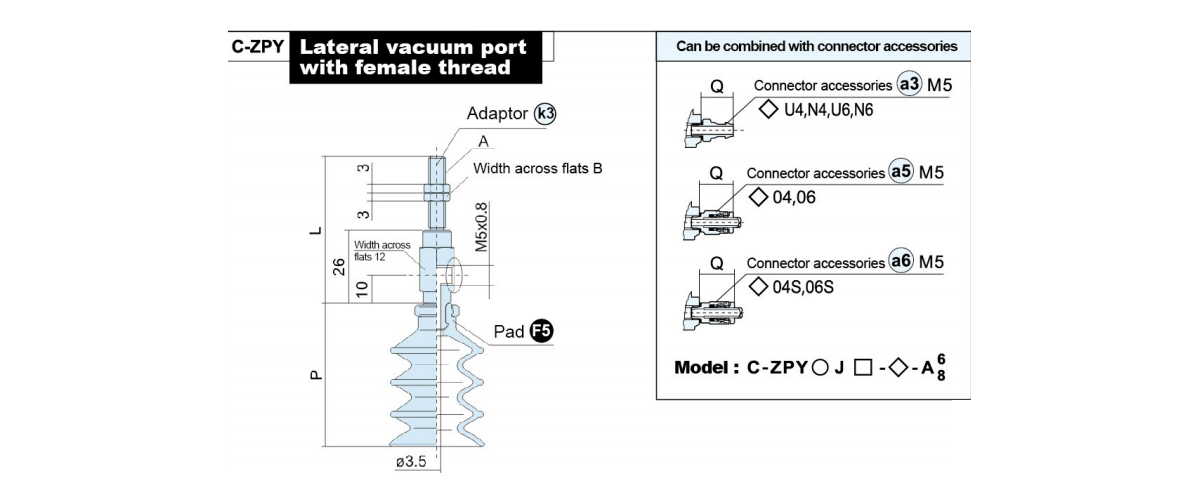

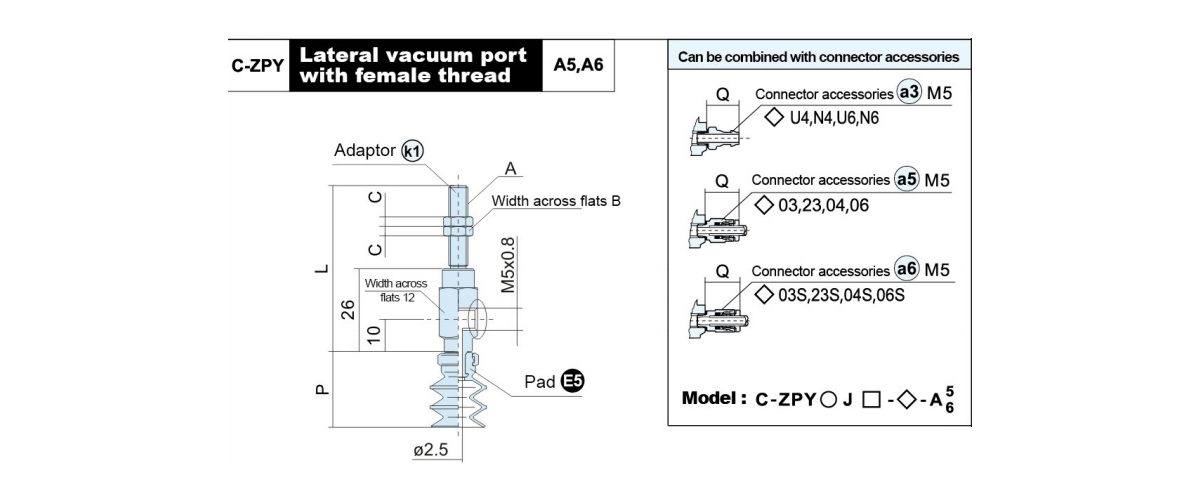

    Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

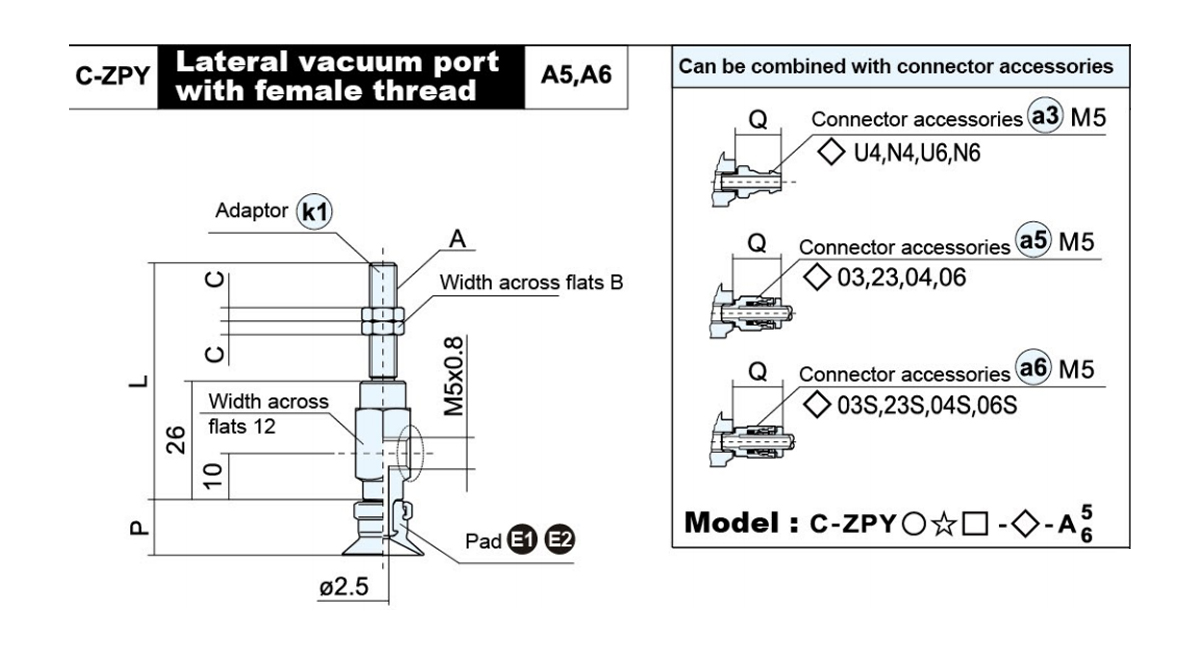

    C-ZPY○☆□-B5-A5 M5×0.8 7 4 47 12 12 12.5 ZPY2-B5-A5
    C-ZPY○☆□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

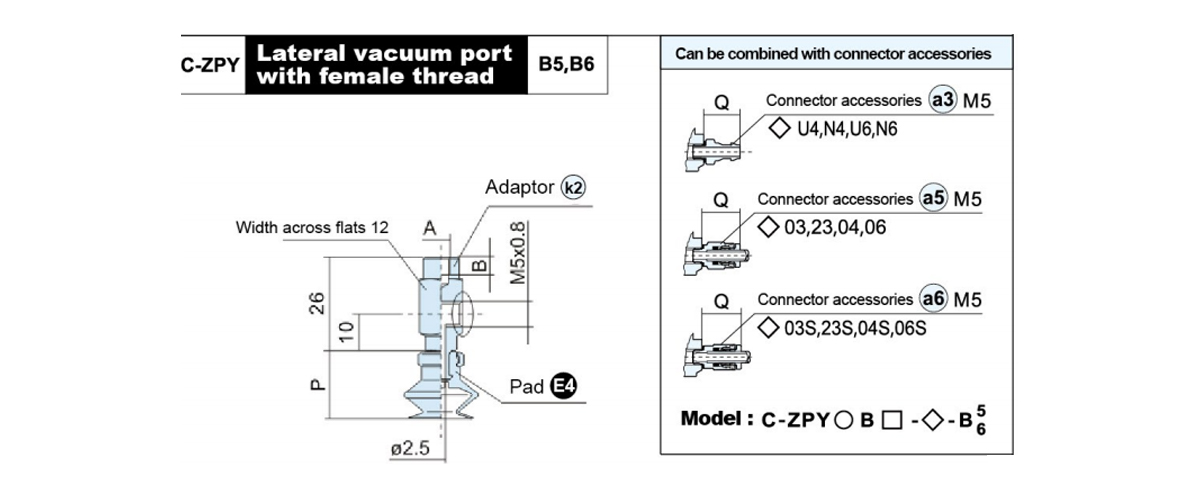

    Model A B ○Pad diameter P Adaptor Model
    10 13 16
    C-ZPY○☆□-B5-B5 M5×0.8 5 12 12 12.5 ZPY2-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

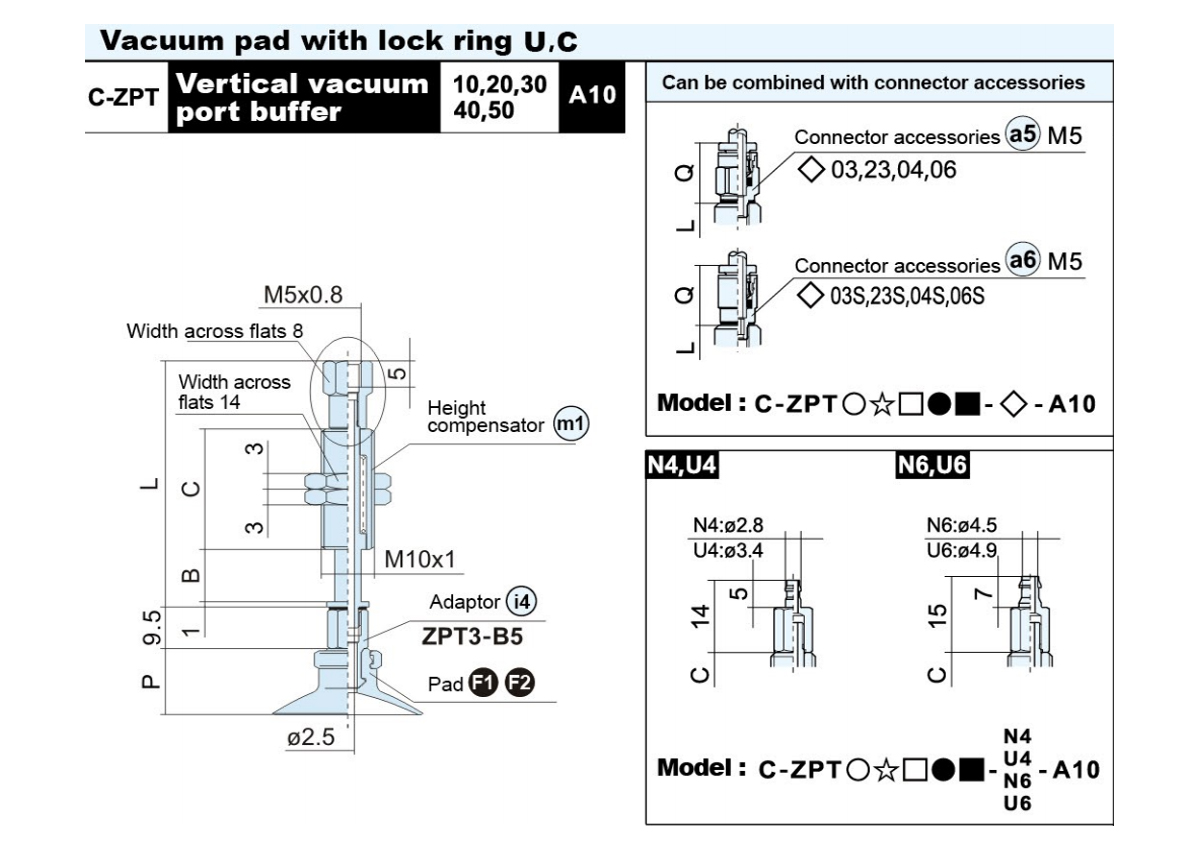

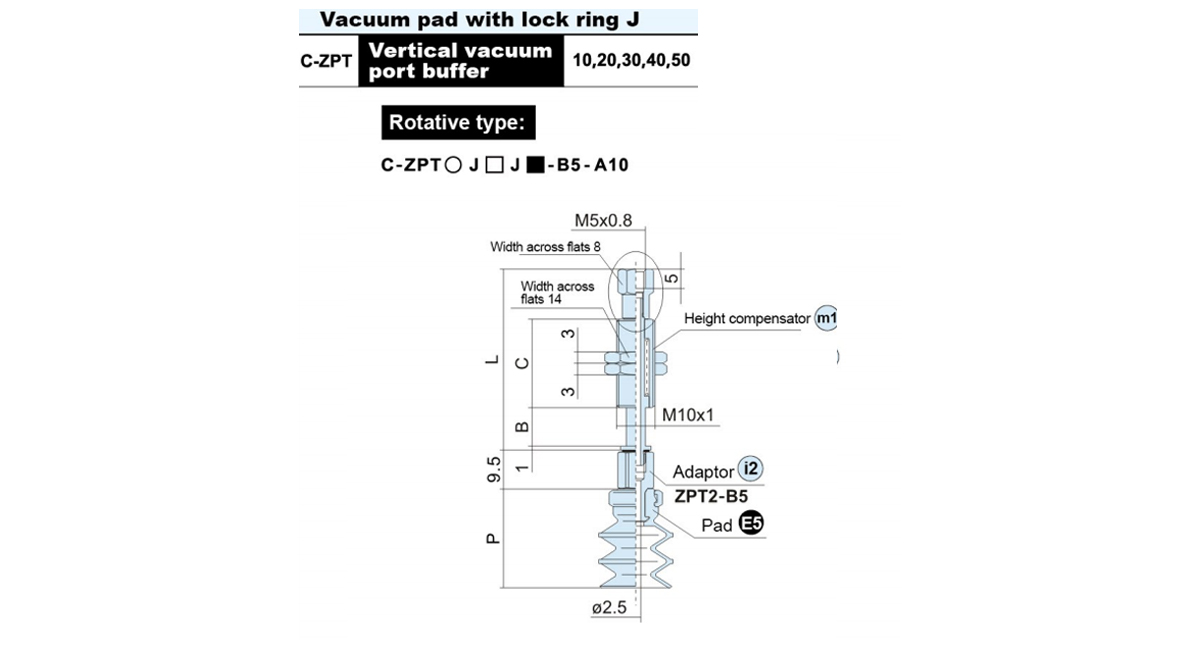

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16

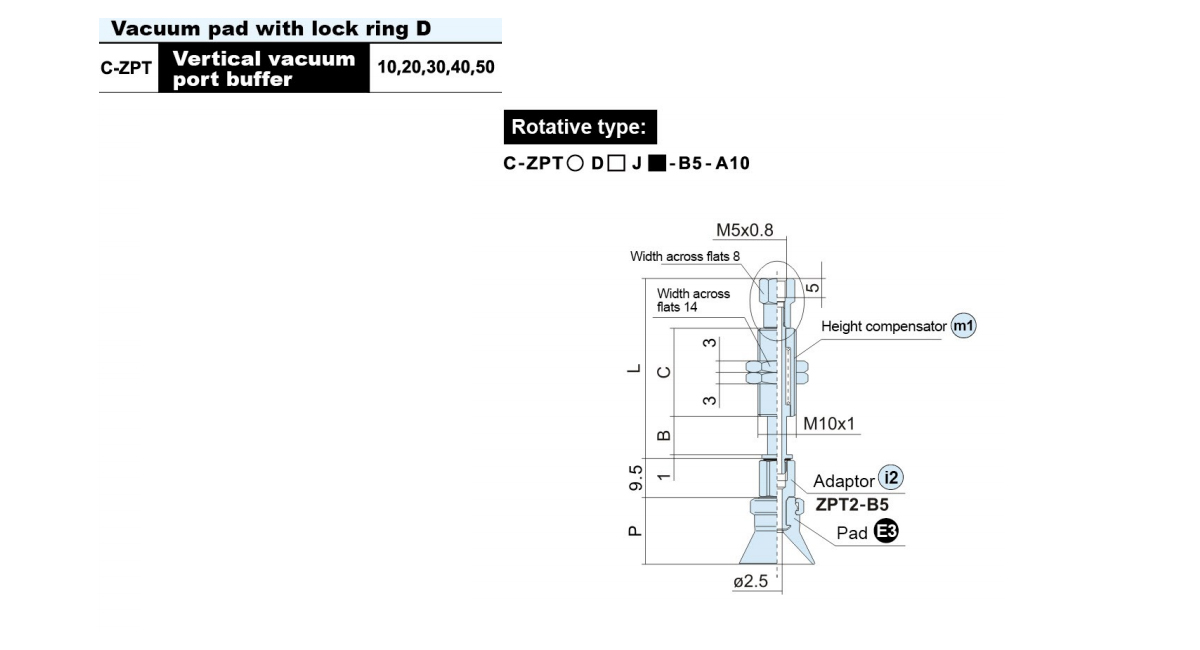

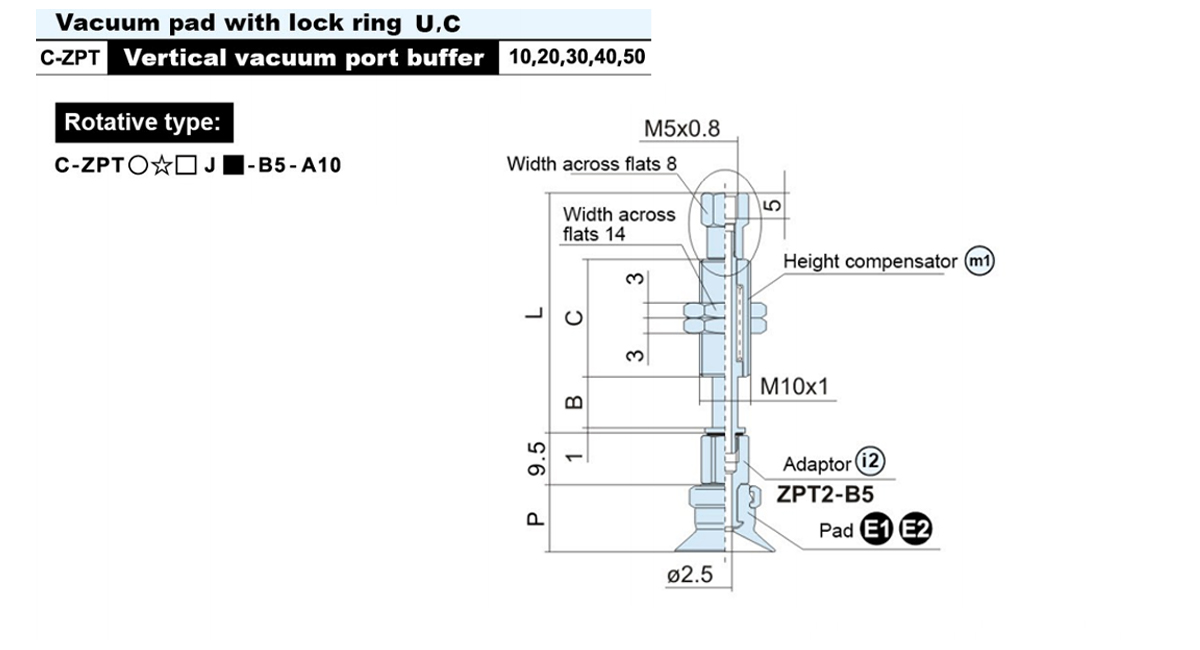

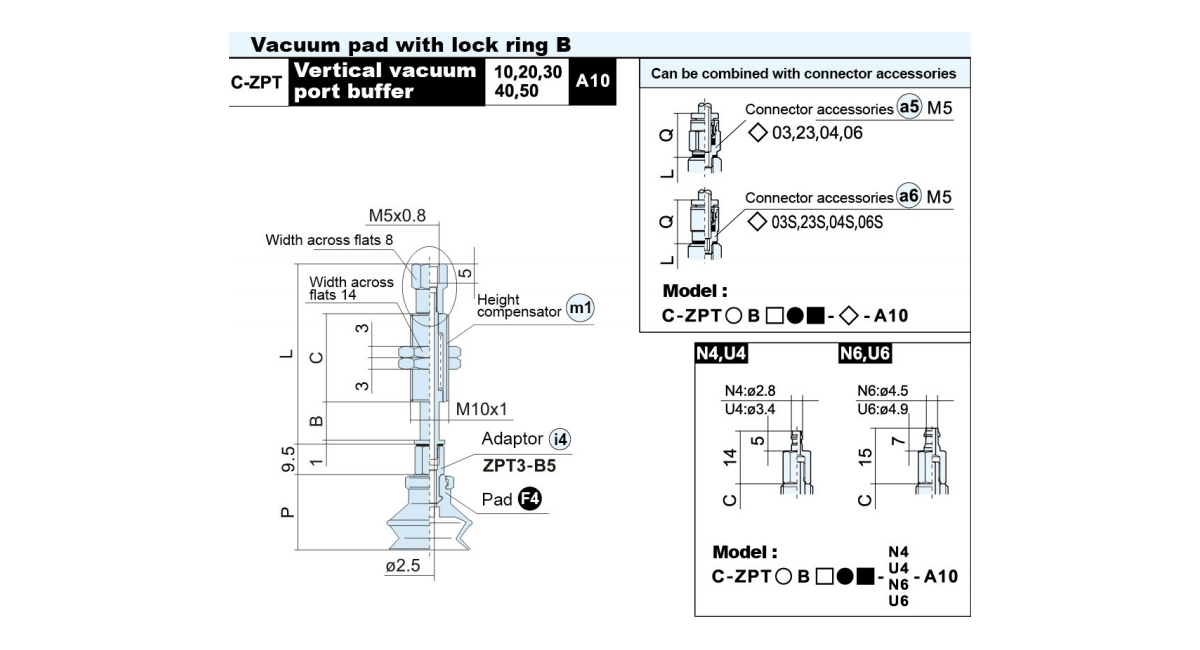

    C-ZPT○☆□J10-B5-A10 10 23 47 12 12 12.5 ZPT2-J10-B5-A10
    C-ZPT○☆□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○☆□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○☆□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○☆□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)

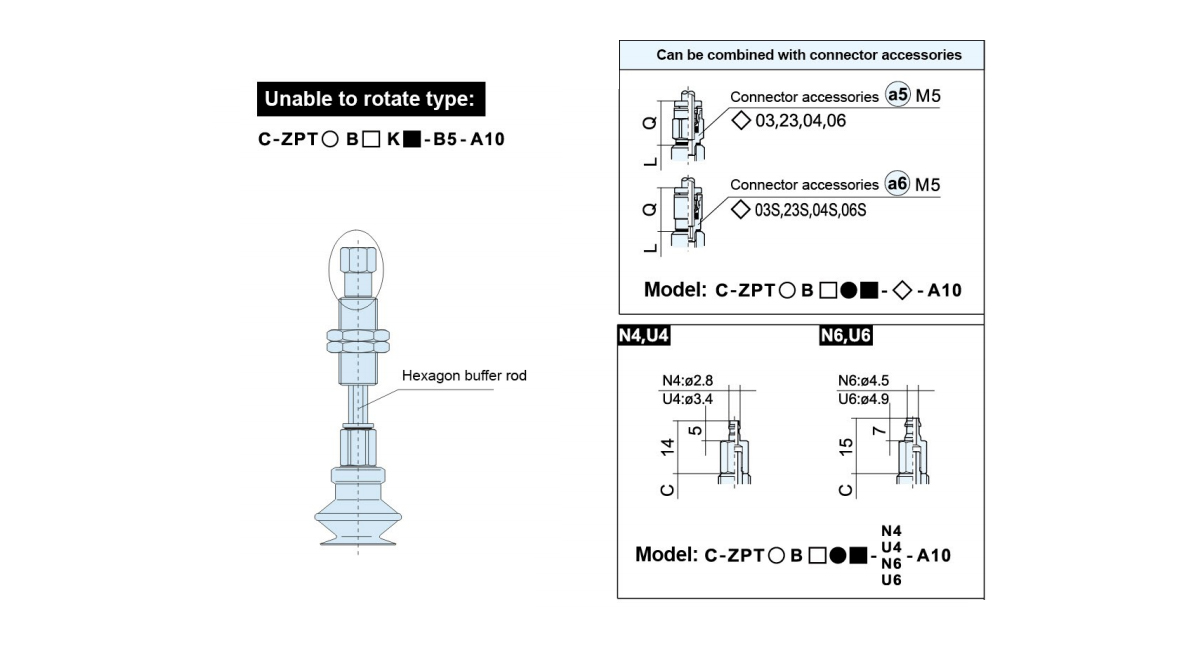

    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

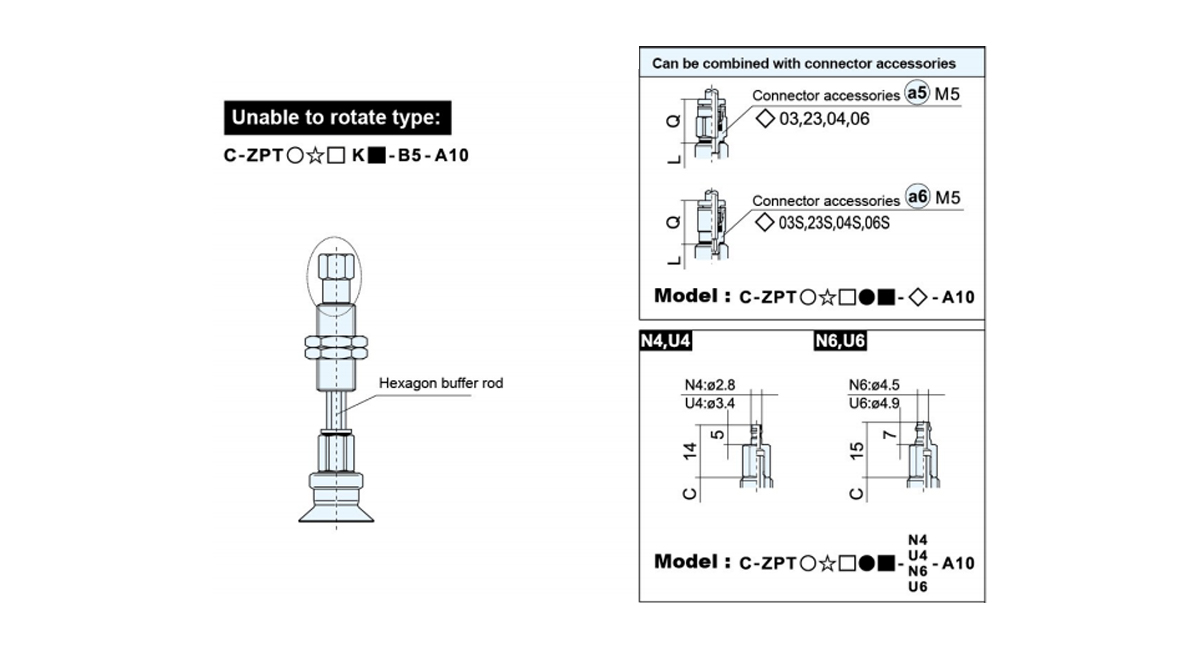

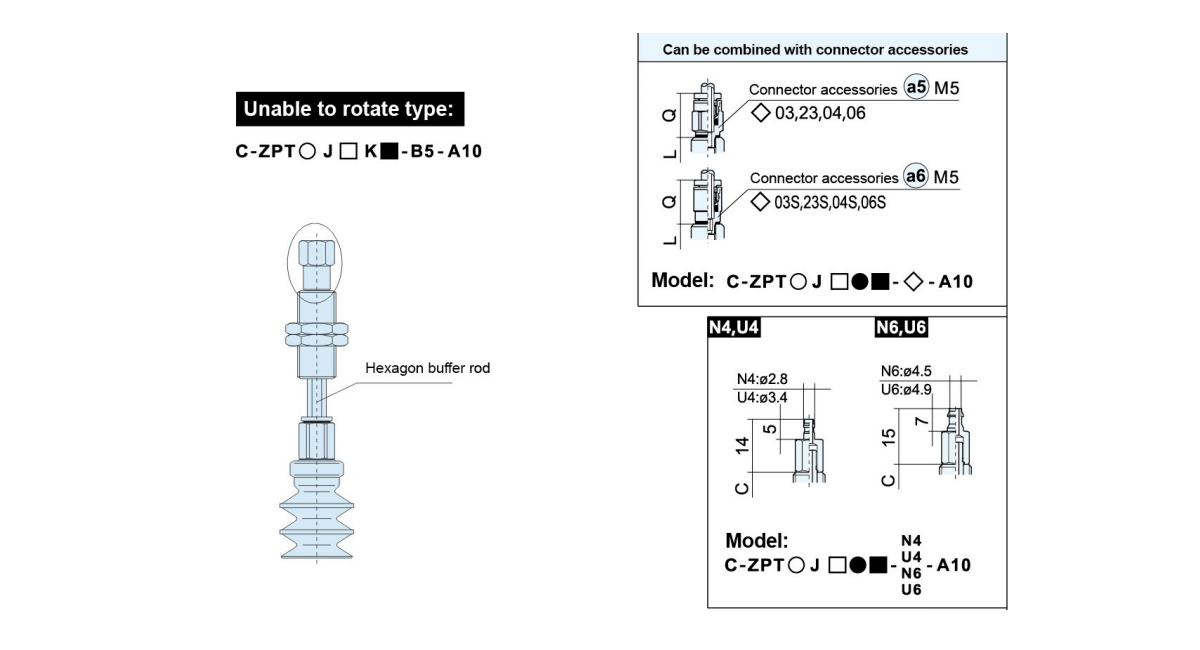

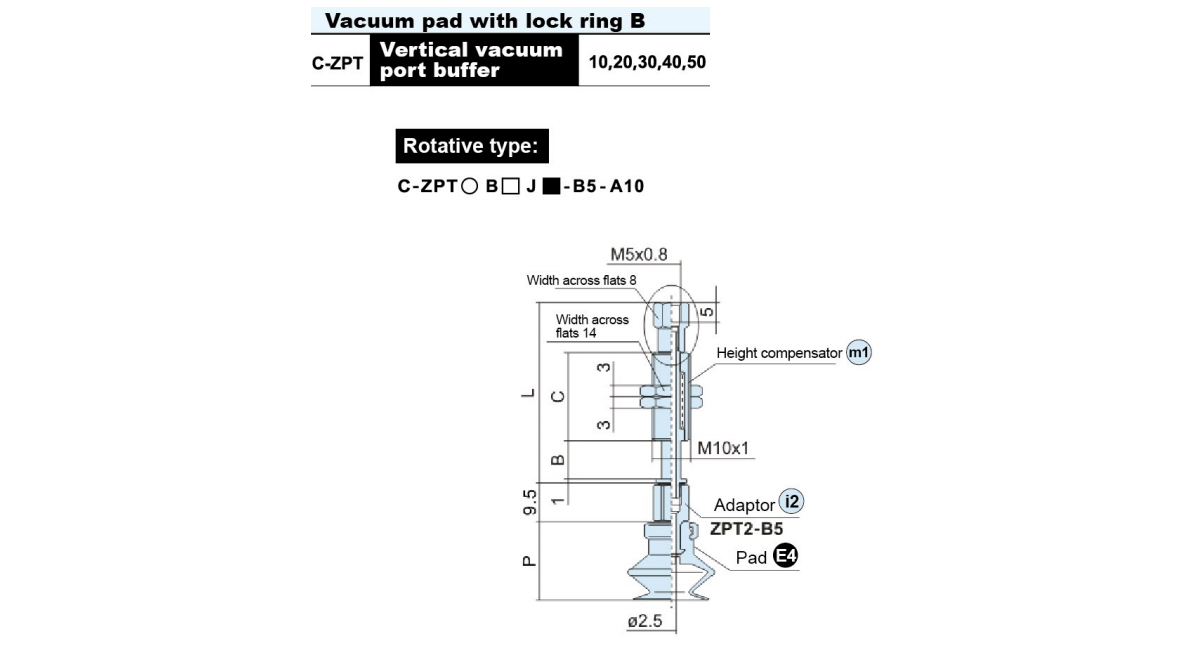

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○☆□K10-B5-A10 10 23 47 12 12 12.5 ZPT2-K10-B5-A10
    C-ZPT○☆□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○☆□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○☆□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○☆□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

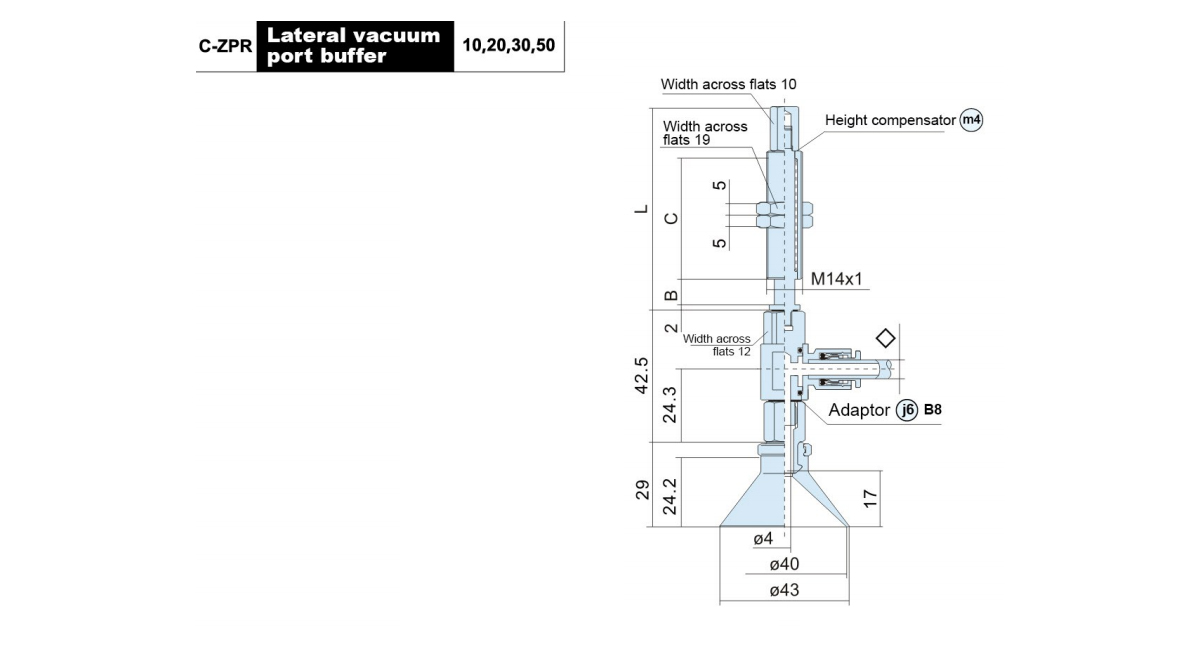

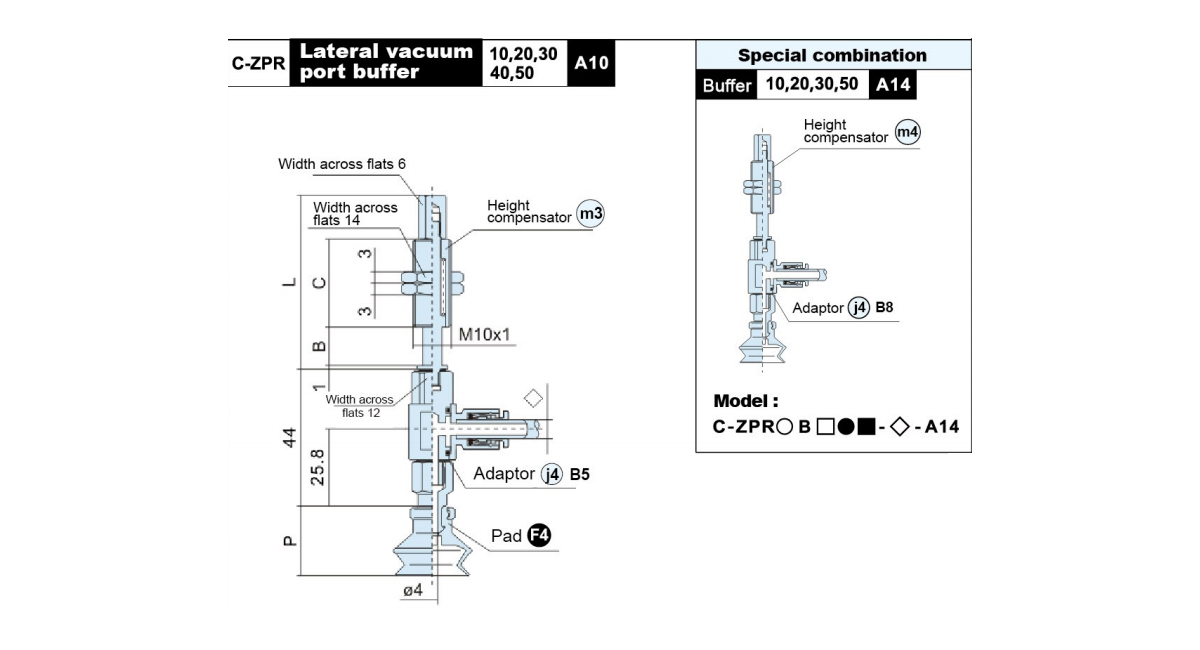

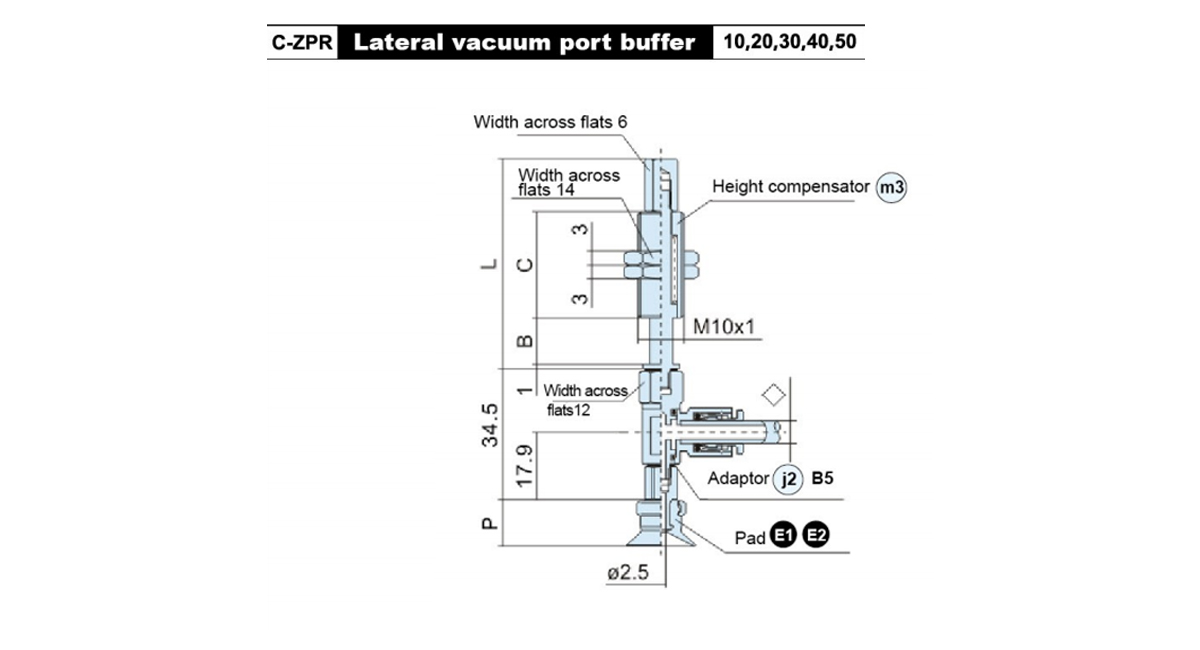

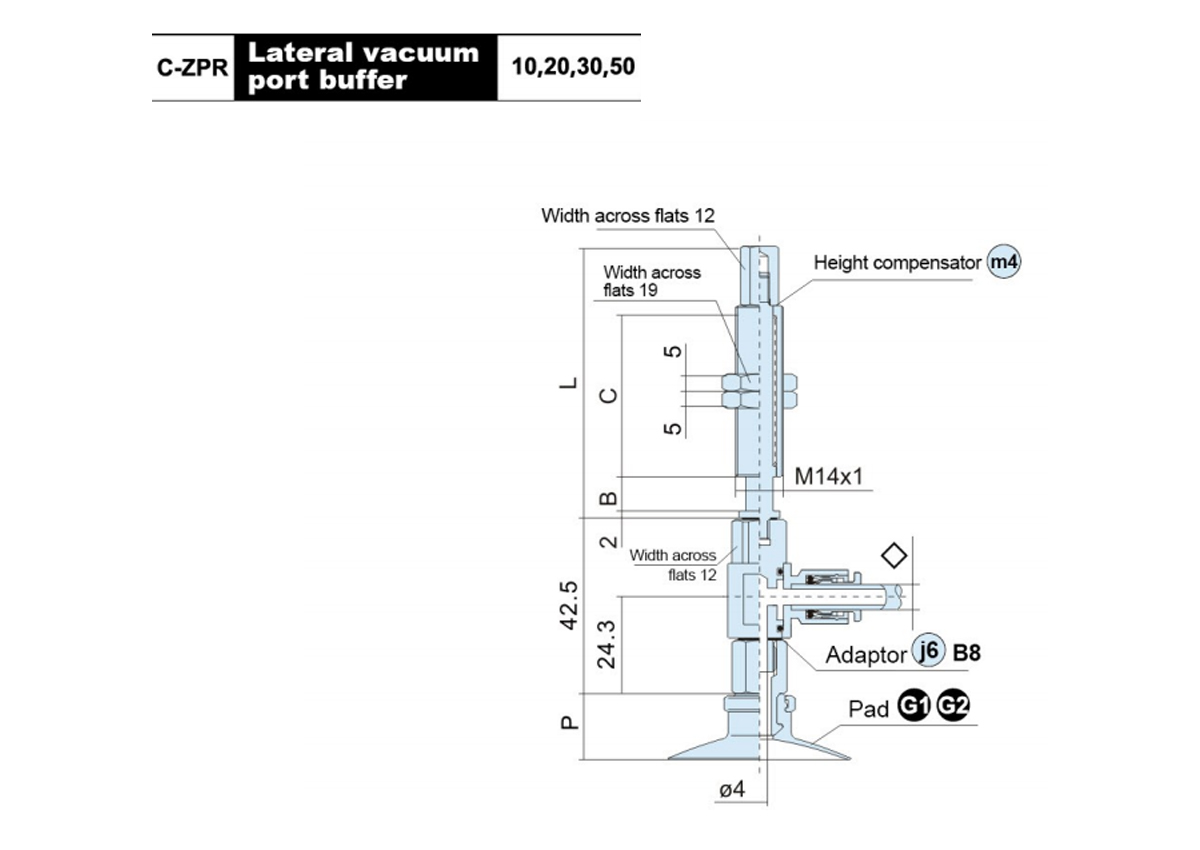

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16

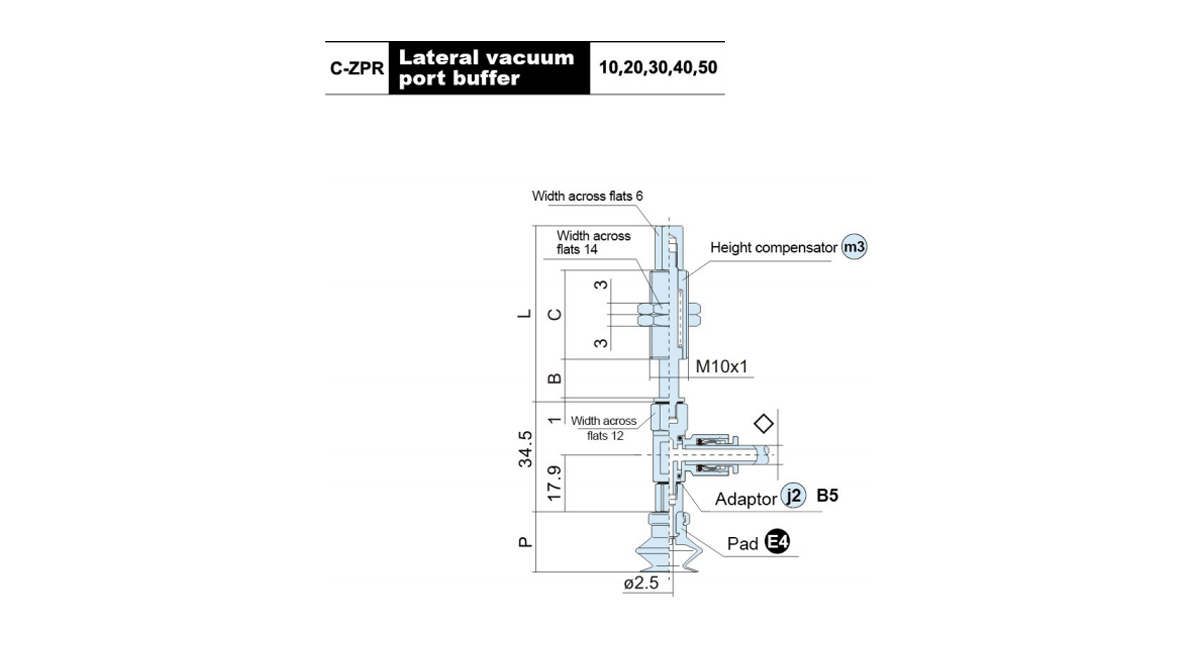

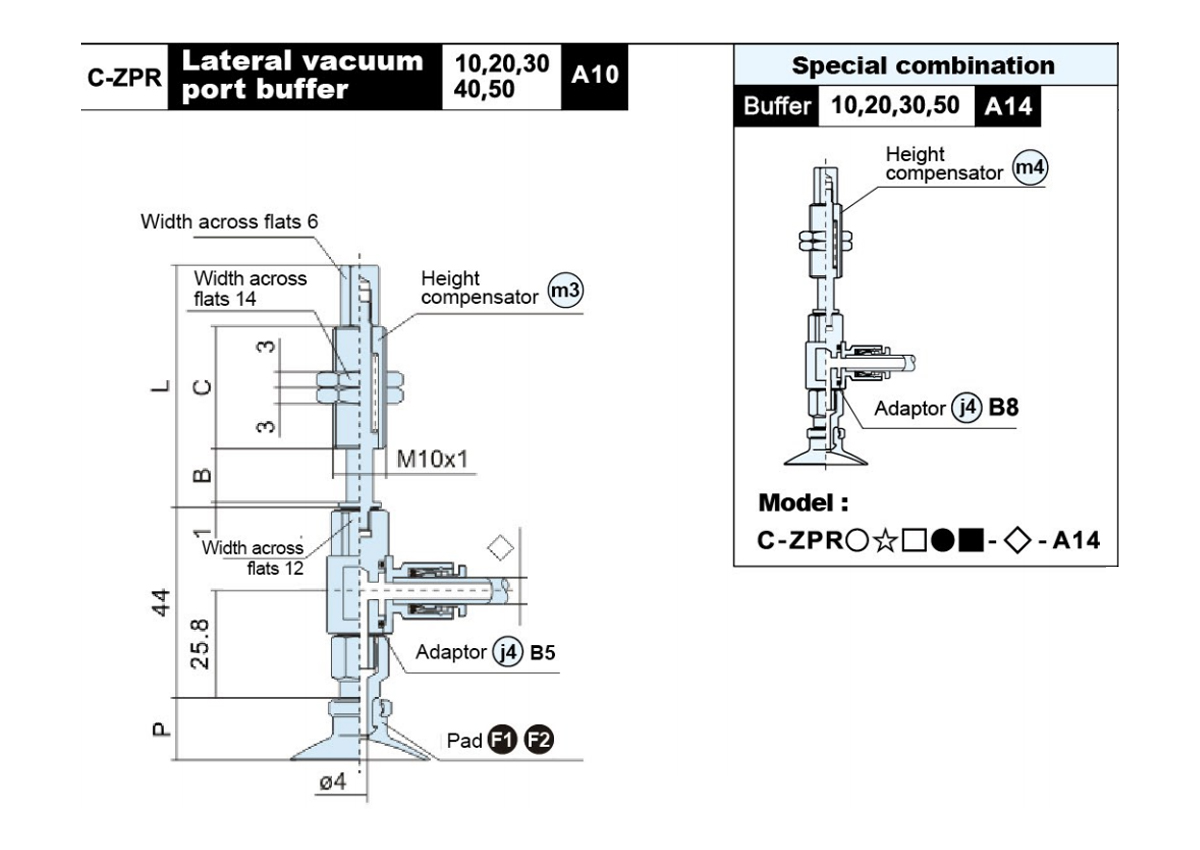

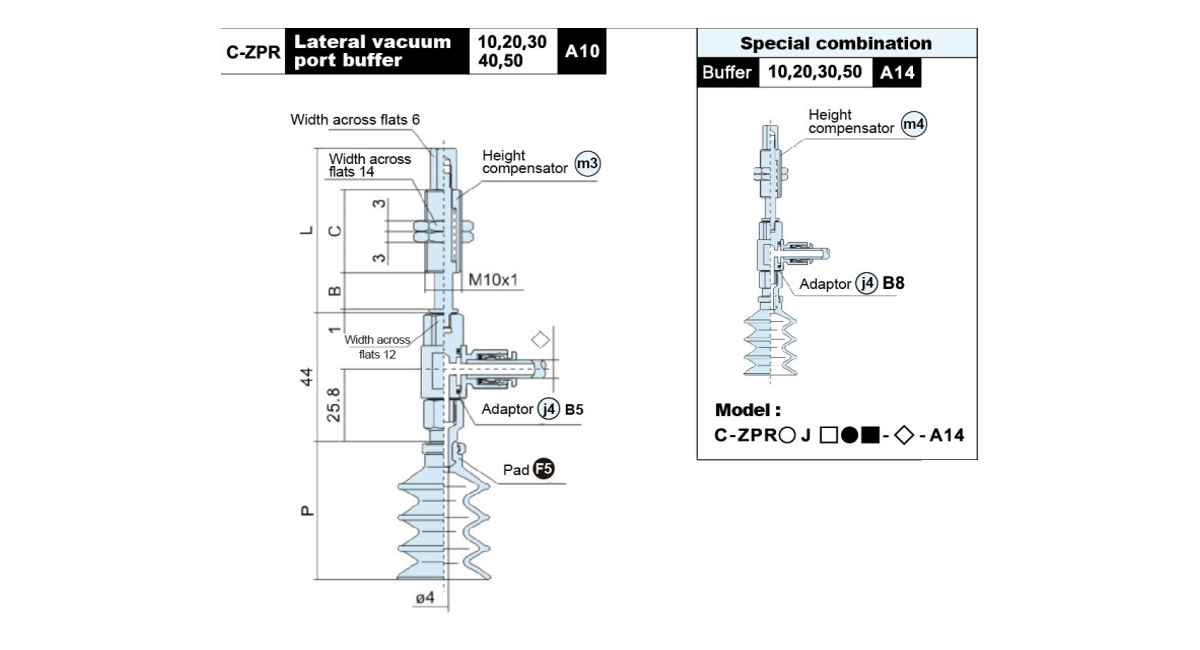

    C-ZPR○☆□●10-◇-A10 10 23 45 12 12 12.5 ZPR2-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○☆□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10

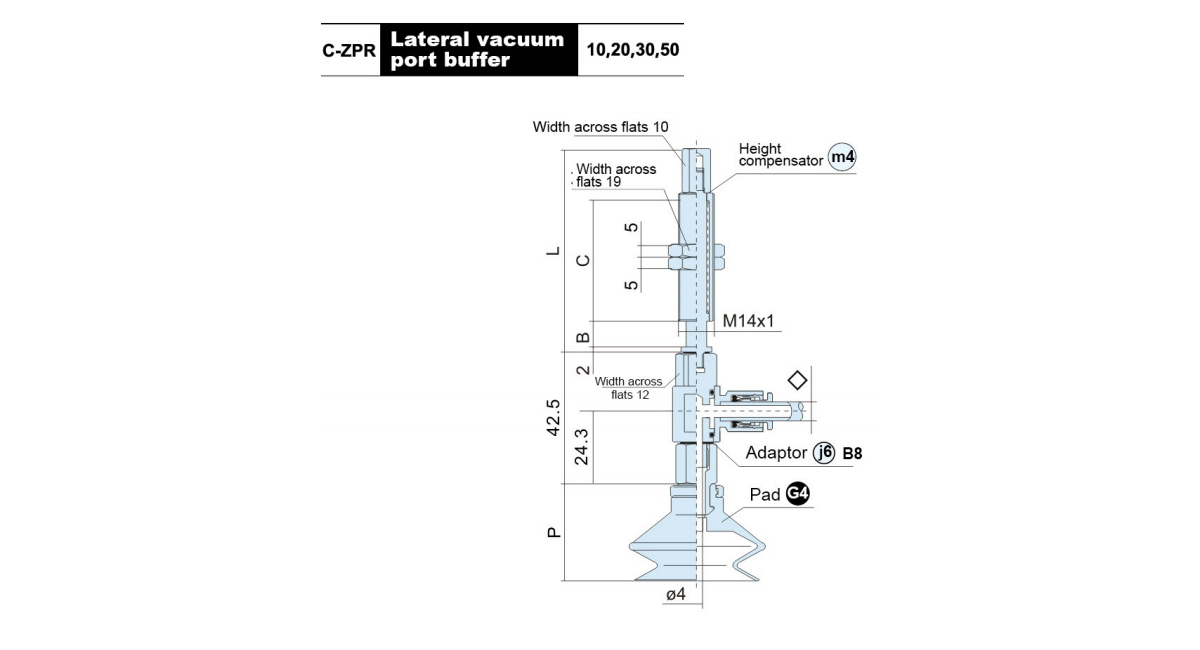

    C-ZPR○☆□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J),
    Unable to rotate(K)

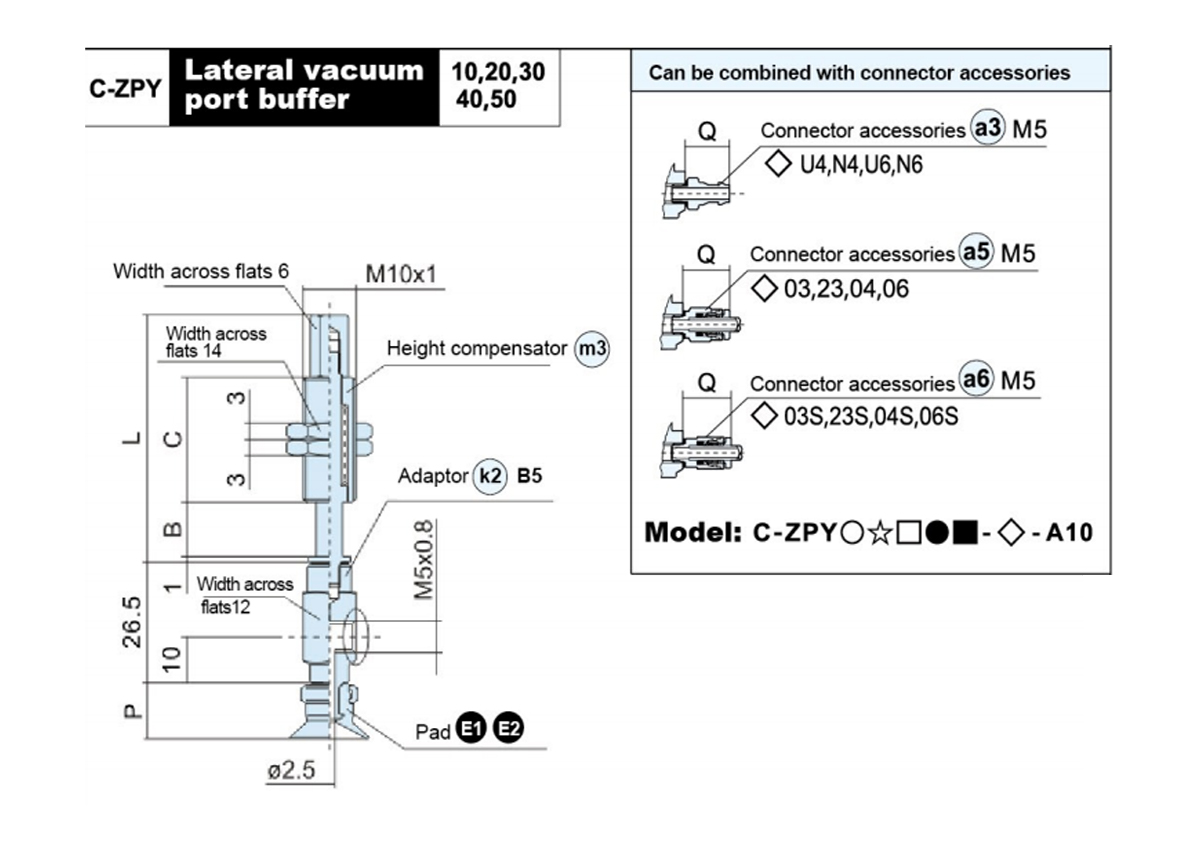

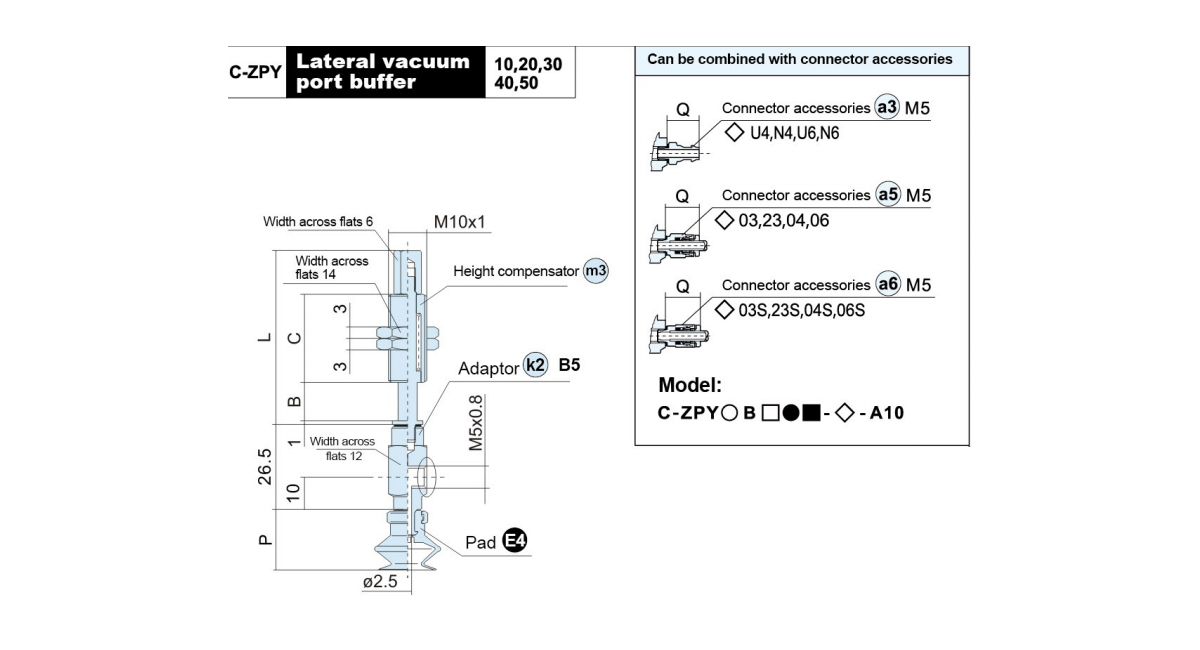

    Model B C L ○Pad Diameter P m3 j⑫
    Bumper Support Model
    10 13 16
    C-ZPY○☆□●10-B5-A10 10 23 45 12 12 12.5 ZPY2-●10-B5-A10
    C-ZPY○☆口●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○☆□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with  ribs(C)
    ●   Height   compensator   type:Rotative(J),
    ■ Buffer stroke(mm):10,20,30,40,50  Unable to rotate(K)

    Model A B C D L ○ Pad diameter P Adaptor Model
    20 25 32

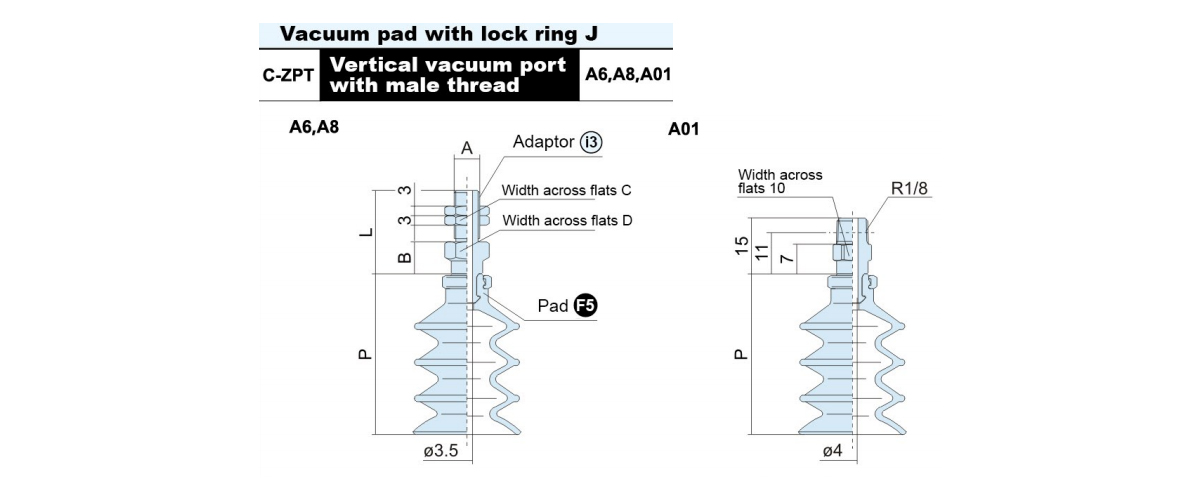

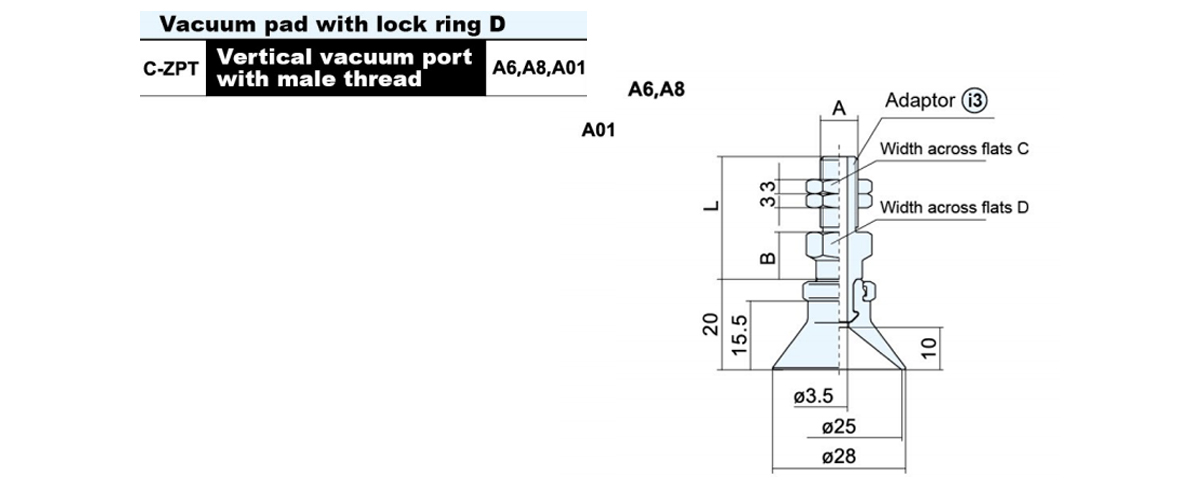

    C-ZPT○☆□-A6 M6×1.0 5 8 8 31 14 14 14.5 ZPT3-A6
    C-ZPT○☆□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○☆□-A01 - - - - - ZPT3-A01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

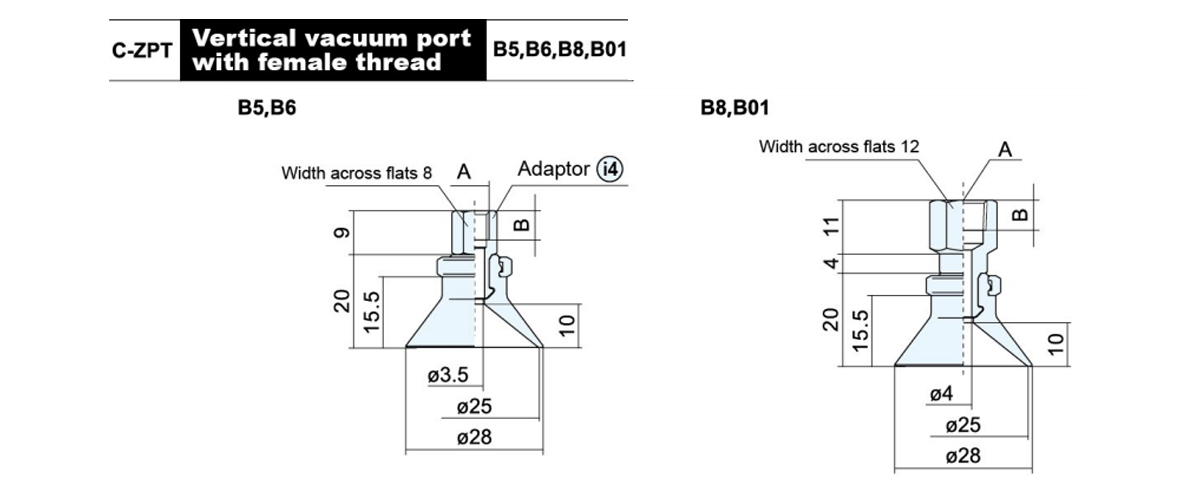

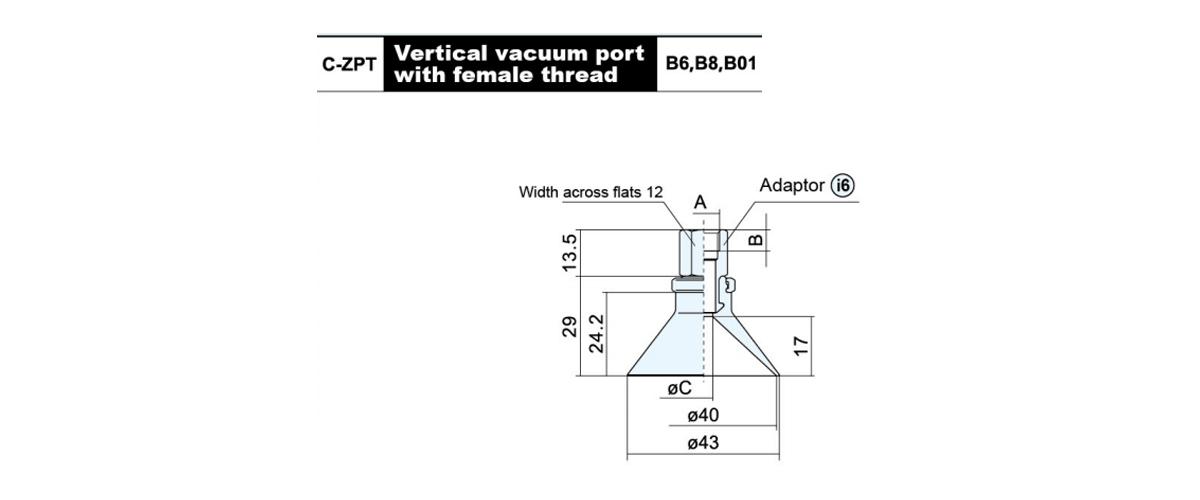

    Model A B ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPT○☆□-B5 M5×0.8 5 14 14 14.5 ZPT3-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○☆□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

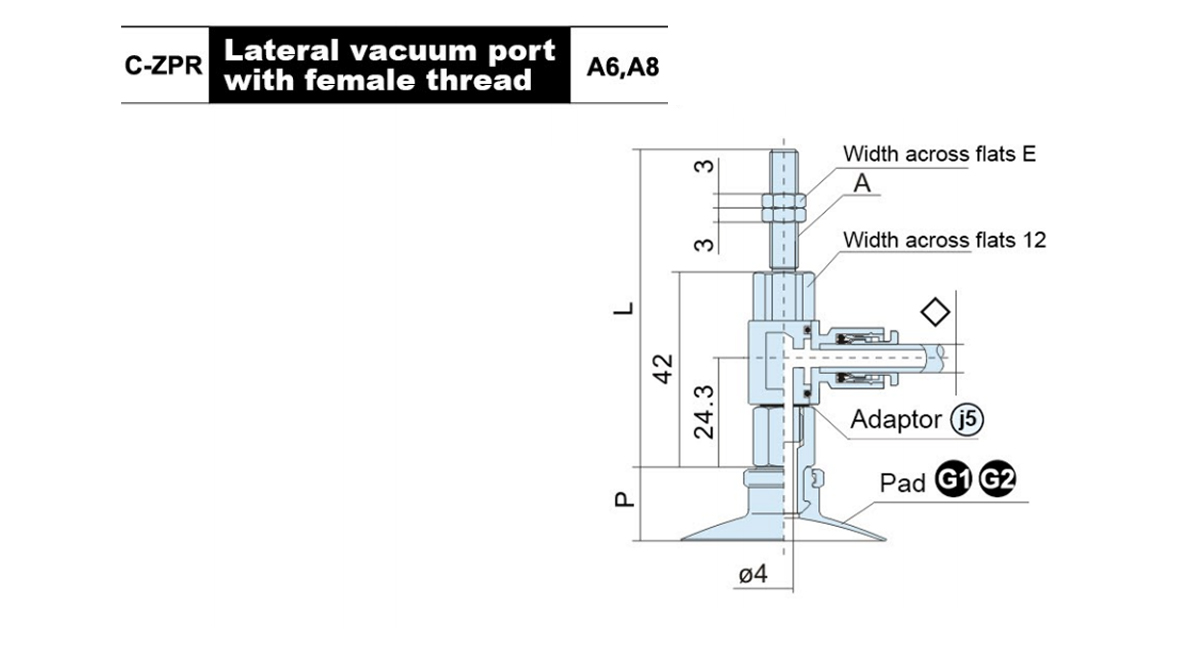

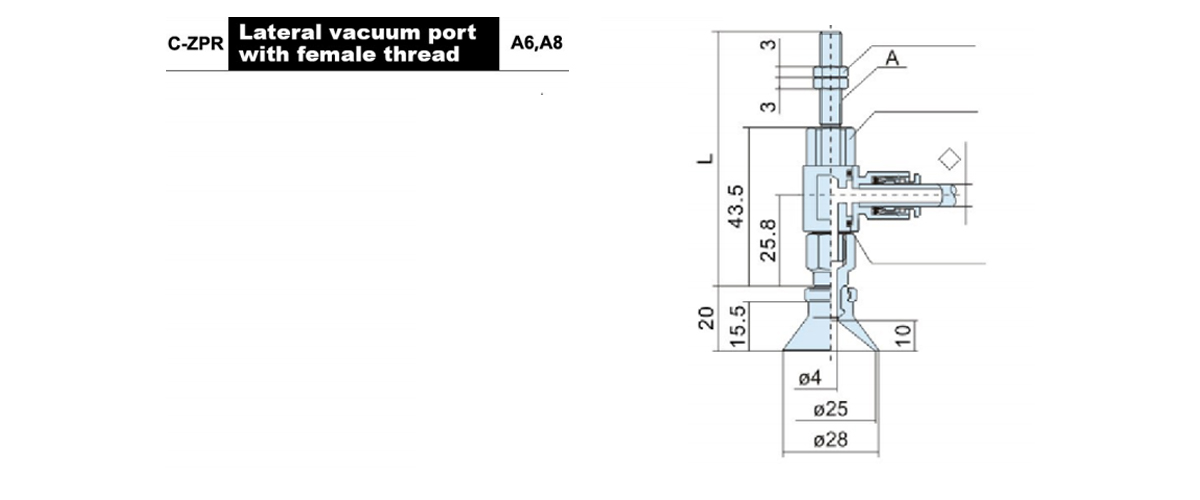

    Model A E L ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPR○☆□-◇-A6 M6×1.0 8 69.5 14 14 14.5 ZPR3-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)    ◇Vacuum port connection:04,06,08

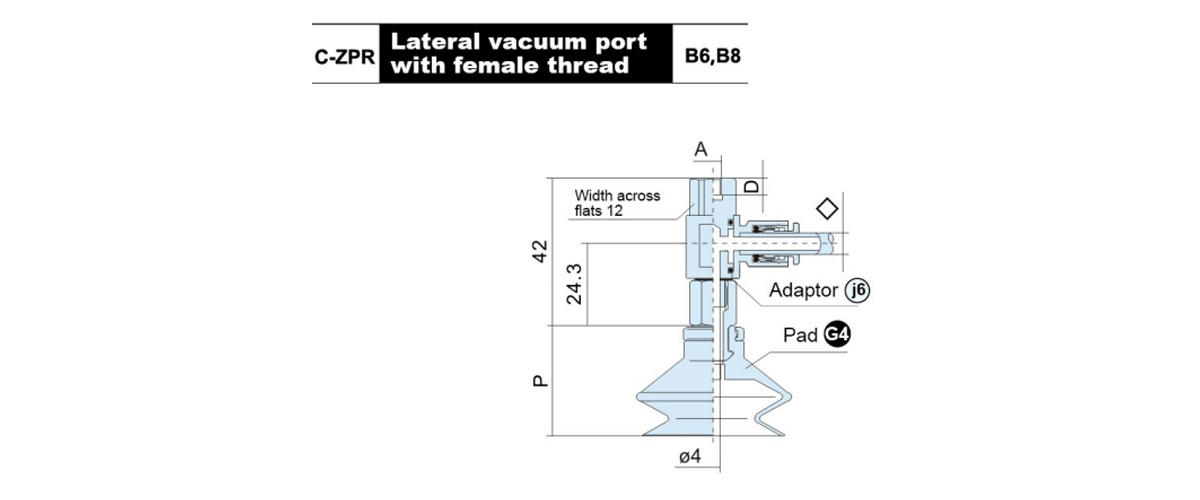

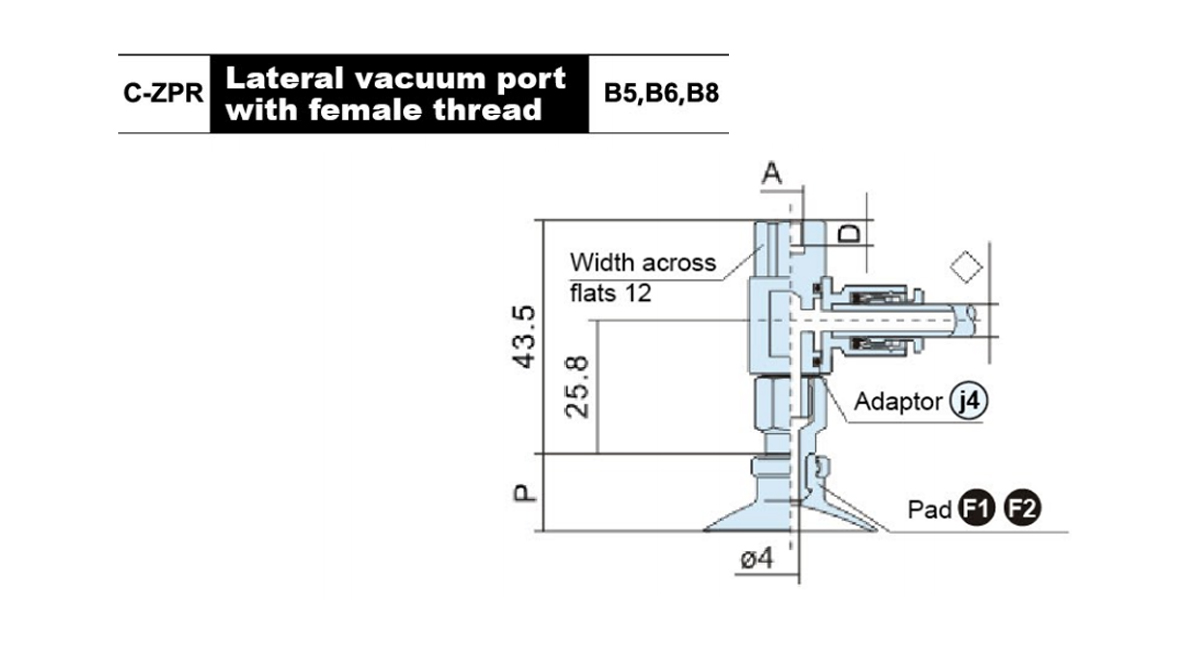

    Model A D ○ Pad diameter P Adaptor Model
    20 25 32
    C-ZPR○☆口 - ◇-B5 M5×0.8 5 14 14 14.5 ZPR3-◇-B5

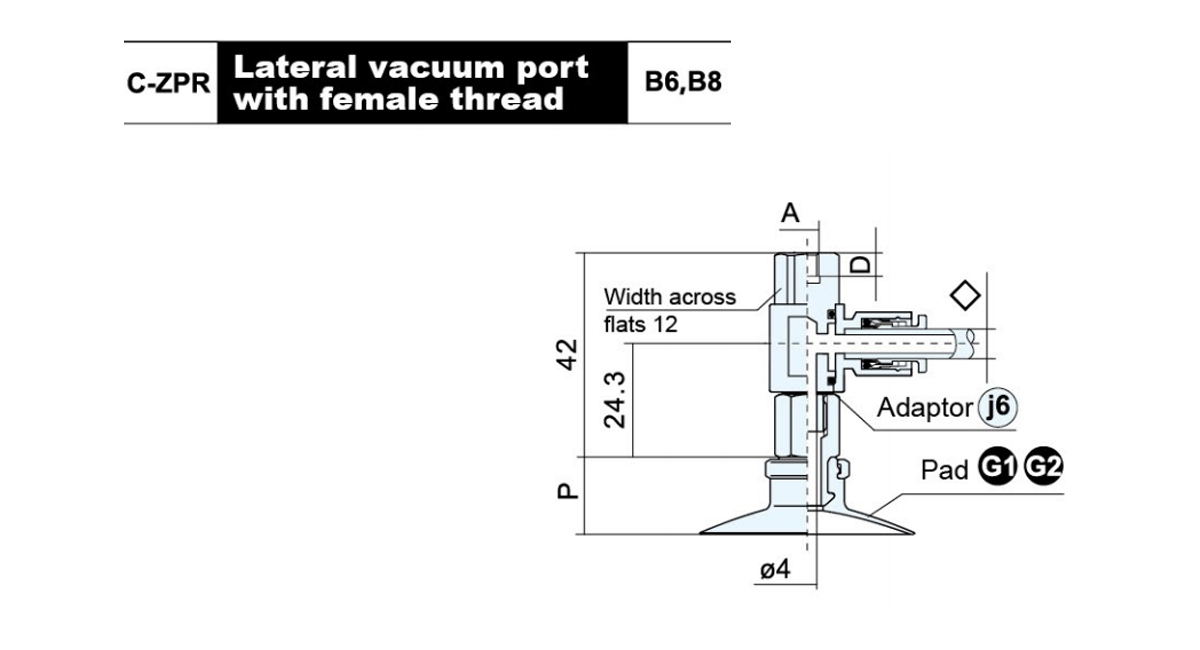

    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)          Vacuum port connection:04,06,08

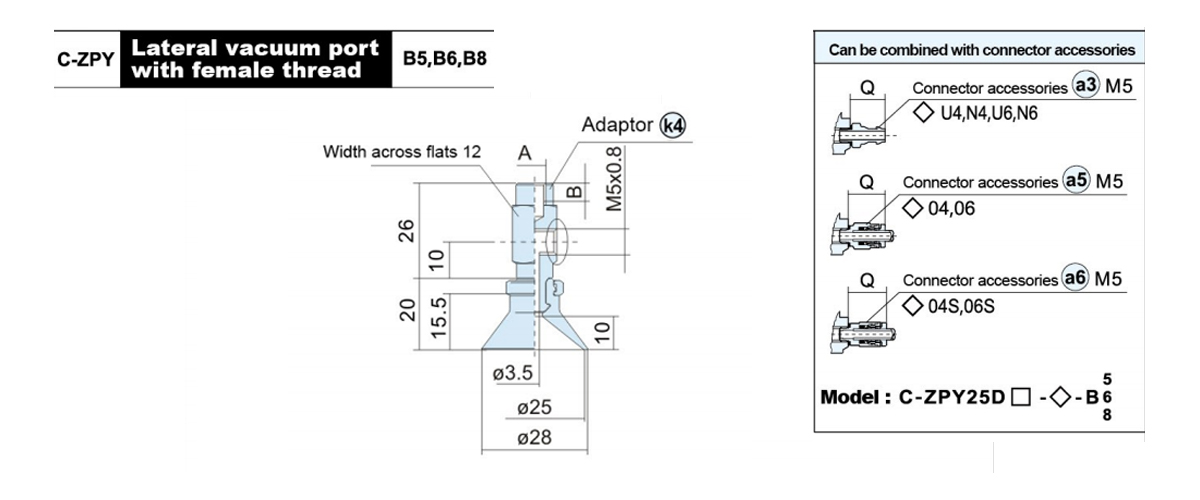

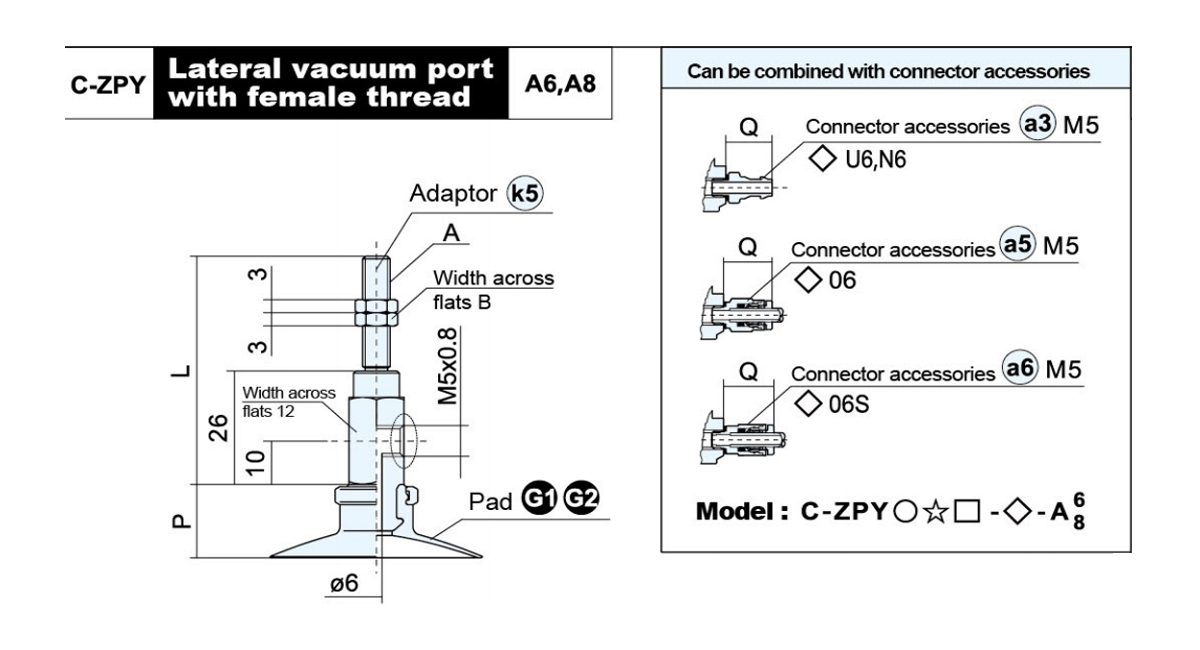

    Model A B L ○Pad diameter P Adaptor Model
    20 25 32

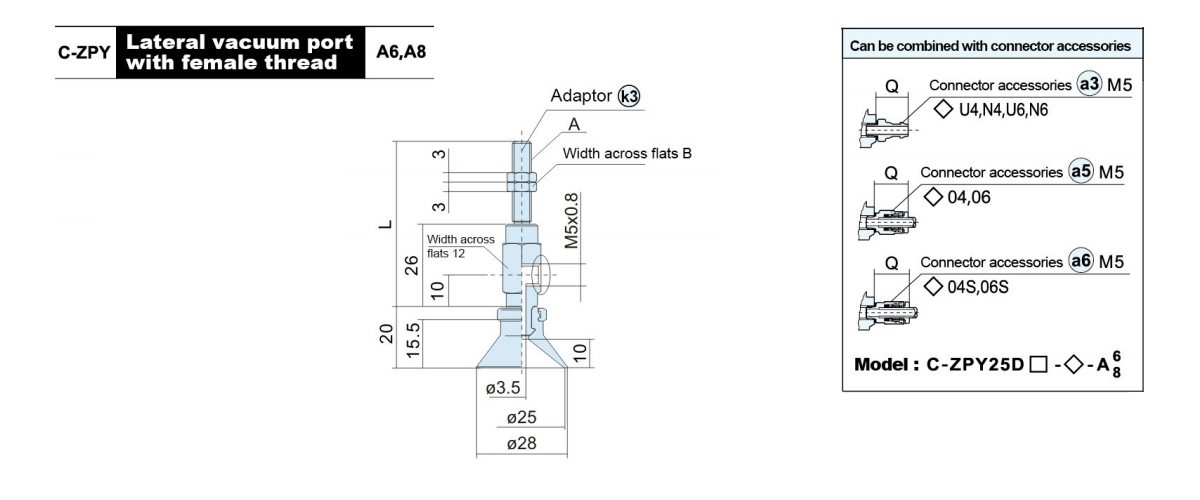

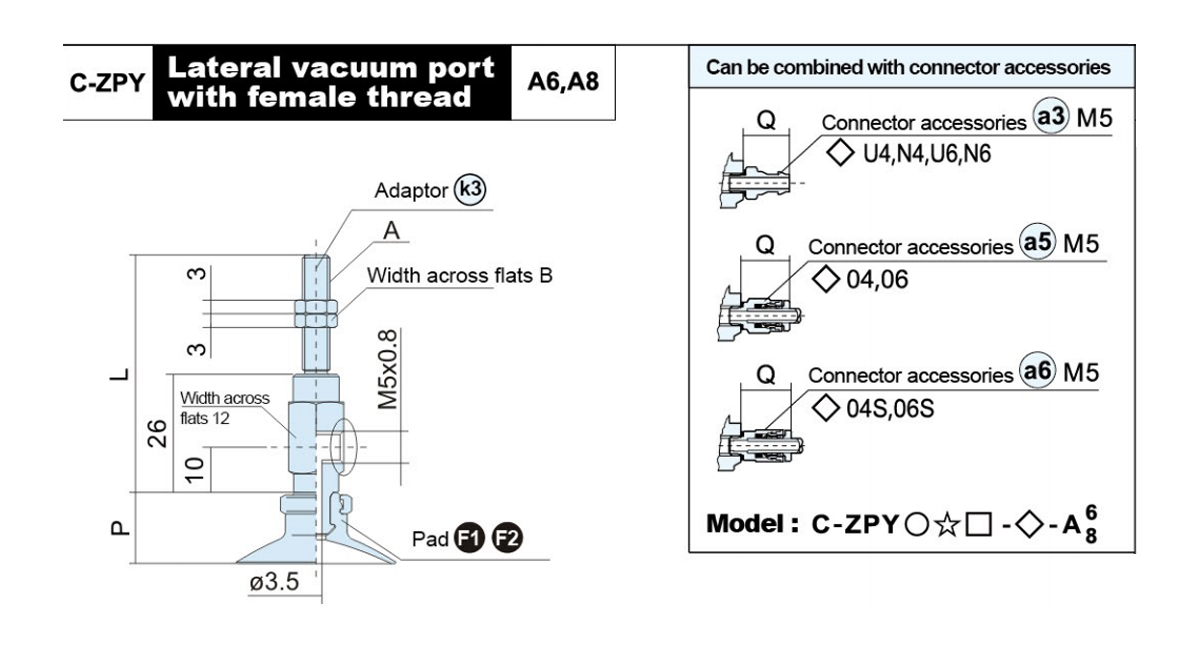

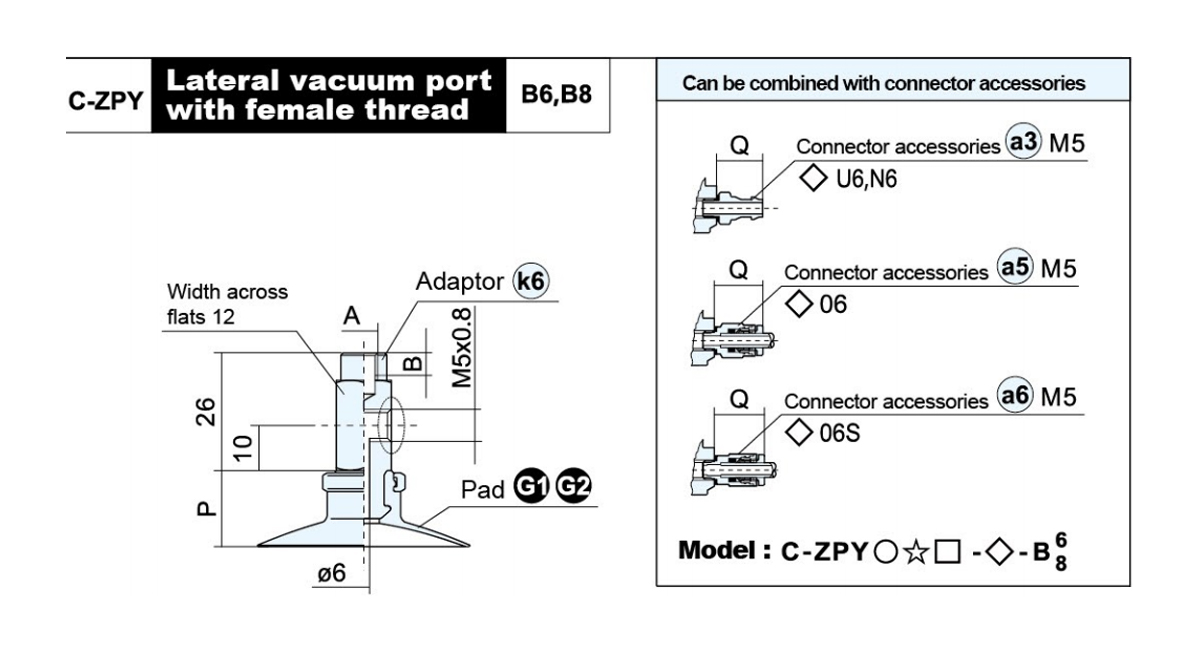

    C-ZPY○☆□-B5-A6 M6×1.0 8 54 14 14 14.5 ZPY3-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPY○☆□-B5-B5 M5×0.8 5 14 14 14.5 ZPY3-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

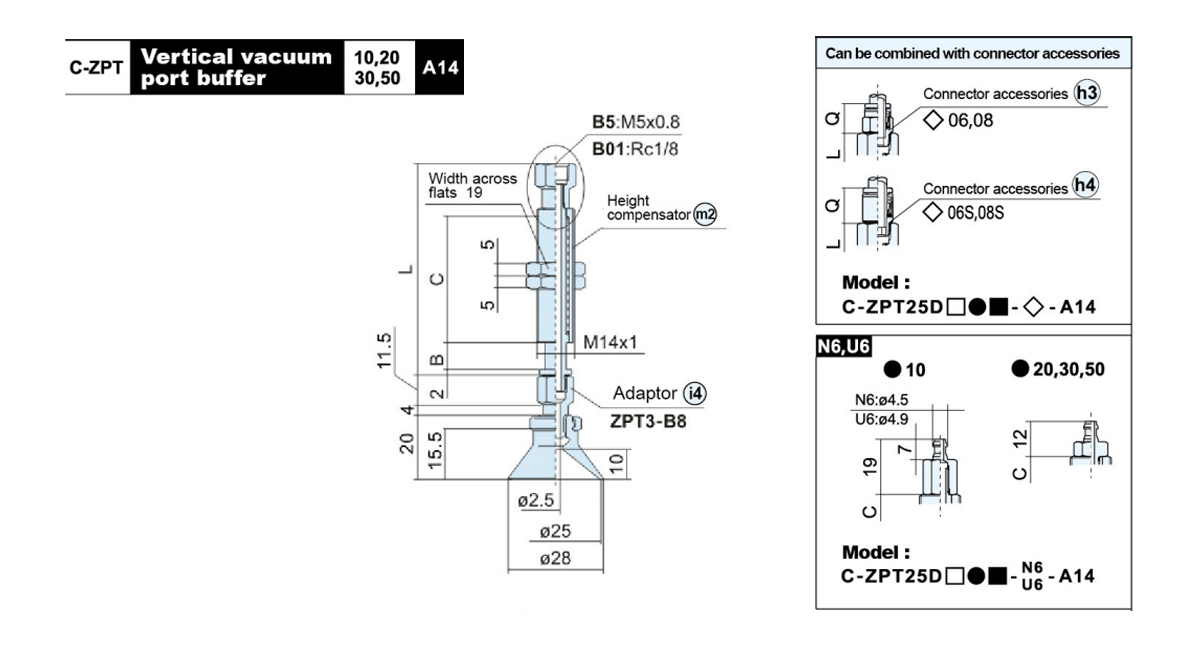

    Model B C L ○Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○☆□●10-B5-A10 10 23 47 14 14 14.5 ZPT3-●10-B5-A10
    C-ZPT○☆□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○☆□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○☆□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○☆□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ●Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,40,50                           Unable to rotate(K)

    Model B C L Pad
    U Diame
    Diameter     		P m2 i4
    Bumper Support Model
    20 25 32

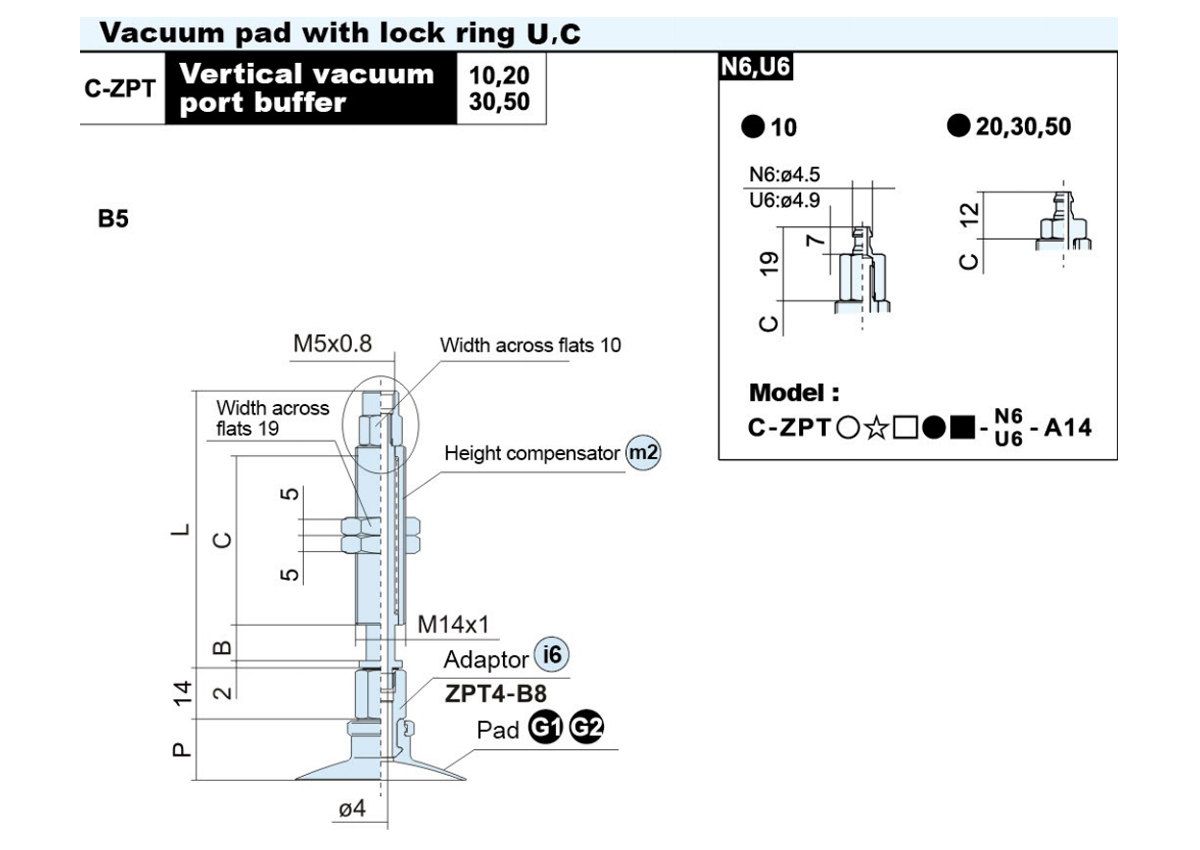

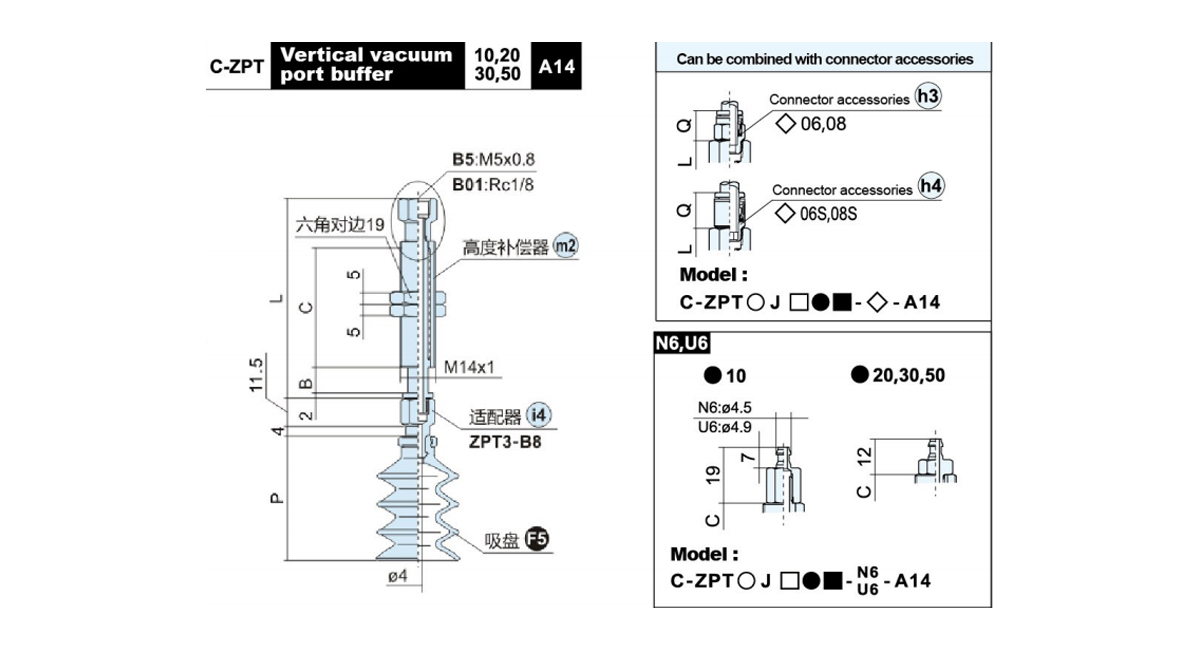

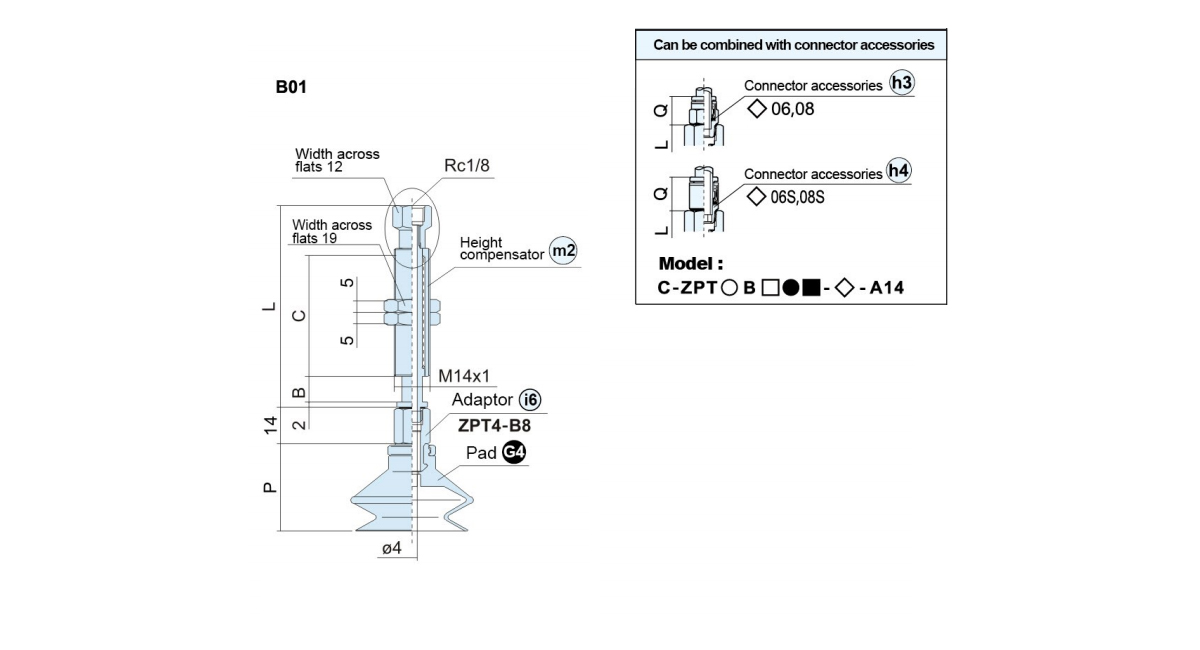

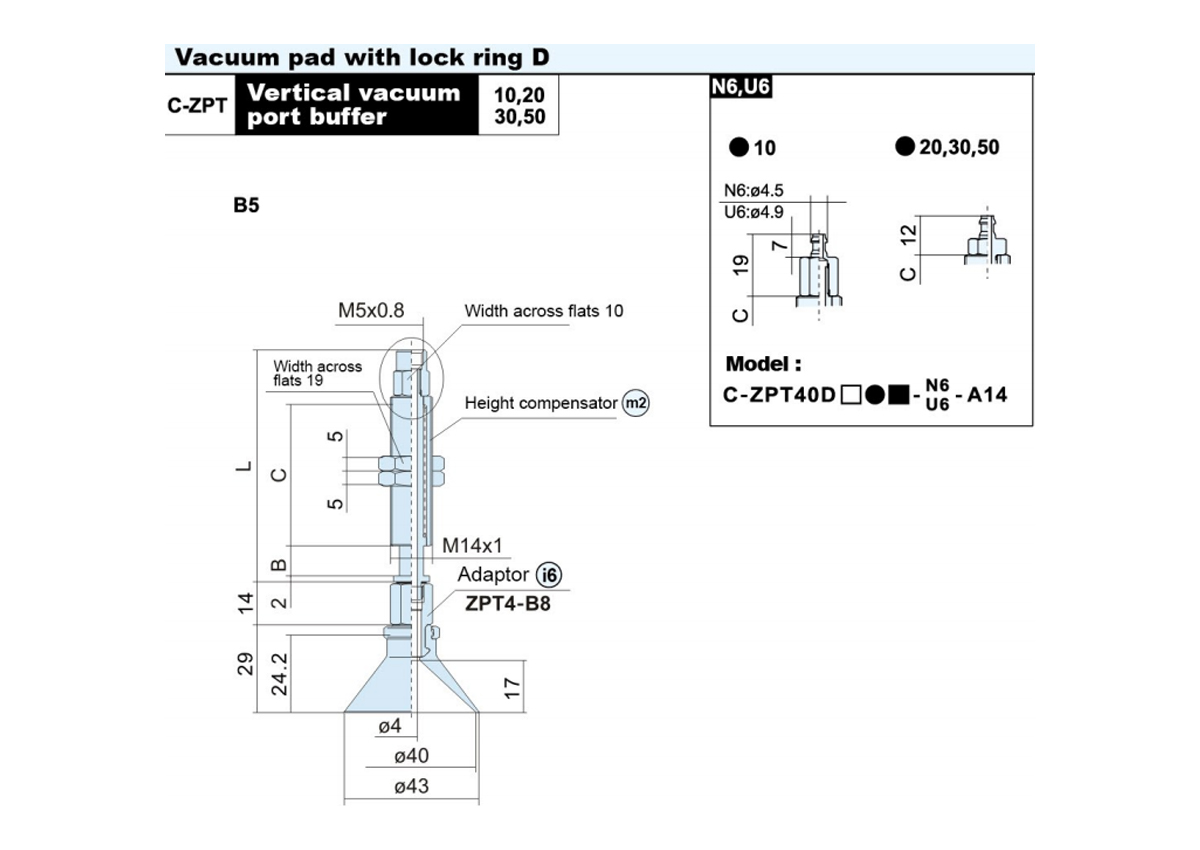

    C-ZPT○☆□●10-B5-A14 10 50 77 14 14 14.5 ZPT3-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT3-●30-B5-A14

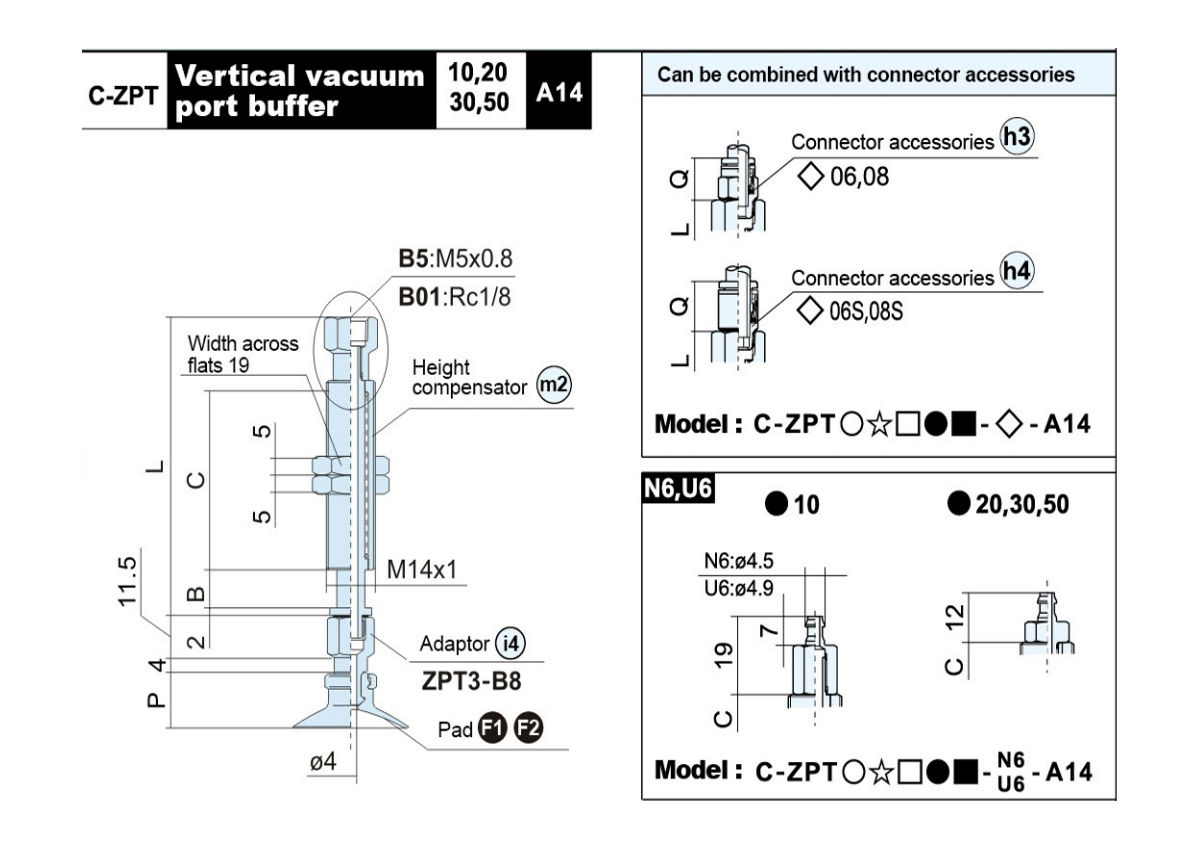

    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14

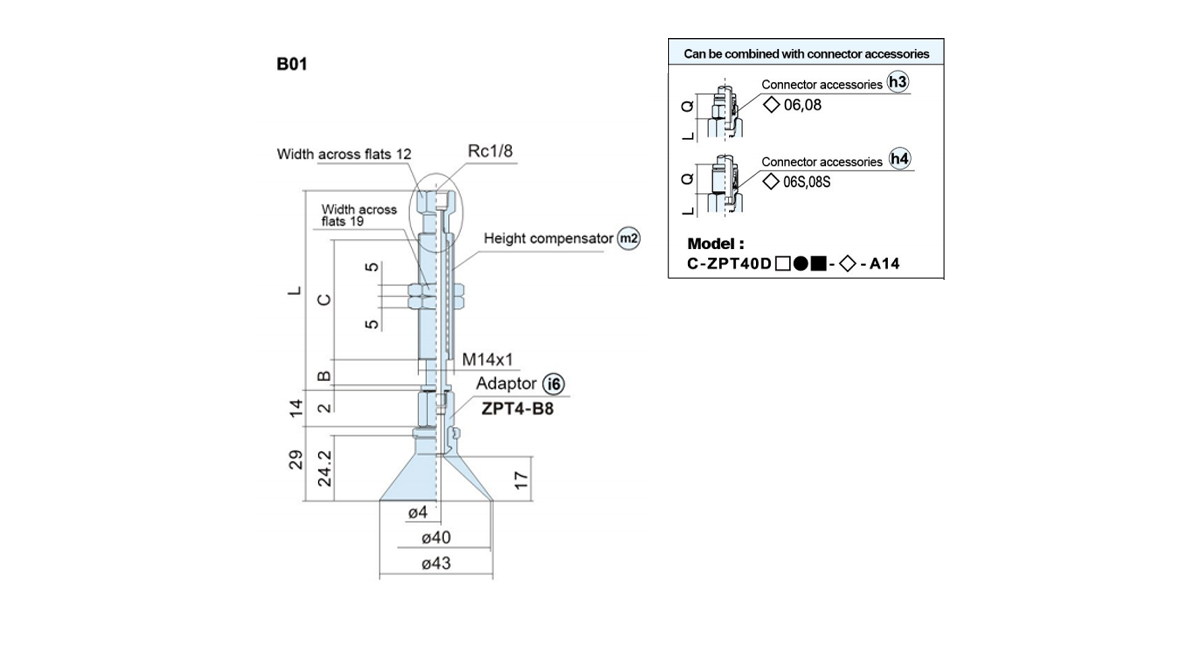

    C-ZPT○☆□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○Symbol  of  pad  diameter:20,25,32
    □Material:NBR(N),Silicone(S)
    ☆ Pad  type:Flat(U),with   ribs(C)
    ●   Height  compensator  type:Rotative(J)
    ■    Buffer   stroke(mm):10,20,30,50                                                         Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 ④
    Bumper Support Model
    20 25 32

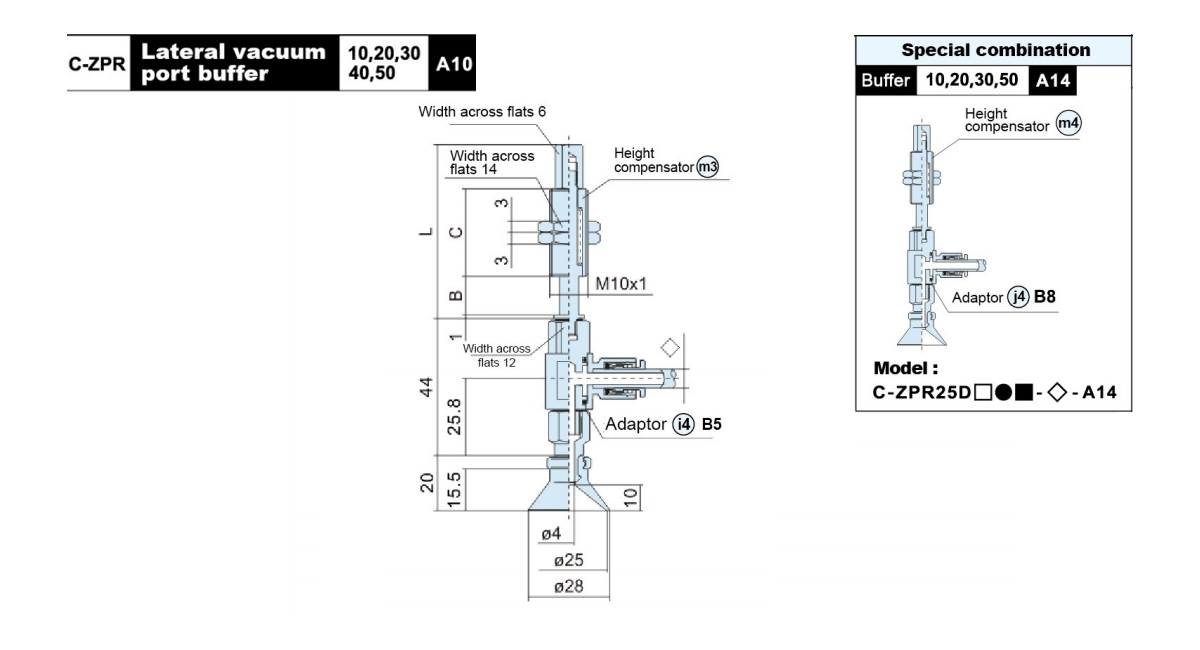

    C-ZPR○☆□●10-◇-A10 10 23 45 14 14 14.5 ZPR3-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○☆口●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ◇Vacuum port connection:04,06,08
    Unable to rotate(K)

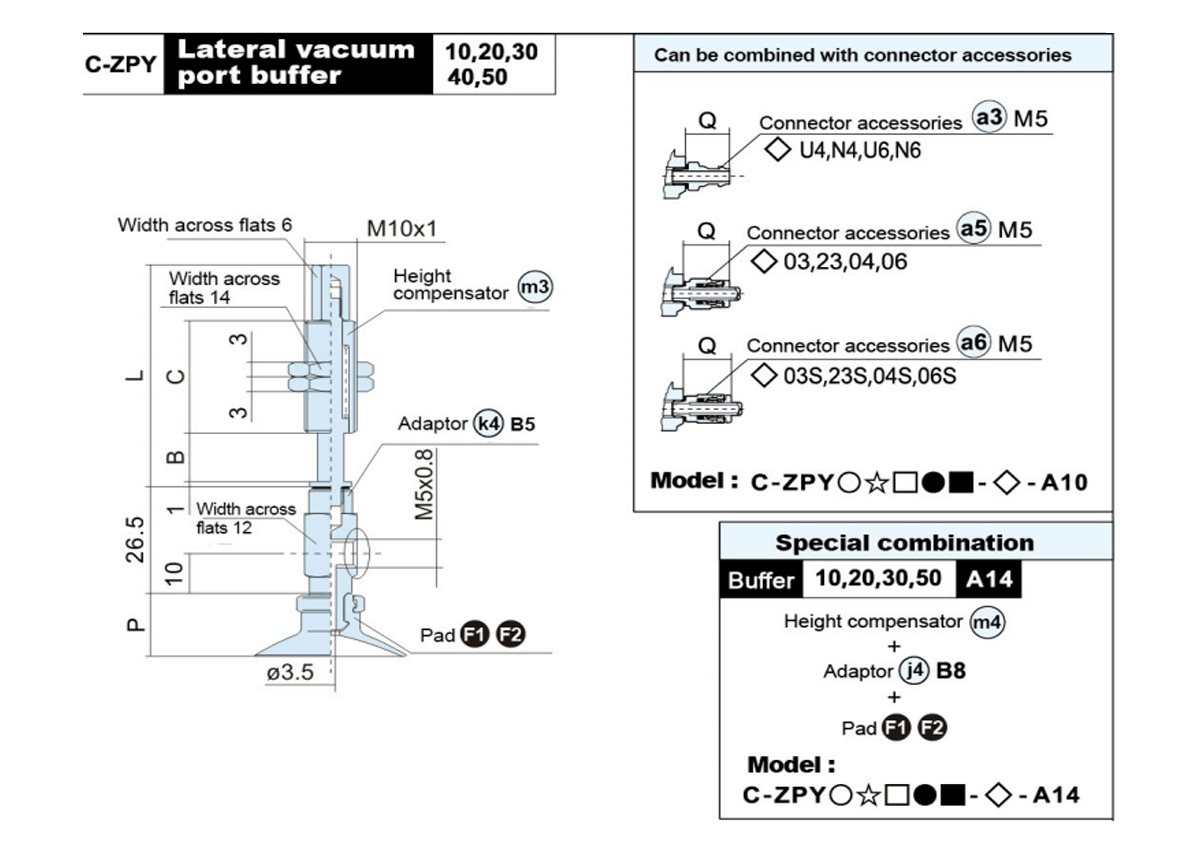

    Model B C L ○Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○☆□●10-B5-A10 10 23 45 14 14 14.5 ZPY3-●10-B5-A10
    C-ZPY○☆□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○☆口●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,50
    Unable to rotate(K)

    Model A ØB C L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPT○☆□-A6 M6×1.0 3.5 8 32 18.5 19.5 ZPT4-A6
    C-ZPT○☆□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○☆□-A01 - ZPT4-A01
    ○Symbol of pad diameter:40,50     ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

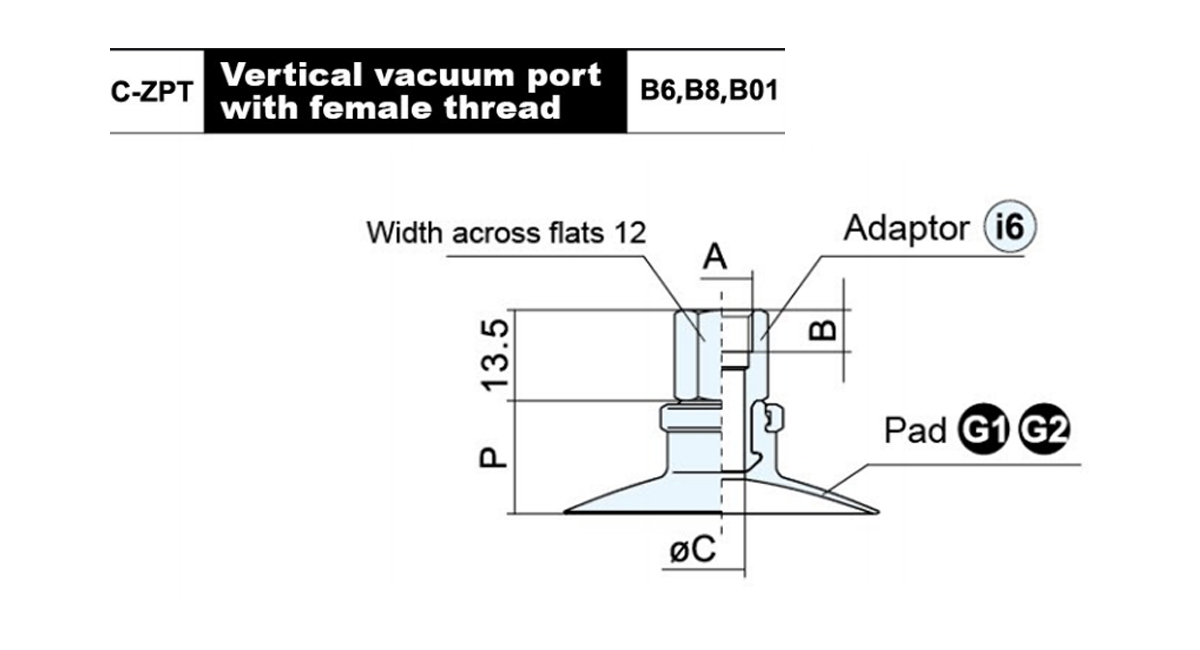

    Model A B oC ○Pad Diameter P Adaptor Model
    40 50
    C-ZPT○☆□-B6 M6×1.0 6 4.5 18.5 19.5 ZPT4-B6
    C-ZPT○☆□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT4-B01
    ○Symbol of pad diameter:40,50    ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40 50

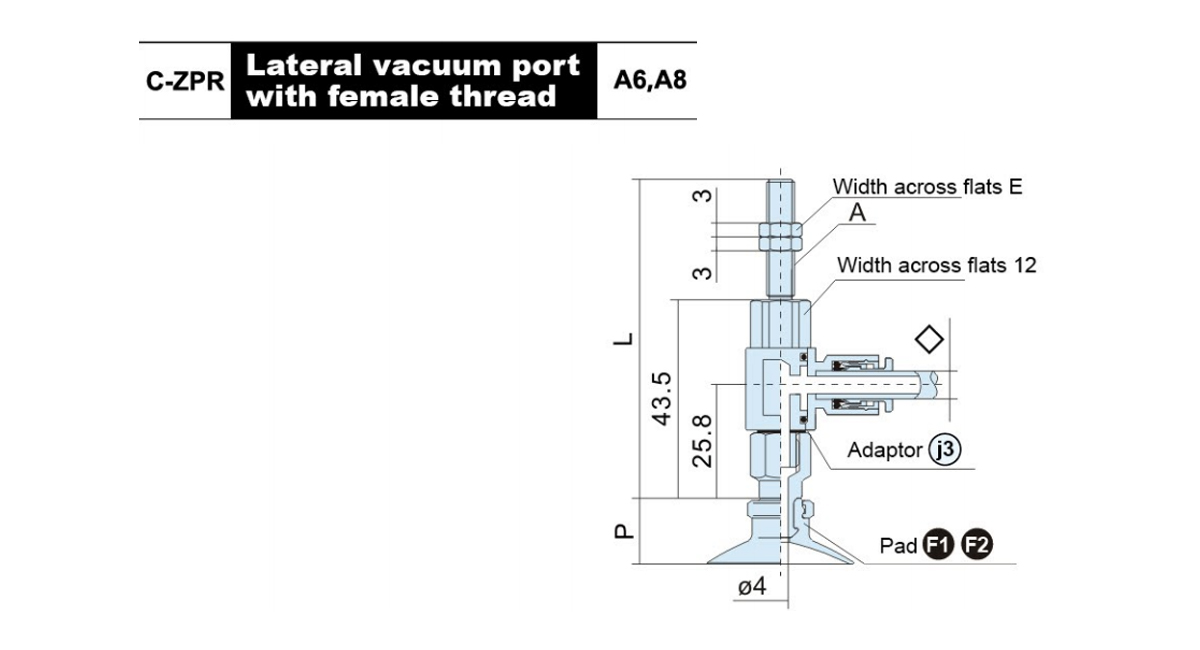

    C-ZPR○☆□-◇-A6 M6×1.0 8 68 18.5 19.5 ZPR4-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor Model
    40 50

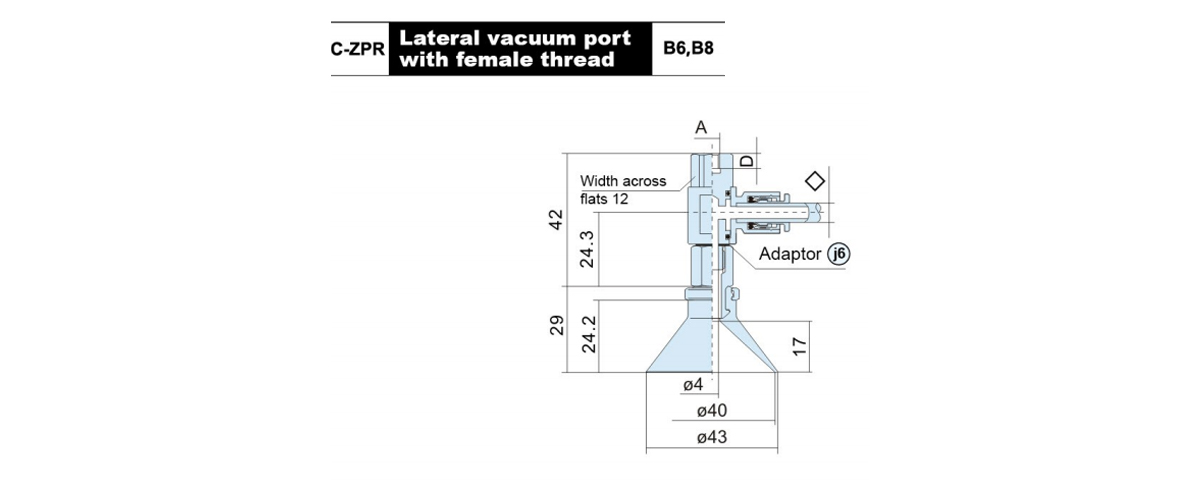

    C-ZPR○☆口 - ◇ -B6 M6×1.0 6 18.5 19.5 ZPR4-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPY○☆□-B5-A6 M6×1.0 8 54 18.5 19.5 ZPY4-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○Symbol of pad diameter:40,50    ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    40 50
    C-ZPY○☆□-B5-B6 M6×1.0 6 18.5 19.5 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:40,50   ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50

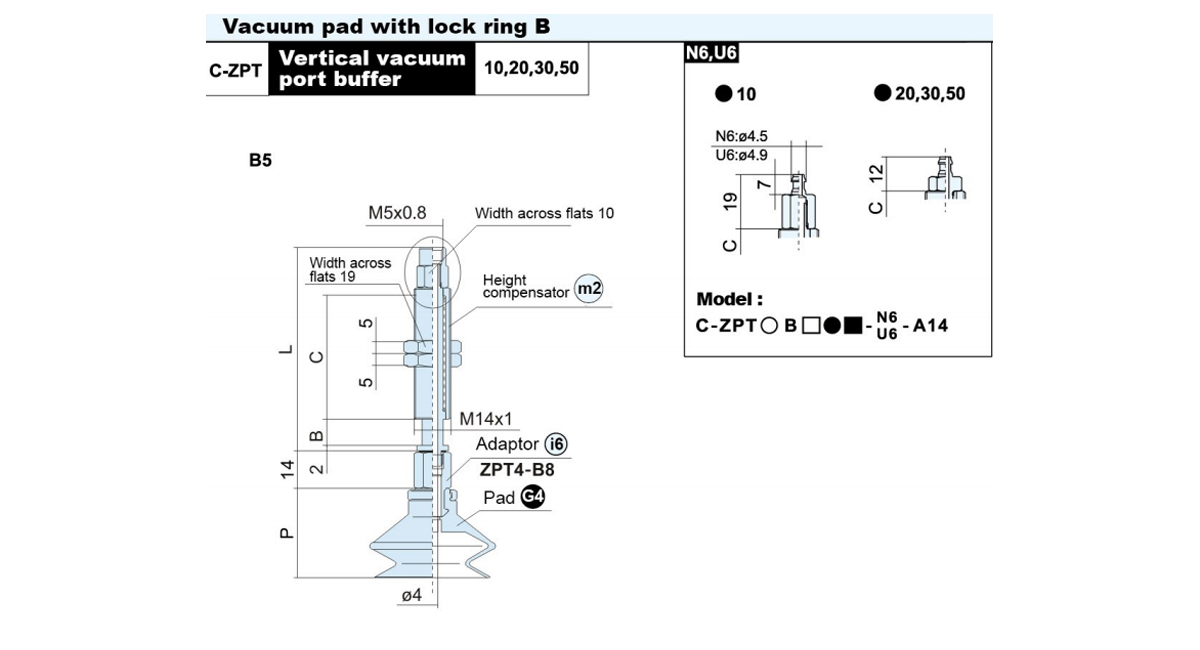

    C-ZPT○☆□●10-B5-A14 10 50 77 18.5 19.5 ZPT4-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

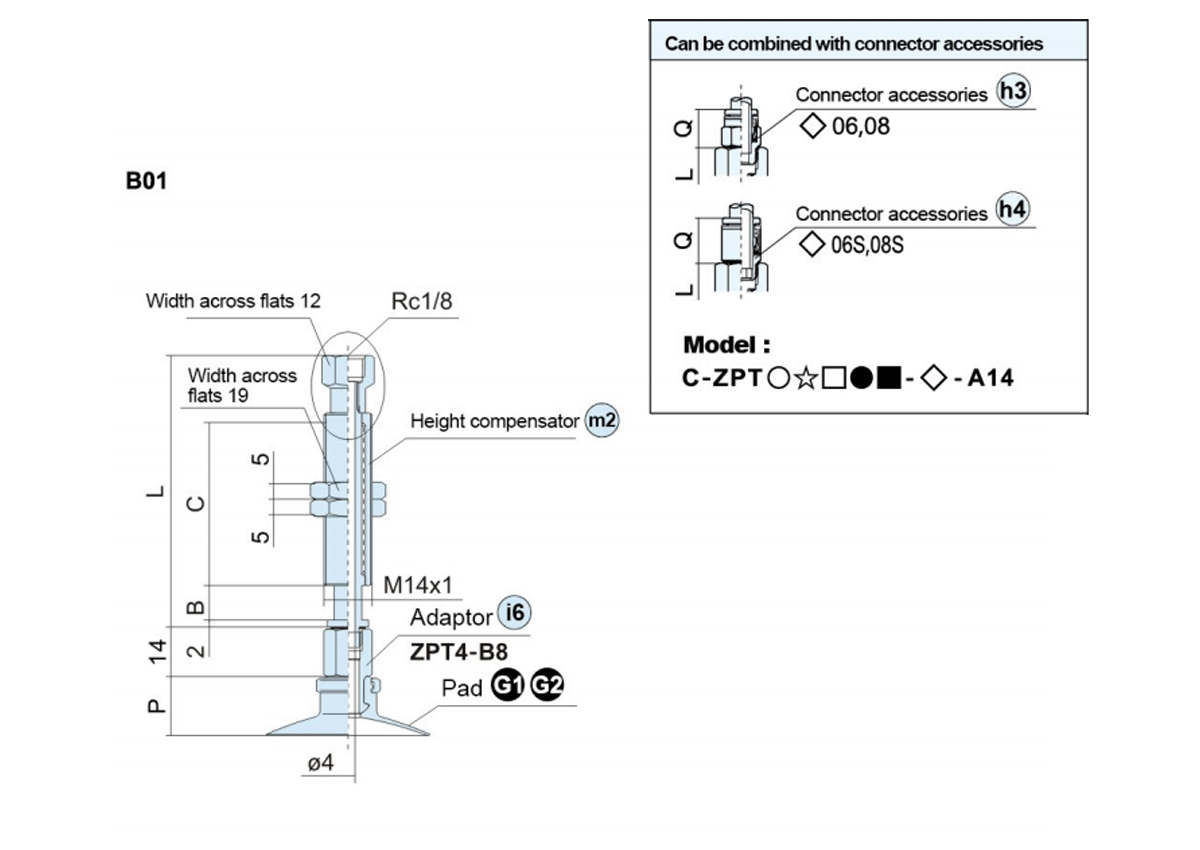

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B01-A14 10 50 78.5 18.5 19.5 ZPT4-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPR4-●10-◇-A14
    C-ZPR○☆□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○☆□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○☆□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)
    ◇Vacuum port connection:06,08
    Unable to rotate(K)

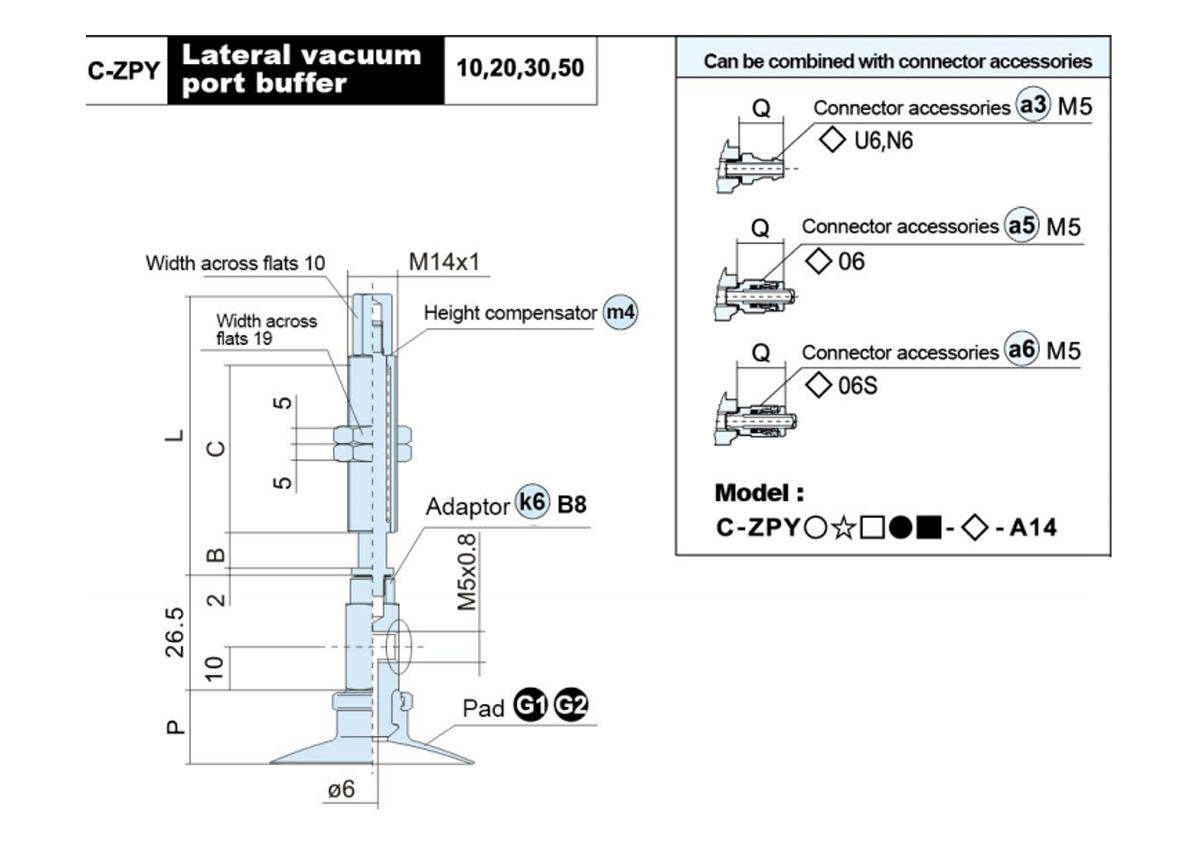

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPY4-●10-◇-A14
    C-ZPY○☆口●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○☆□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○☆□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad diameter P Adaptor Model
    10 16
    C-ZPT○D□-A5 M5×0.8 7 4 26 15 16 ZPT2-A5
    C-ZPT○D□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○D□-A01 - - ZPT2-A01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter  P Adaptor Model
    10 16
    C-ZPT○D□-B5 M5×0.8 5 15 16 ZPT2-B5
    C-ZPT○D□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○D□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-A5 M5×0.8 4 7 55 15 16 ZPR2-◇-A5
    C-ZPR○D□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbo of pad diameter:10,16   □Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-B5 M5×0.8 5 15 16 ZPR2-◇-B5
    C-ZPR○D□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

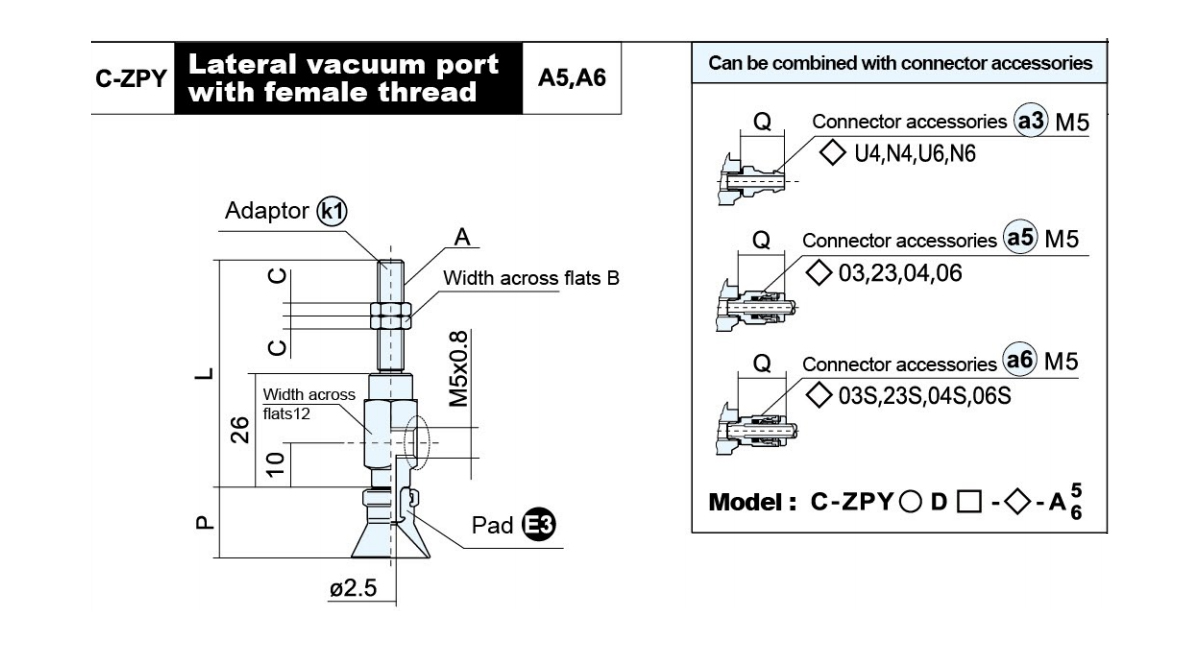

    Model A B C L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-A5 M5×0.8 7 4 47 15 16 ZPY2-B5-A5
    C-ZPY○D□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

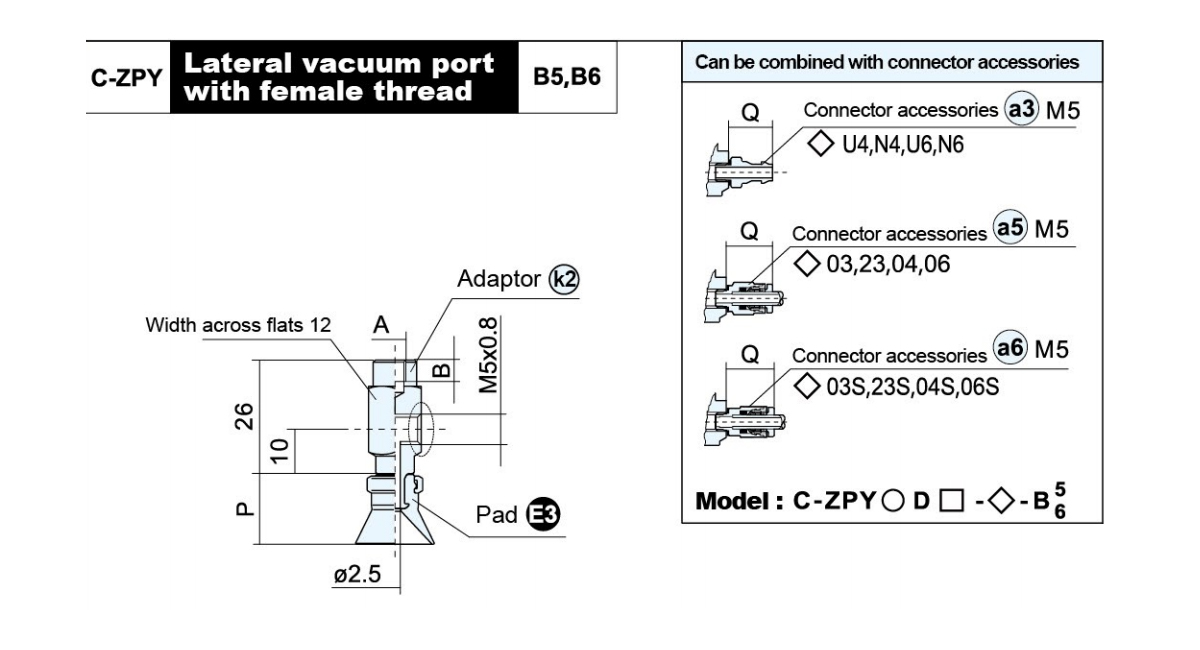

    Model A B ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-B5 M5×0.8 5 15 16 ZPY2-B5-B5
    C-ZPY○D□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P P m1 i2
    Bumper Support Model
    10 16

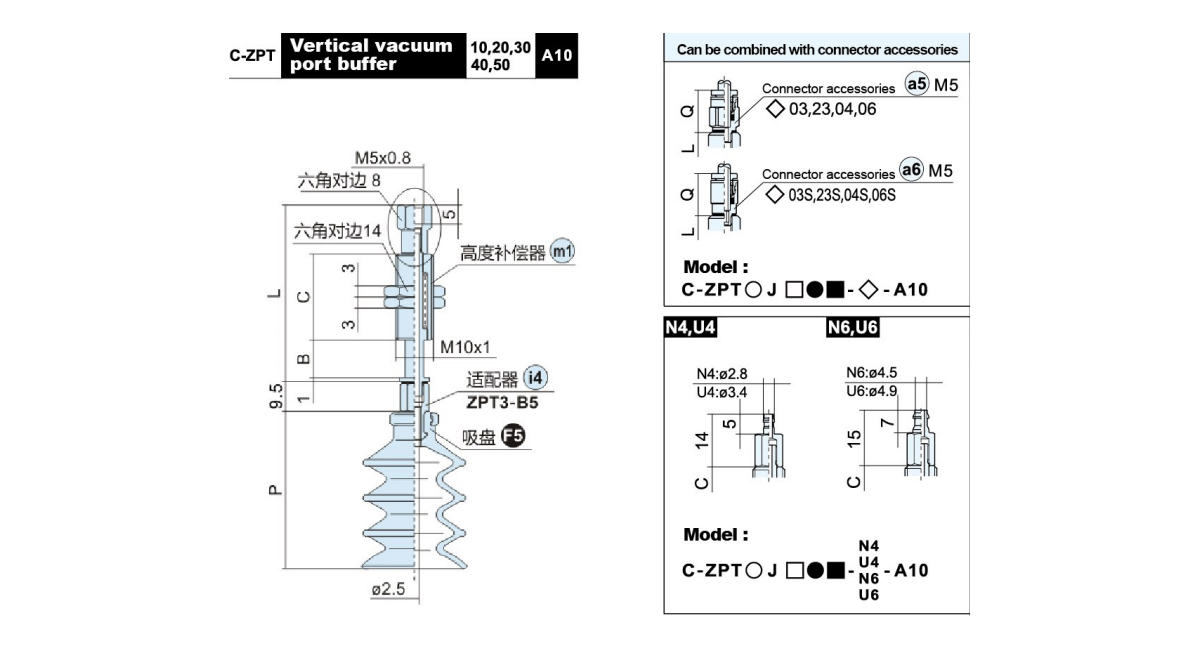

    C-ZPT○D□J10-B5-A10 10 23 47 15 16 ZPT2-J10-B5-A10
    C-ZPT○D□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○D□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○D□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○D□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

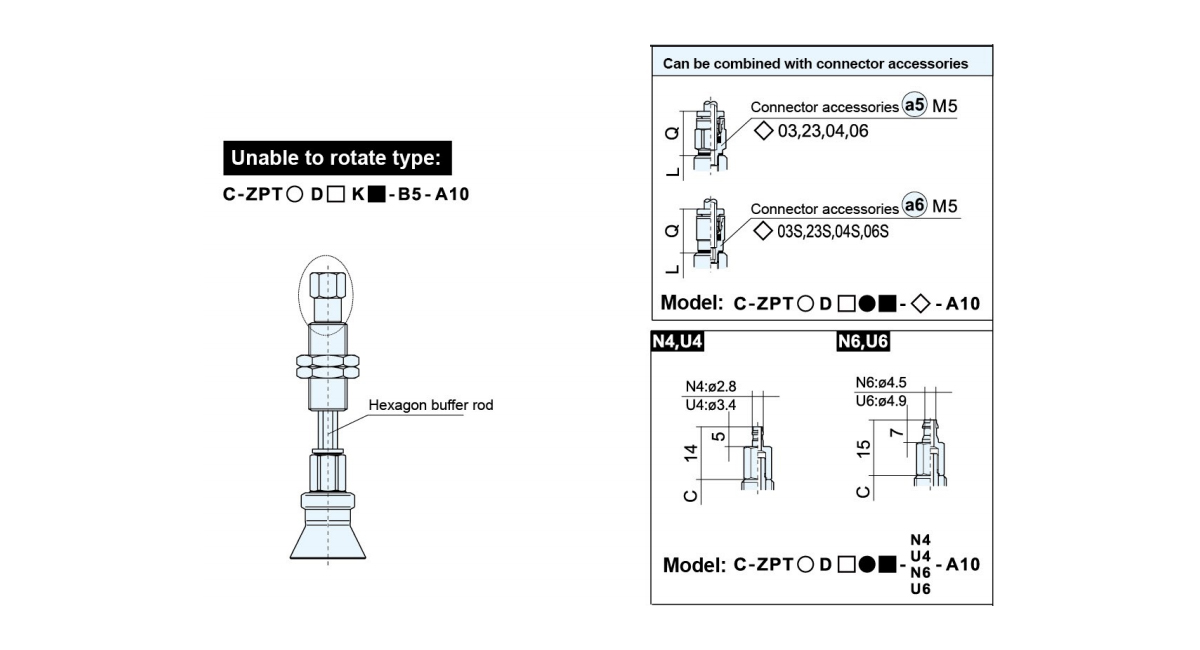

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□K10-B5-A10 10 23 47 15 16 ZPT2-K10-B5-A10
    C-ZPT○D□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○D□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○D□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○D□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16

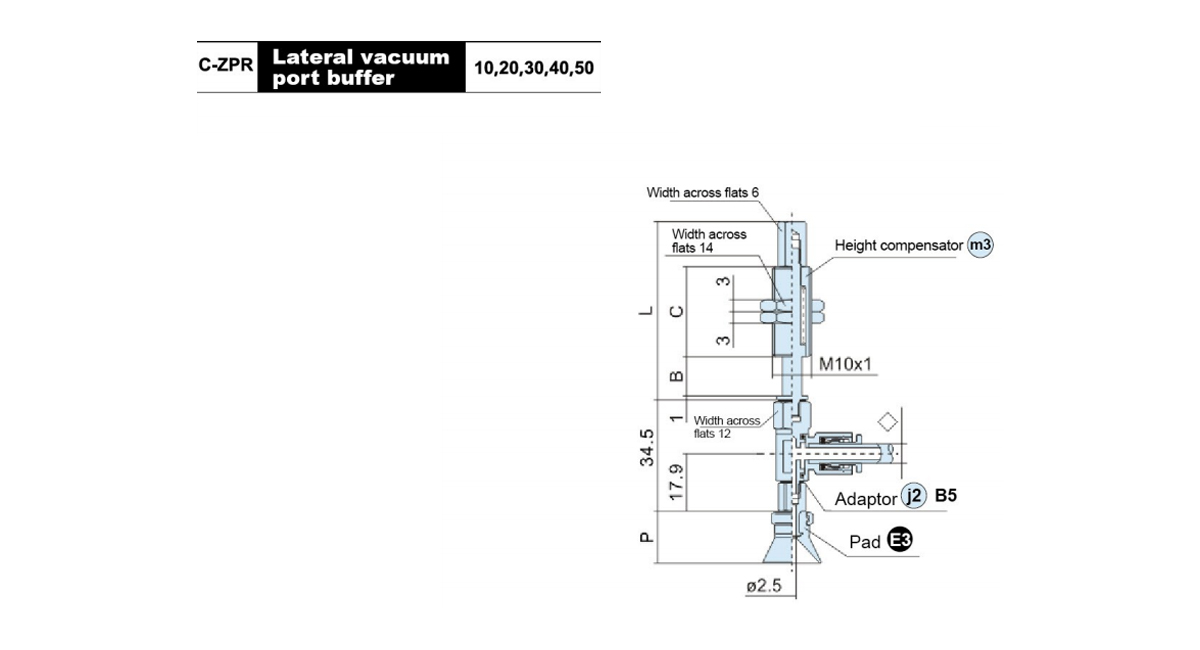

    C-ZPR○D□●10-◇-A10 10 23 45 15 16 ZPR2-●10-◇-A10
    C-ZPR○D□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○D□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○D□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○D□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:10,16
    ◇Vacuum port connection:04,06
    □    Material:NBR(N),Silicone(S)
    ●  Height compensator type:Rotative(J)
    Unable to rotate(K)

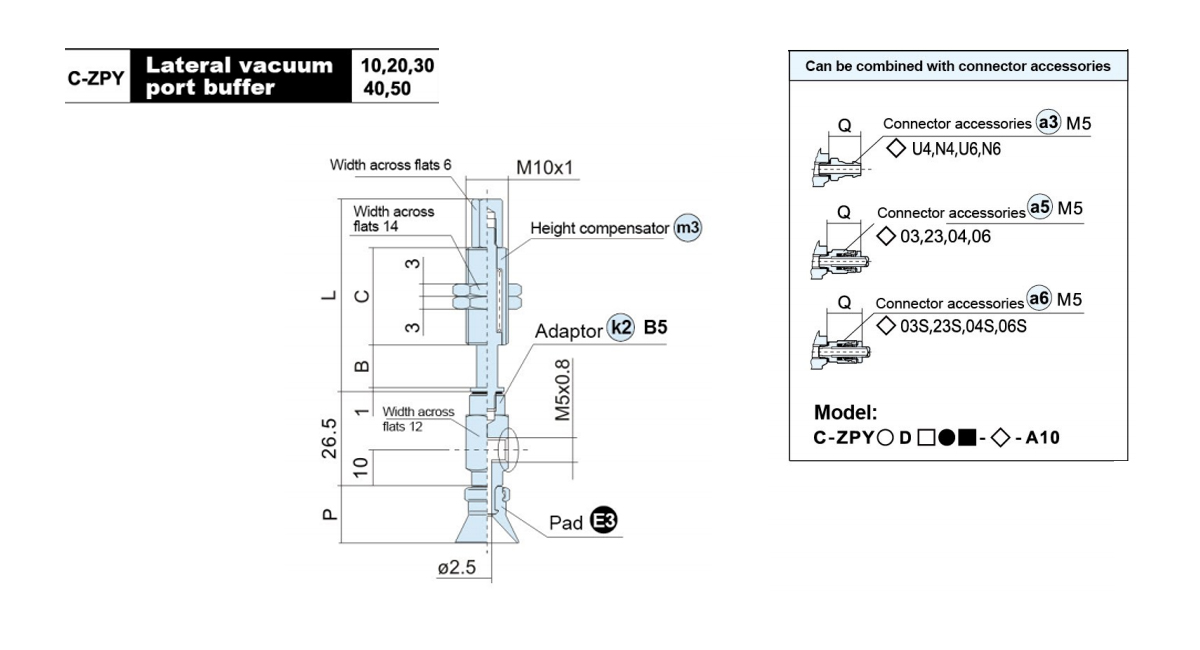

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16

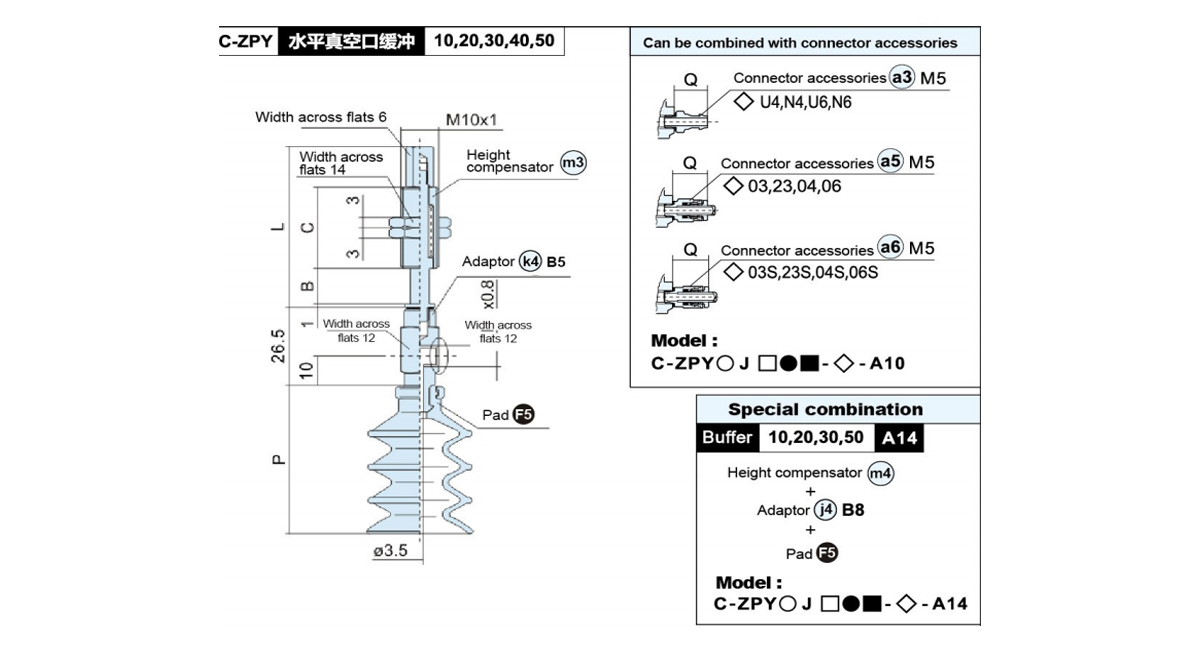

    C-ZPY○D□●10-B5-A10 10 23 45 15 16 ZPY2-●10-B5-A10
    C-ZPY○D□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○D□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○D□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○D□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C D L Adaptor
    Model
    C-ZPT25D□-A6 M6×1.0 5 8 8 31 ZPT3-A6
    C-ZPT25D□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT25D□-A01 - - - - - ZPT3-A01
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPT25D□-B5 M5×0.8 5 ZPT3-B5
    C-ZPT25D□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT25D□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT25D□-B01 Rc1/8 6.2 ZPT3-B01
    □ Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR25D□-◇ -A6 M6×1.0 8 69.5 ZPR3-◇-A6
    C-ZPR25D□-◇ -A8 M8×1.0 12 59.5 ZPR3-◇-A8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

    Model A D Adaptor
    Model
    C-ZPR25D□-◇-B5 M5×0.8 5 ZPR3-◇-B5
    C-ZPR25D□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR25D□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

    Model A B L Adaptor
    Model
    C-ZPY25D□-B5-A6 M6×1.0 8 54 ZPY3-B5-A6
    C-ZPY25D□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPY25D□-B5-B5 M5×0.8 5 ZPY3-B5-B5
    C-ZPY25D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY25D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □ Material:NBR(N),Silicone(S)

    Model B C L m1 i4
    Bumper Support Model

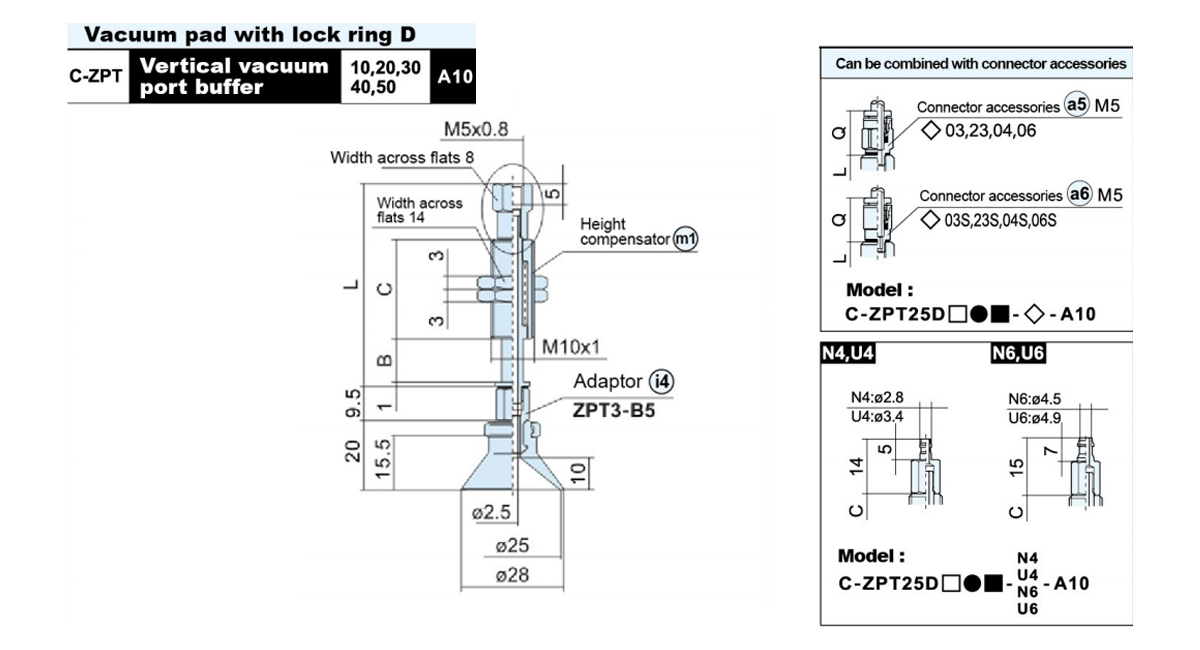

    C-ZPT25D□●10-B5-A10 10 23 47 ZPT3-●10-B5-A10
    C-ZPT25D□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT25D□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT25D□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT25D□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    □Material:NBR(N),Silicone(S)
    ■Buffer  stroke(mm):10,20,30,40,50
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L m2 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A14 10 50 77 ZPT3-●10-B5-A14
    C-ZPT25D□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT25D□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT25D□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT25D□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT25D□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT25D□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT25D□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    □Material:NBR(N),Silicone(S)
    ■Buffer   stroke(mm):10,20,30,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m3 j4
    Bumper Support Model
    C-ZPR25D□●10-◇-A10 10 23 45 ZPR3-●10-◇-A10
    C-ZPR25D□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR25D□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR25D□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR25D□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    □Material:NBR(N),Silicone(S)     ●Height compensator type:Rotative(J)
    ◇Vacuum portconnection:04,06,08                            Unable to rotate(K)

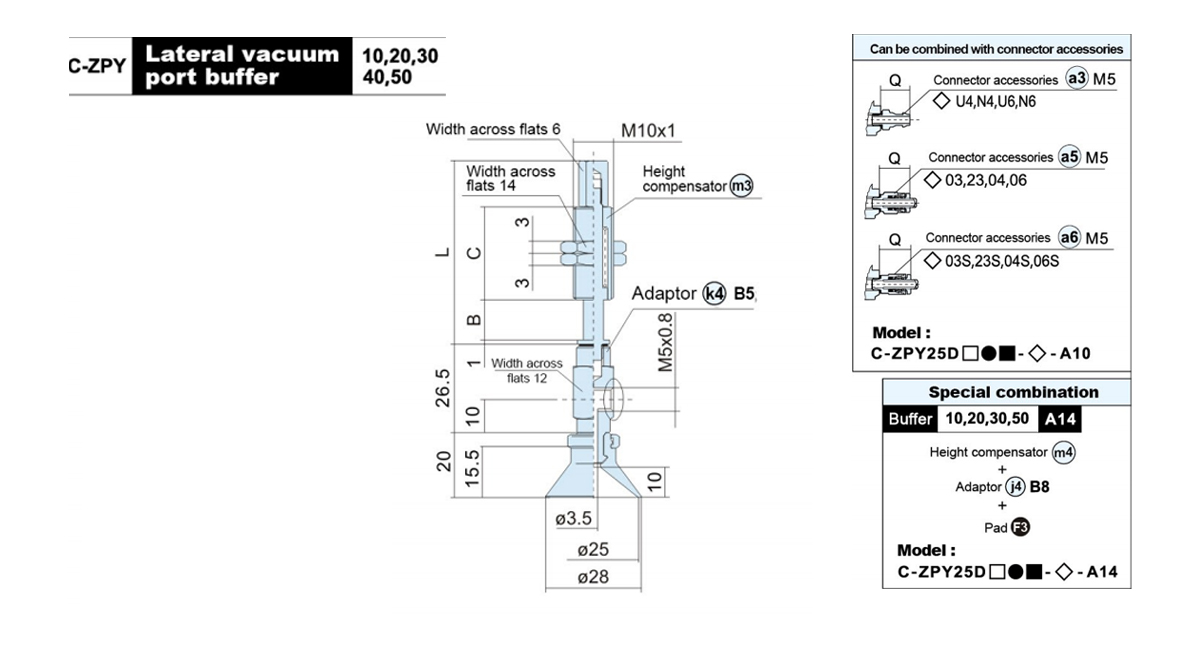

    Model B C L m3 k4 Bumper Support Model
    C-ZPY25D□●10-B5-A10 10 23 45 ZPY3-●10-B5-A10
    C-ZPY25D□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY25D□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY25D□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY25D□●50-B5-A10 50 139 ZPY3-●50-B5-A10

    □Material:NBR(N),Silicone(S)

    ●Height compensator type:Rotative(J)
    ■ Buffer  stroke(mm):10,20,30,40,50                                                   Unable to rotate(K)

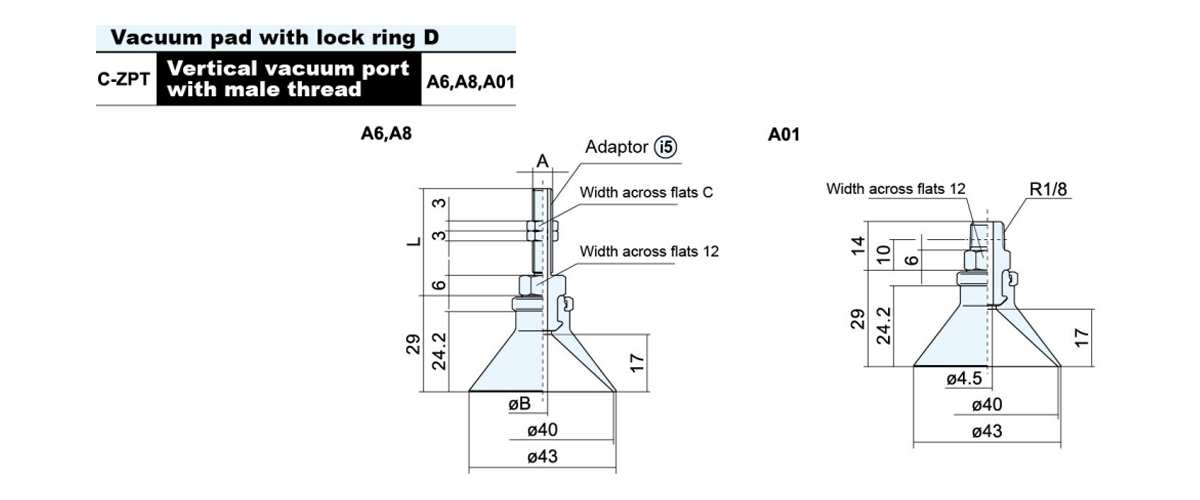

    Model A ØB C L Adaptor
    Model
    C-ZPT40D□-A6 M6×1.0 3.5 8 32 ZPT4-A6
    C-ZPT40D□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT40D□-A01 - - - - ZPT4-A01
    □Material:NBR(N),Silicone(S)

    Model A B C Adaptor
    Model
    C-ZPT40D□-B6 M6×1.0 6 4.5 ZPT4-B6
    C-ZPT40D□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT40D□-B01 Rc1/8 6.2 ZPT4-B01
    □Material:NBR(N),Silicone(S)

    Model A E L Adaptor
    Model
    C-ZPR40D□-◇-A6 M6×1.0 8 68 ZPR4-◇-A6
    C-ZPR40D□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

    Model A D Adaptor
    Model
    C-ZPR40D□-◇-B6 M6×1.0 6 ZPR4-◇-B6
    C-ZPR40D□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

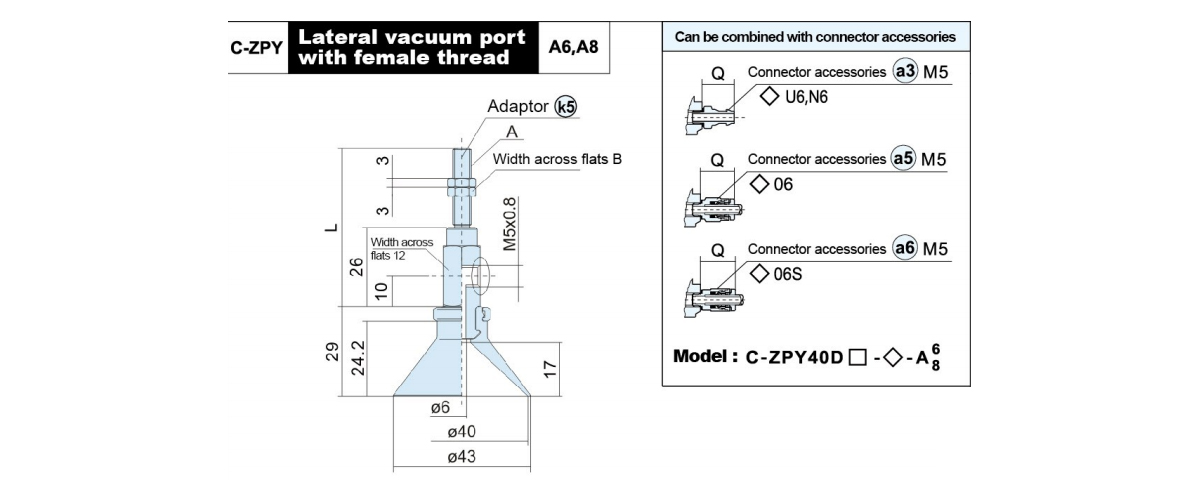

    Model A B L Adaptor
    Model
    C-ZPY40D□-B5-A6 M6×1.0 8 54 ZPY4-B5-A6
    C-ZPY40D□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    □Material:NBR(N),Silicone(S)

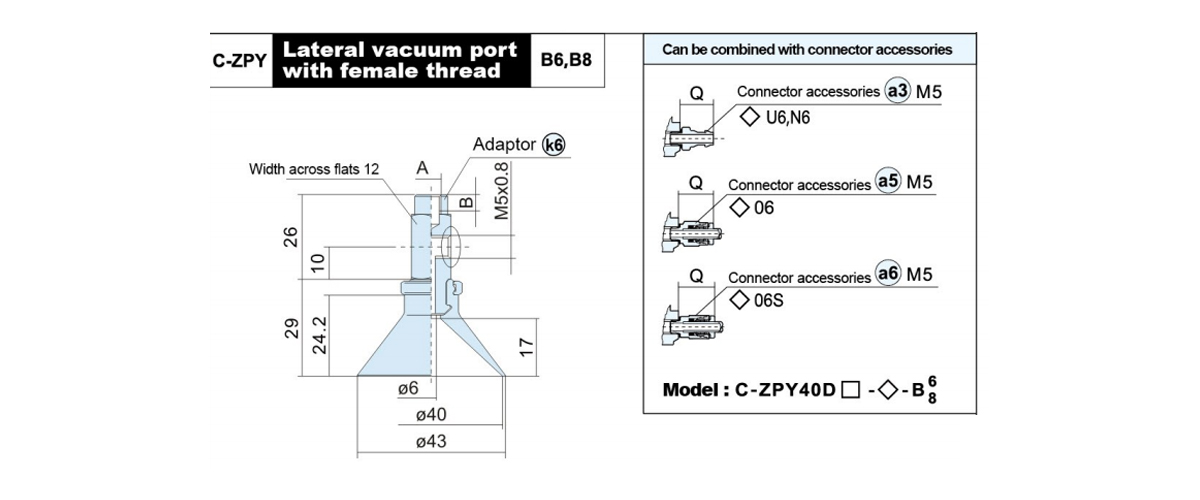

    Model A B Adaptor
    Model
    C-ZPY40D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY40D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □Material:NBR(N),Silicone(S)

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B5-A14 10 50 77 ZPT4-●10-B5-A14
    C-ZPT40D□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT40D□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT40D□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B01-A14 10 50 78.5 ZPT4-●10-B01-A14
    C-ZPT40D□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT40D□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT40D□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

    Model B C L m4 j6
    Bumper Support Model
    C-ZPR40D□●10-◇-A14 10 50 80 ZPR4-●10-◇-A14
    C-ZPR40D□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR40D□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR40D□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

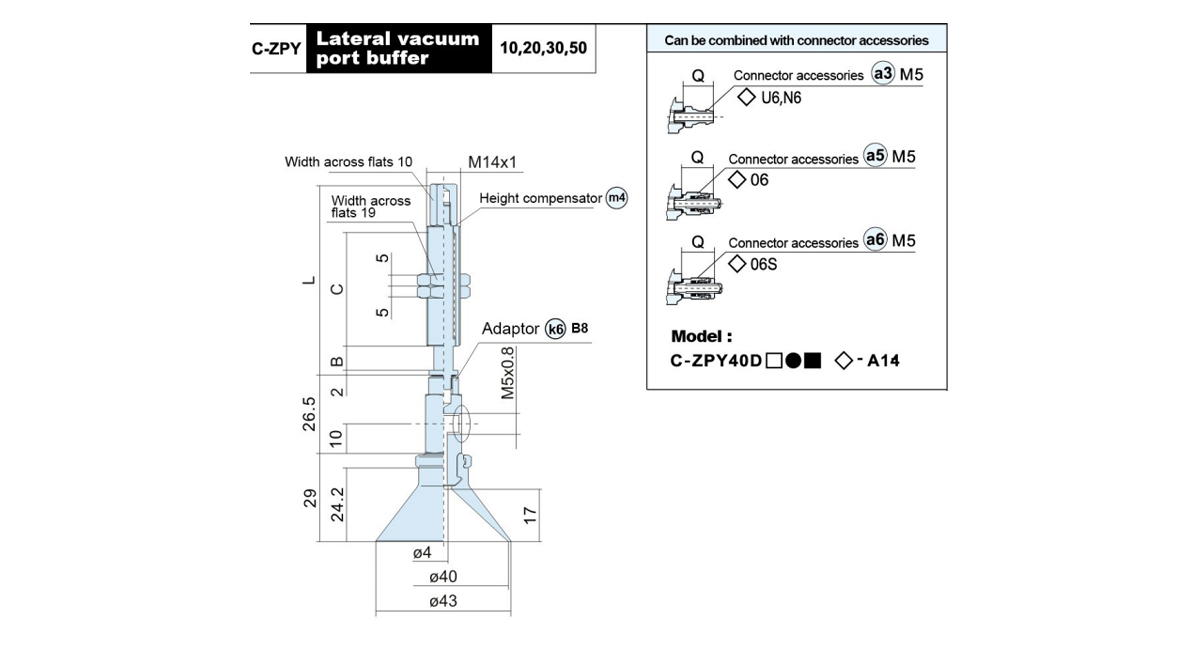

    Model B C L m4 k6
    Bumper Support Model
    C-ZPY40D□●10-◇-A14 10 50 80 ZPY4-●10-◇-A14
    C-ZPY40D□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY40D□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY40D□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-A5 M5×0.8 7 4 26 16 18.5 20 ZPT2-A5
    C-ZPT○B□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○B□-A01 - - - ZPT2-A01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-B5 M5×0.8 5 16 18.5 20 ZPT2-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○B□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

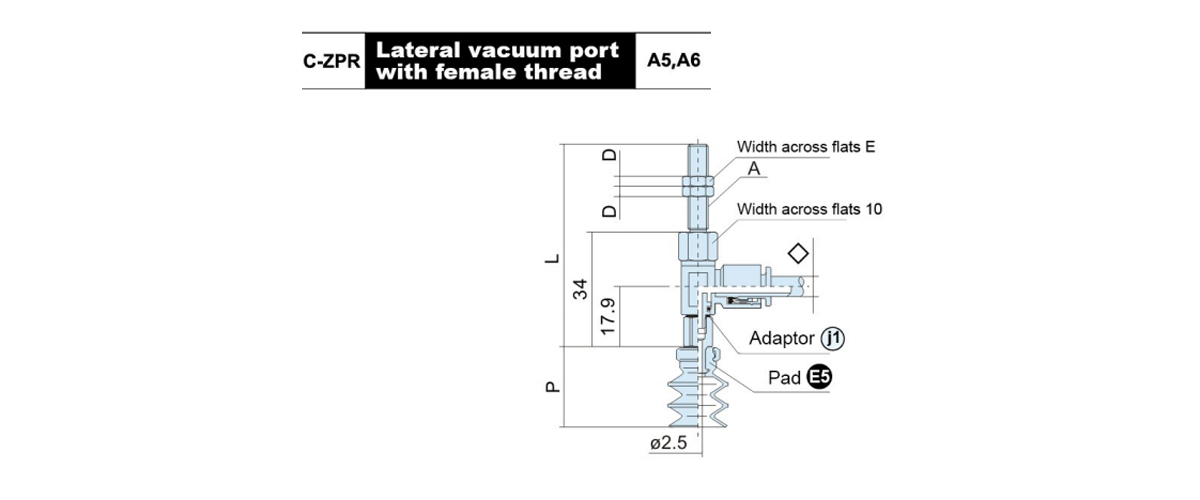

    Model A D E L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-A5 M5×0.8 4 7 55 16 18.5 20 ZPR2-◇-A5
    C-ZPR○B□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

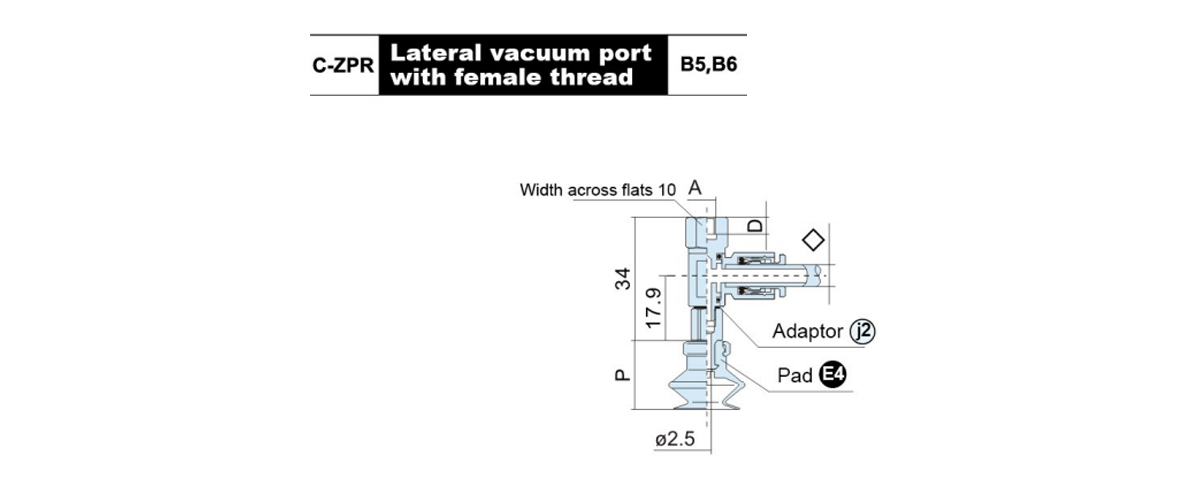

    Model A D ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-B5 M5×0.8 5 16 18.5 20 ZPR2-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-A5 M5×0.8 7 4 47 16 18.5 20 ZPY2-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-B5 M5×0.8 5 16 18.5 20 ZPY2-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□ J10-B5-A10 10 23 47 16 18.5 20 ZPT2-J10-B5-A10
    C-ZPT○ B□ J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○ B□ J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○ B□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○ B□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□K10-B5-A10 10 23 47 16 18.5 20 ZPT2-K10-B5-A10
    C-ZPT○ B□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○ B□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○ B□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○ B□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

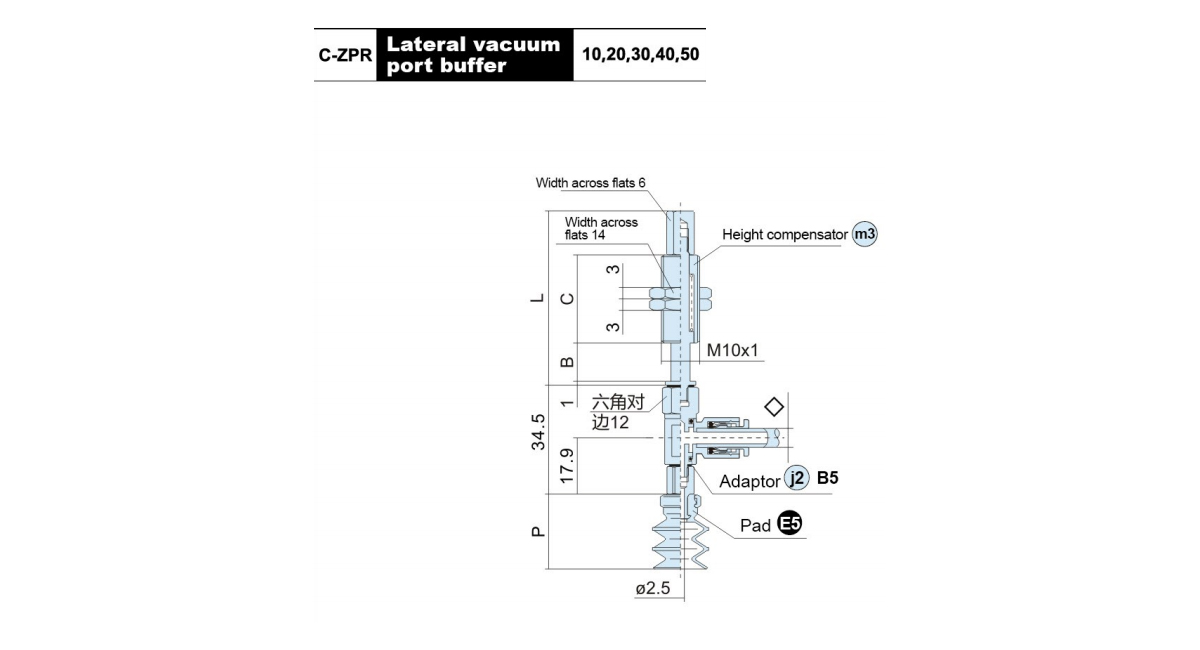

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPR○ B□●10-◇-A10 10 23 45 16 18.5 20 ZPR2-●10-◇-A10
    C-ZPR○ B□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○ B□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○ B□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○ B□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○  Symbol of pad diameter:10,13,16
    ◇Vacuum port connection:04,06
    □ Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

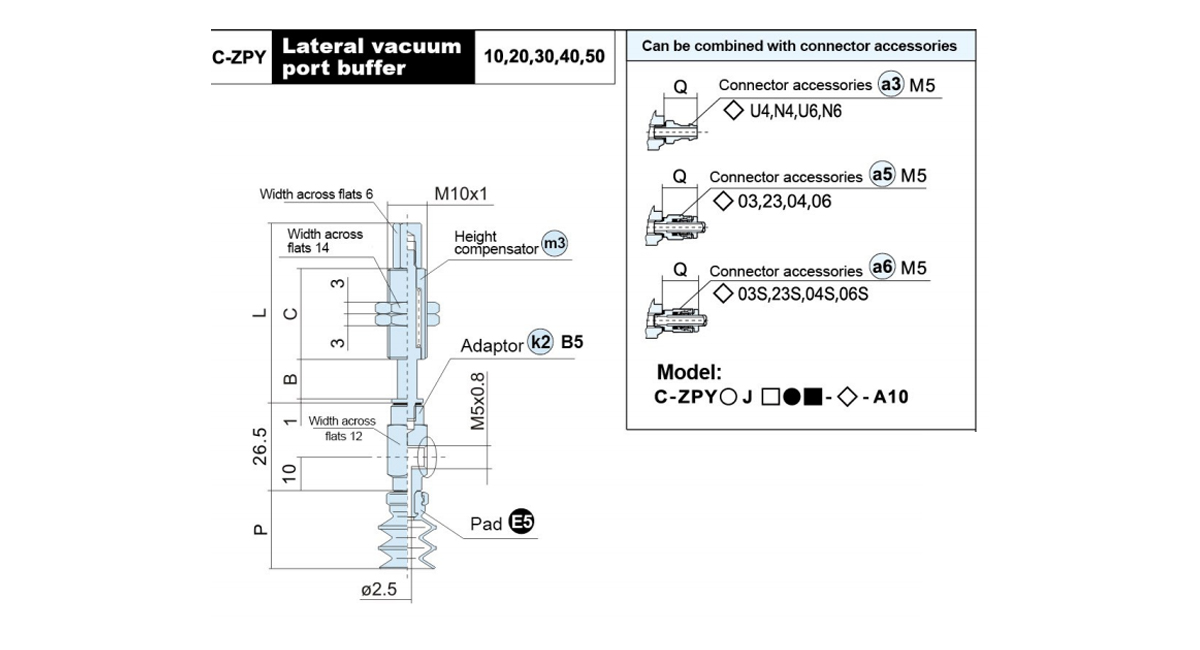

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPY○B□●10-B5-A10 10 23 45 16 18.5 20 ZPY2-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:10,13,16    □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06               Buffer   stroke(mm):10,20,30,40,50

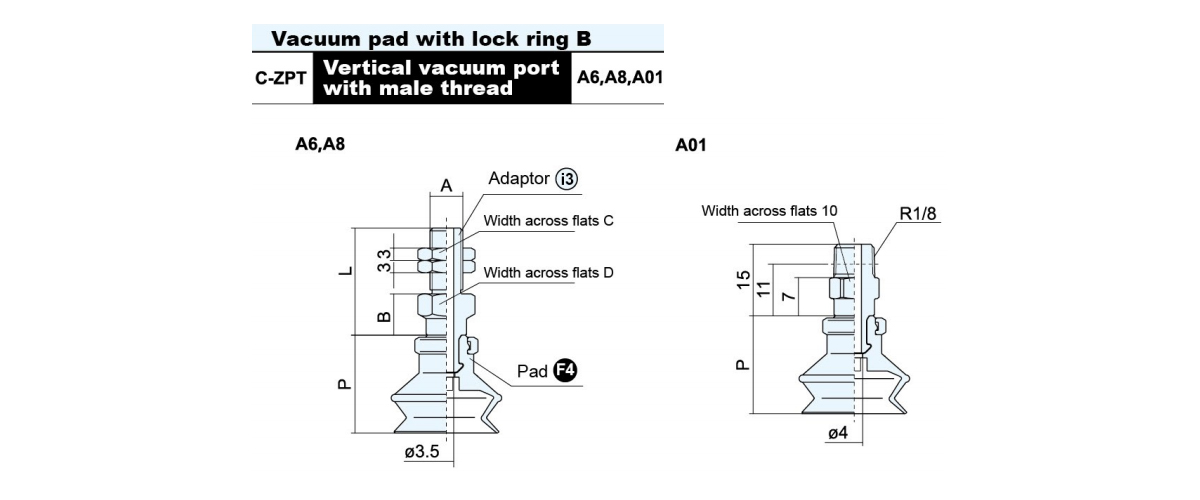

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-A6 M6×1.0 5 8 8 31 23.5 24 29 ZPT3-A6
    C-ZPT○B□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○B□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-B5 M5×0.8 5 23.5 24 29 ZPT3-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○B□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT3-B01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

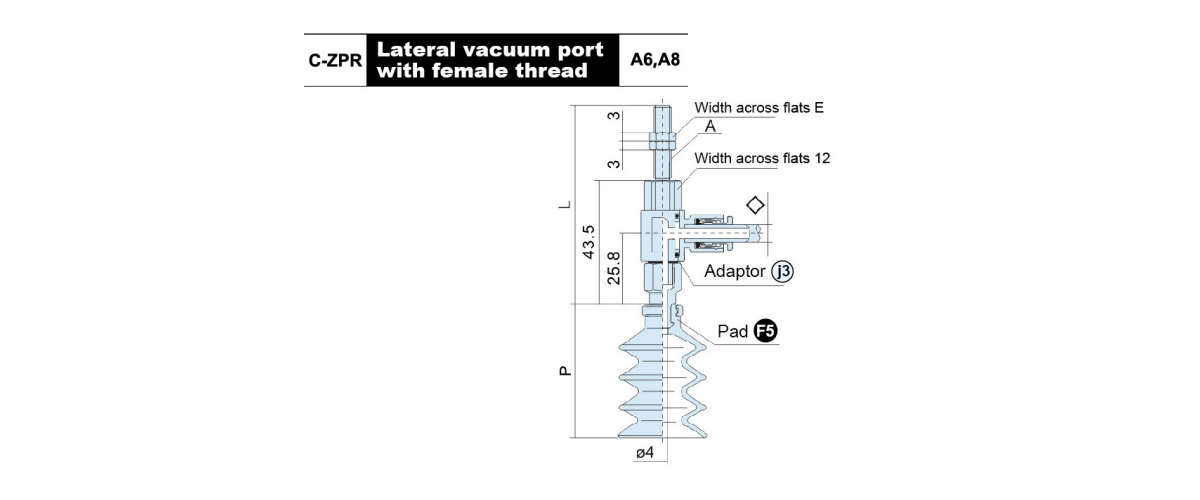

    Model A E L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-A6 M6×1.0 8 69.5 23.5 24 29 ZPR3-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○ Symbol of pad diameter:20,25,32   □  Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-B5 M5×0.8 5 23.5 24 29 ZPR3-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○  Symbol  of  pad  diameter:20,25,32       □ Material:NBR(N),Silicone(S)
    ◇ Vacuum  port  connection:04.06.08

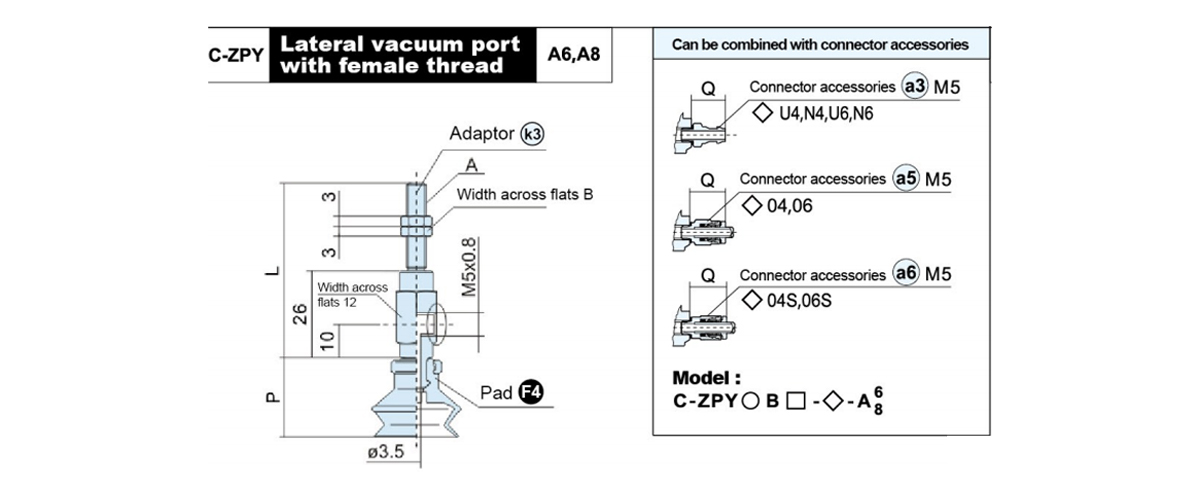

    Model A B L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-A6 M6×1.0 8 54 23.5 24 29 ZPY3-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-B5 M5×0.8 5 23.5 24 29 ZPY3-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A10 10 23 47 23.5 24 29 ZPT3-●10-B5-A10
    C-ZPT○B□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○B□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○B□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○B□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:20,25,32
    ■  Buffer  stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

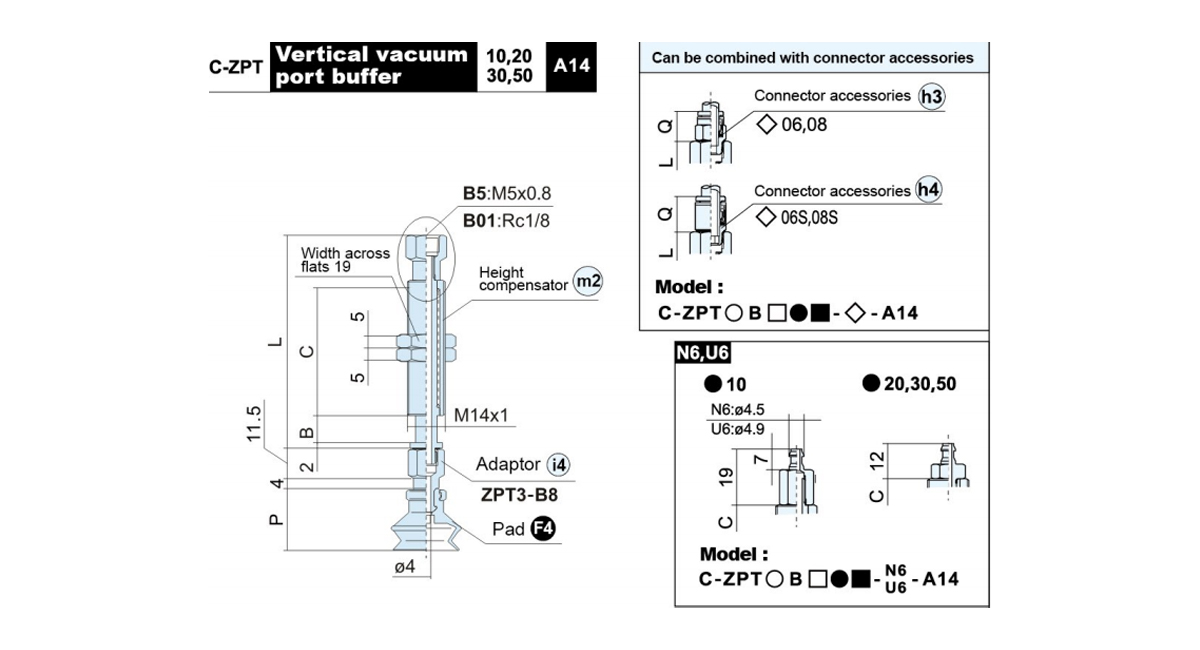

    Model B C L ○Pad diameter P m2 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A14 10 50 77 23.5 24 29 ZPT3-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○B□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:20,25,32
    ■ Buffer stroke(mm):10,20,30,40,50
    □        Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter m3 j4
    Bumper Support Model
    20 25 32
    C-ZPR○B□O10-◇-A10 10 23 45 23.5 24 29 ZPR3-●10-◇-A10
    C-ZPR○B□● 20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○B□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○B□● 40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○B□● 50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○ Symbol of pad diameter:20,25,32
    ◇ Vacuum
    port connection:04,06,08
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)  Unable to rotate(K)

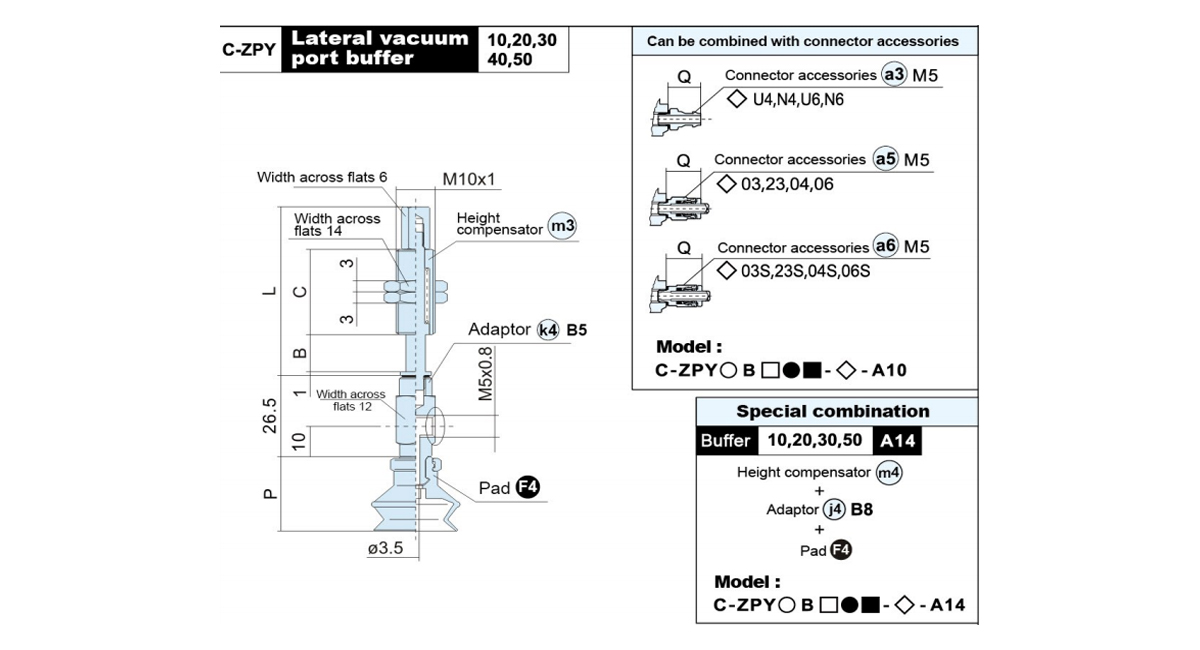

    Model B C L ○ Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○B□●10-B5-A10 10 23 45 23.5 24 29 ZPY3-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol  of  pad  diameter:20,25,32
    □  Material:NBR(N),Silicone(S)
    ■  Buffer   stroke(mm):10,20,30,40,50    ●Height   compensator   type:Rotative(J) Unable to rotate(K)

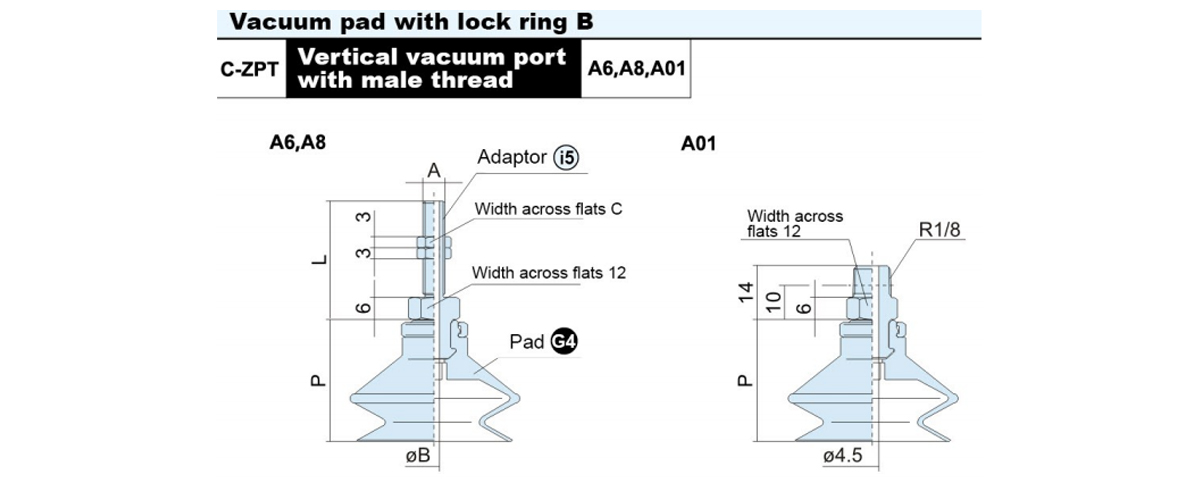

    Model A ØB C L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○B□-A6 M6×1.0 3.5 8 32 34 38 ZPT4-A6
    C-ZPT○B□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○B□-A01 - - - ZPT4-A01
    ○ Symbol of pad diameter:40,50       □ Material:NBR(N),Silicone(S)

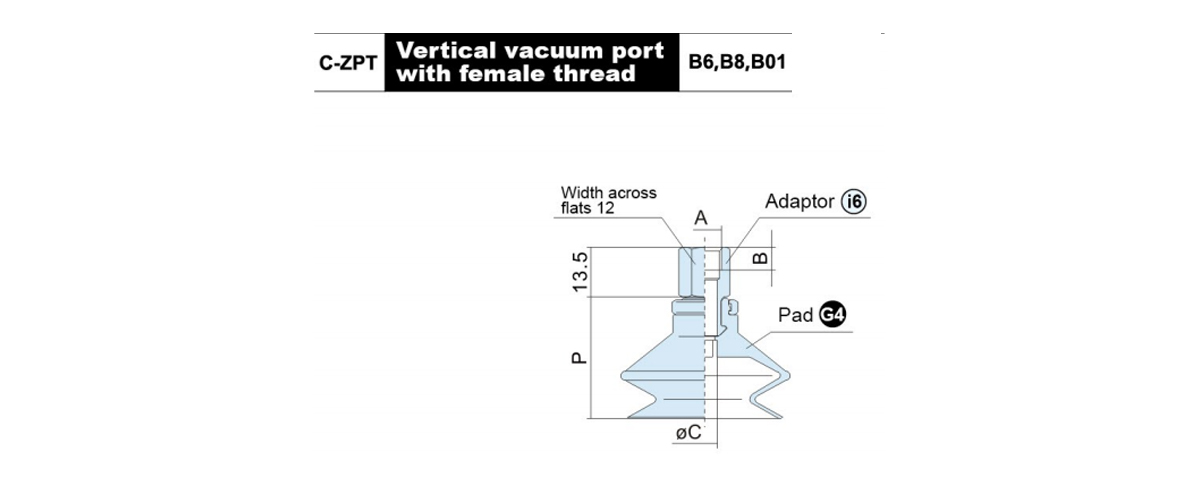

    Model A B oC ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○OB□-B6 M6×1.0 6 4.5 34 38 ZPT4-B6
    C-ZPT○B□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT4-B01
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇ -A6 M6×1.0 8 68 34 38 ZPR4-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇-B6 M6×1.0 6 34 38 ZPR4-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○ Symbol of pad dameter:40,50       □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

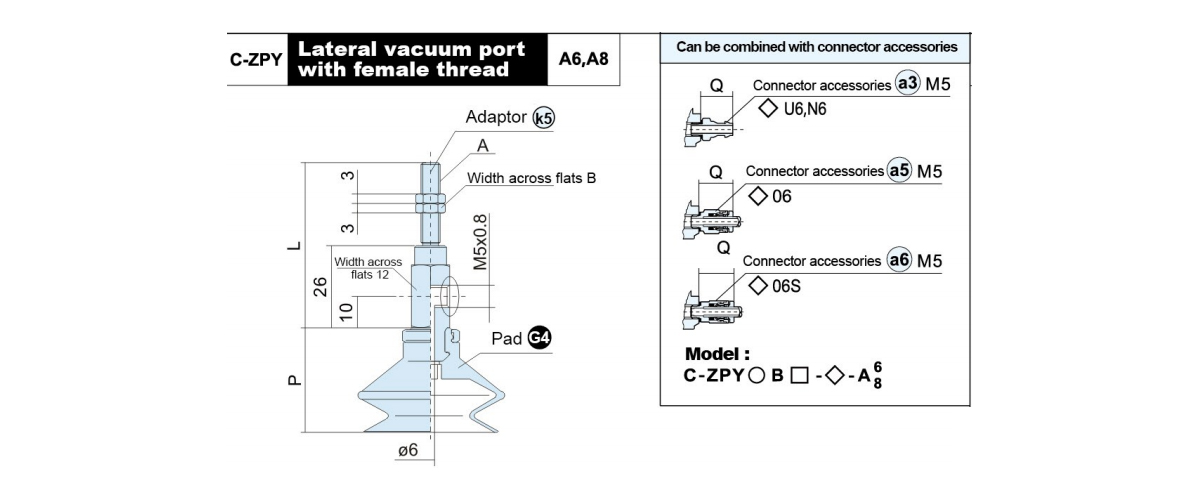

    Model A B L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-A6 M6×1.0 8 54 34 38 ZPY4-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter  P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-B6 M6×1.0 6 34 38 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B5-A14 10 50 77 34 38 ZPT4-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B01-A14 10 50 78.5 34 38 ZPT4-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○B□●10-◇-A14 10 50 80 34 38 ZPR4-●10-◇-A14
    C-ZPR○B□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○B□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○B□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ◇Vacuum port connection:06,08
    □ Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J) Unable to rotate(K)

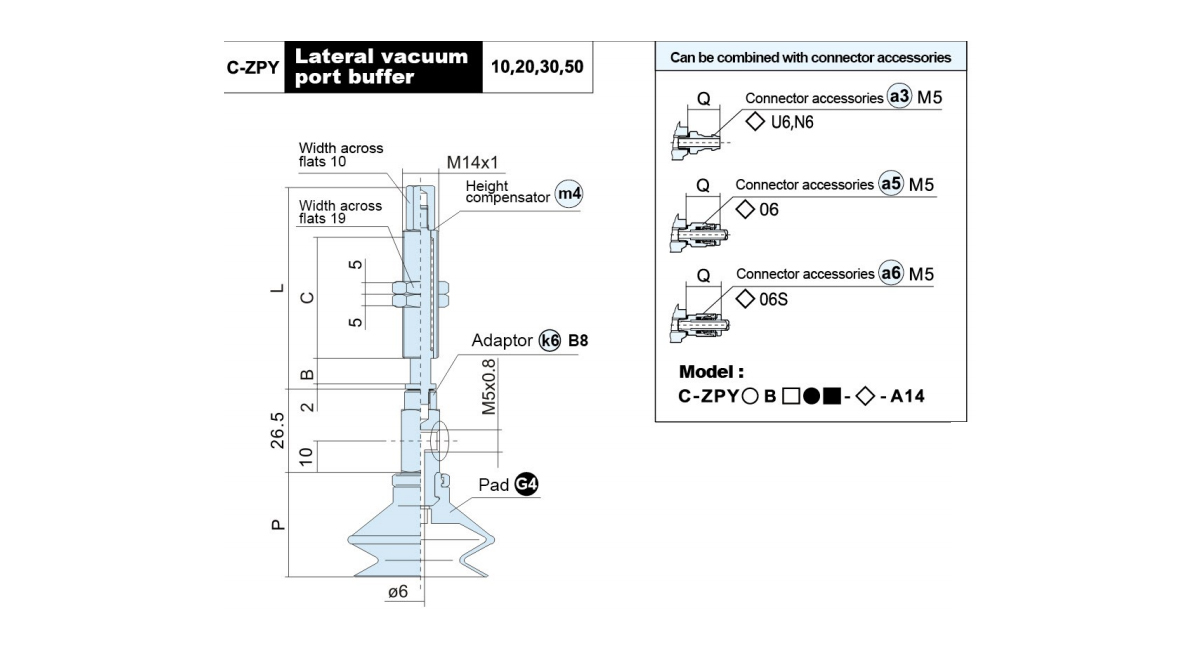

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○B□●10-◇-A14 10 50 80 34 38 ZPY4-●10-◇-A14
    C-ZPY○B□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○B□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○B□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○  Symbo  of  pad  diameter:40,50
    □  Material:NBR(N),Silicone(S)
    ■  Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J) Unable to rotate(K)

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-A5 M5×0.8 7 4 26 18 24 24 ZPT2-A5
    C-ZPT○J□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○J□-A01 - - - - ZPT2-A01
    ○ Symbol of pad diameter:09,14,16       □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-B5 M5×0.8 5 18 24 24 ZPT2-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○J□-B01 - - ZPT2-B01
    ○ Symbol of pad diameter:09,14,16         □ Material:NBR(N),Silicone(S)

    Model A D E L O Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-A5 M5×0.8 4 7 55 18 24 24 ZPR2-◇-A5
    C-ZPR○J□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-B5 M5×0.8 5 18 24 24 ZPR2-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-A5 M5×0.8 7 4 47 18 24 24 ZPY2-B5-A5
    C-ZPY○J□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

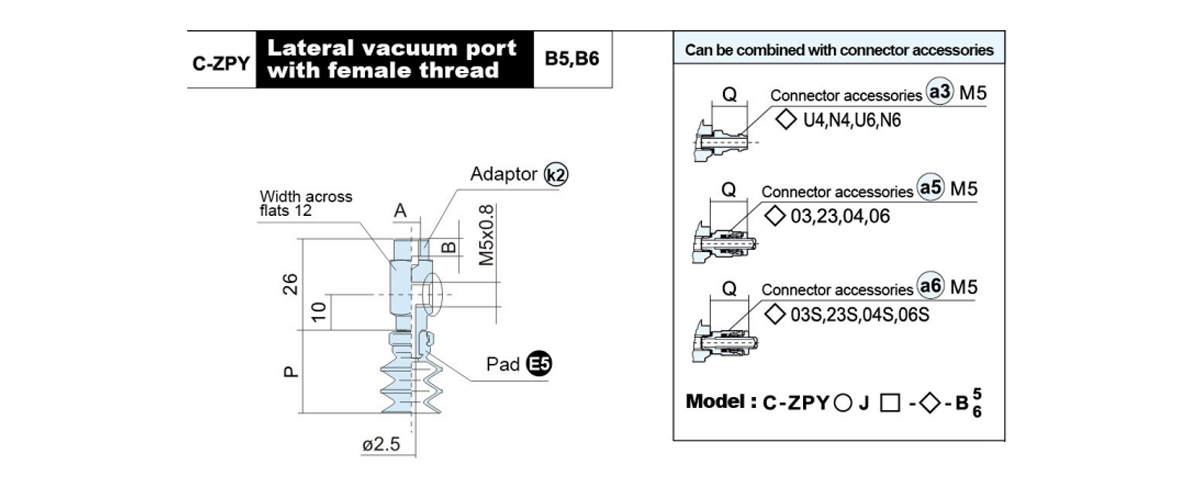

    Model A B ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-B5 M5×0.8 5 18 24 24 ZPY2-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□J10-B5-A10 10 23 47 18 24 24 ZPT2-J10-B5-A10
    C-ZPT○J□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○J□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○J□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○J□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□K10-B5-A10 10 23 47 18 24 24 ZPT2-K10-B5-A10
    C-ZPT○J□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○J□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○J□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○J□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPR○J□●10-◇-A10 10 23 45 18 24 24 ZPR2-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:09,14,16
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J)   Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPY○J□●10-B5-A10 10 23 45 18 24 40 ZPY2-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:09,14,16
    ◇Vacuum   port   connection:04,06
    □  Material:NBR(N),Silicone(S)
    ■   Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-A6 M6×1.0 5 8 8 31 42.5 44.5 ZPT3-A6
    C-ZPT○J□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○J□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-B5 M5×0.8 5 42.5 44.5 ZPT3-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○J□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○J□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:25,30             □ Material:NBR(N),Silicone(S)

    Model A E L ○.Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-A6 M6×1.0 8 69.5 42.5 44.5 ZPR3-◇-A6
    C-ZPR○J□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:25,30        □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A D ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-B5 M5×0.8 5 42.5 44.5 ZPR3-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○J□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○ Symbol of pad diameter:25,30            □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A B L ○ Pad  Diameter       P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-A6 M6×1.0 8 54 42.5 44.5 ZPY3-B5-A6
    C-ZPY○J□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-B5 M5×0.8 5 42.5 44.5 ZPY3-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○J□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A10 10 23 47 42.5 44.5 ZPT3-●10-B5-A10
    C-ZPT○J□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○J□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○J□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○J□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:25,30
    □ Buffer stroke(mm):10,20,30,40,50
    ■ Material:NBR(N),Silicone(S)
    ● Height    compensator    type:Rotative(J)  Unable   to   rotate(K)

    Model B C L ○ Pad Diameter P m2 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A14 10 50 77 42.5 44.5 ZPT3-●10-B5-A14
    C-ZPT○J□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○J□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○J□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○J□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○J□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○J□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○J□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:25,30
    ■ Buffer stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Slicone(S)
    ●  Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter     P m3 j4
    Bumper Support Model
    25 30
    C-ZPR○J□●10-◇-A10 10 23 45 42.5 44.5 ZPR3-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○  Symbol  of  pad  diameter:25,30         □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06,08    ●   Height   compensator  type:Rotative(J) Unable  to  rotate(K)

    Model B C L ○ Pad Diameter     P m3 k4
    Bumper Support Model
    25 30
    C-ZPY○J□●10-B5-A10 10 23 45 42.5 44.5 ZPY3-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol of pad diameter:25,30
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J) Unable to rotate(K)

Produtos Relacionados

Blog e Notícias

Nossas Últimas Notícias e
Blog

Ver Mais

Qualidade Autêntica e Confiável se Destaca Naturalmente.

A escolha vem da confiança, e a cooperação vem da honestidade.

  • Q: Em quanto tempo poderemos obter uma resposta depois de lhe enviarmos uma consulta?

    Responderemos dentro de 24 horas após receber a consulta em dias úteis.

  • Q: Você é um fabricante direto ou uma empresa comercial?

    Somos fabricantes e temos departamento próprio de vendas internacionais. Assim, podemos produzir e vender sozinhos.

  • Q: Você pode fazer produtos personalizados?

    Sim, podemos desenvolver e produzir produtos de acordo com desenhos ou amostras fornecidas pelos clientes.

  • Q: Como sua empresa garante a qualidade do produto?

    Em primeiro lugar, faremos a inspeção após cada processo. Para os produtos acabados, faremos 100% de inspeção de acordo com as necessidades dos clientes e o padrão internacional.

  • Q: Para onde seus produtos são exportados principalmente?

    Nossos produtos são exportados principalmente para Alemanha, Estados Unidos, Dinamarca e mais de uma dúzia de países na Europa e América do Norte
